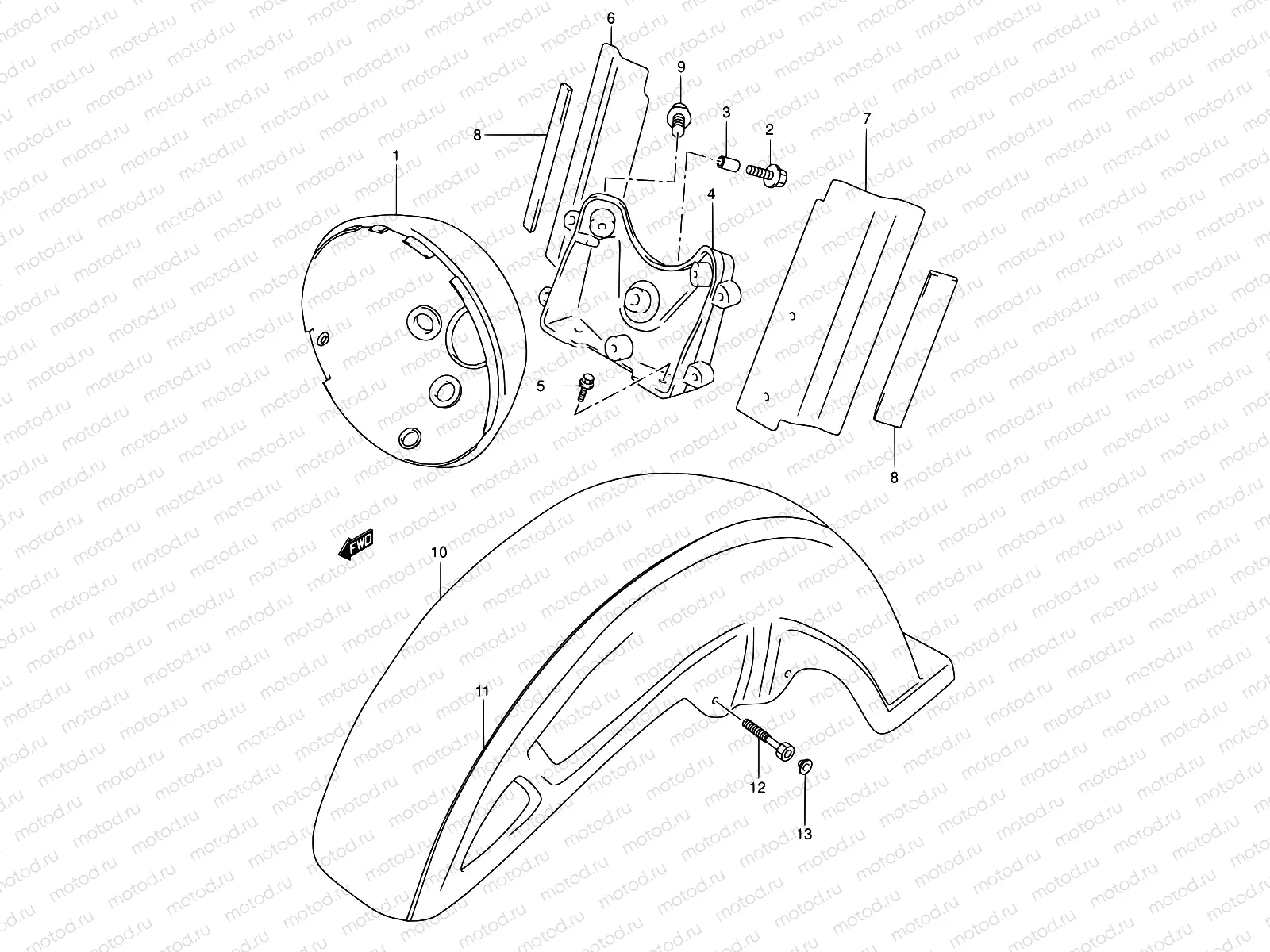

43 - FRONT FENDER (MODEL W/X)

43 - FRONT FENDER (MODEL W/X)
Например: 51810-10F00
1
51810-10F00
Корпус фары
33 660 ₽/шт
2
09116-06147
Болт копрусный
162 ₽/шт
3
09180-06076
Кольцо/шайба
1 680 ₽/шт
4
51850-10F01
BRACKET,HEADLAMP HOUSING
12 629 ₽/шт
5
01550-0616B
БОЛТ
81 ₽/шт
6
51871-10F00
Plate,headlamp
7
51881-10F00
Plate,headlamp
8
33651-37000
PROTECTOR(170X95X3.0)
468 ₽/шт
9
09139-06027
Винт (6х12)
194 ₽/шт
10
53110-10F01-13L
ender,fr
68 442 ₽/шт
10
53110-10F01-K7D
ront mudguard
10
53110-10F11-K7E
ront mudguard
10
53110-10F01-K7F
ront mudguard
11
68150-10F00-K7W
Tape set,fender
11
68150-10F00-K7Y
Tape set,fender
11
68150-10F00-K8A
Tape set,fender
11
68150-10F00-K8B
.tape set
11
68150-10F00-M5M
Tape set,fender
11
68150-10F00-M5N
Tape set,fender
12
07130-08457
Болт
146 ₽/шт
13
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
