Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 H SUZUKI 52 - REAR SWINGING ARM

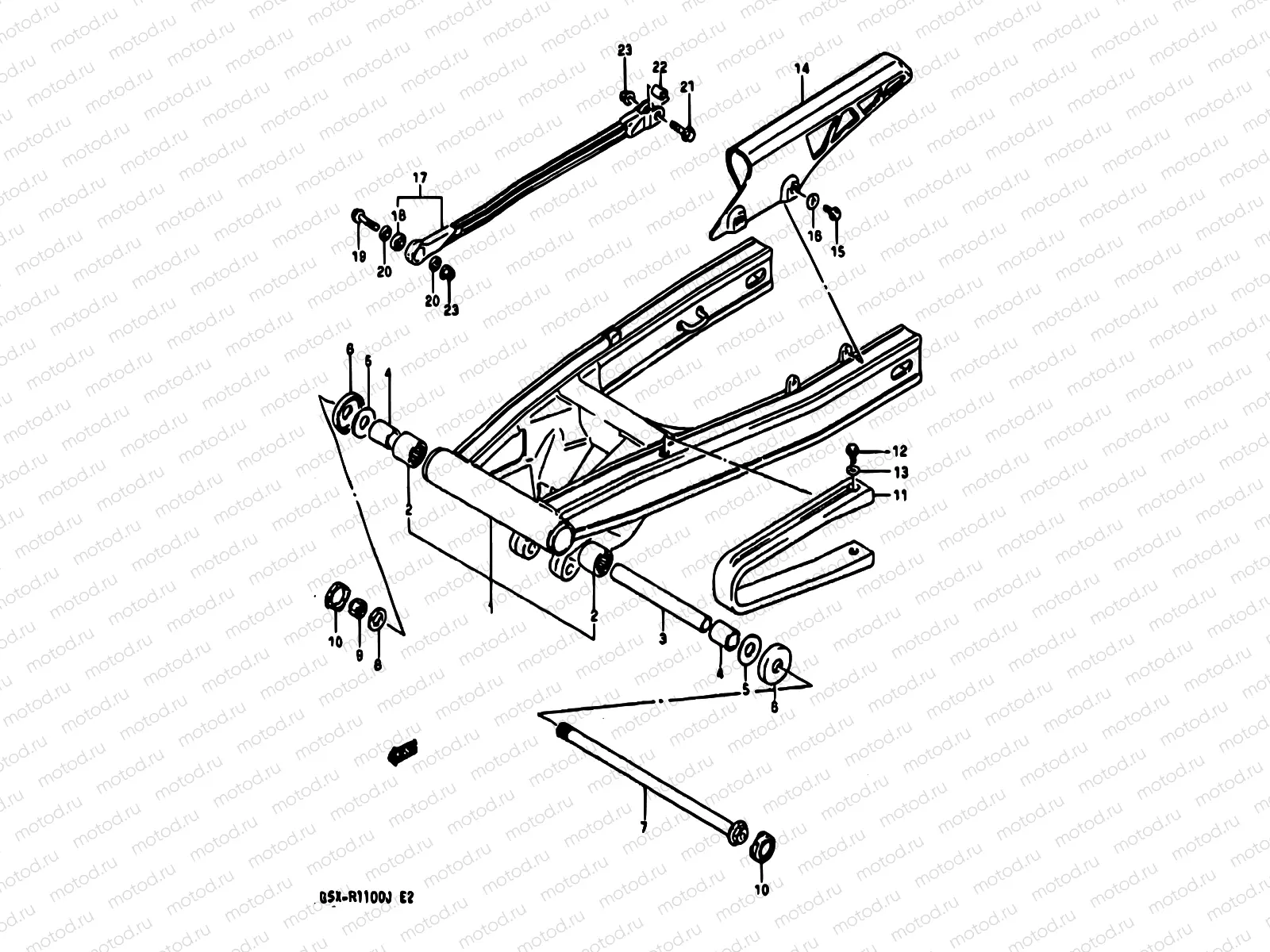

52 - REAR SWINGING ARM

52 - REAR SWINGING ARM
Например: 61000-06B01
1
61000-06B01
Swinging arm assy,rear
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
61282-06B0V
4
61251-49000
SPACER,RR SWGARM PIVOT
2 072 ₽/шт
5
08211-16381
WASHER
1 410 ₽/шт
6
61262-49202
Cover,rr Swingingarm Pivot
1 207 ₽/шт
7
61211-06B00
Shaft,rr swinga
8
09160-14015
WASHER(14X27X3)
2 660 ₽/шт
9
09159-14019
Гайка
7 080 ₽/шт
10
61222-43400
CAP,SWINGINGARM PIVOT
422 ₽/шт
11
61273-06B00
Guard chain sliding shoe
12
01550-06207
БОЛТ
85 ₽/шт
13
09169-06071
Шайба
97 ₽/шт
14
61310-27A01
Корпус натяжения
4 692 ₽/шт
15
01550-0610B
Болт
85 ₽/шт
16
09169-06026
Пластина замка
119 ₽/шт
17
64300-06841
18
64352-40401
Roulement
19
09103-08142
BOLT(8X35)
1 760 ₽/шт
20
64339-40411
Seal,bearing Dust
318 ₽/шт
21
09103-08142
BOLT(8X35)
1 760 ₽/шт
22
64336-20A00
Spacer
23
08319-31087
Гайка
178 ₽/шт
