Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 H SUZUKI 32 - STAND

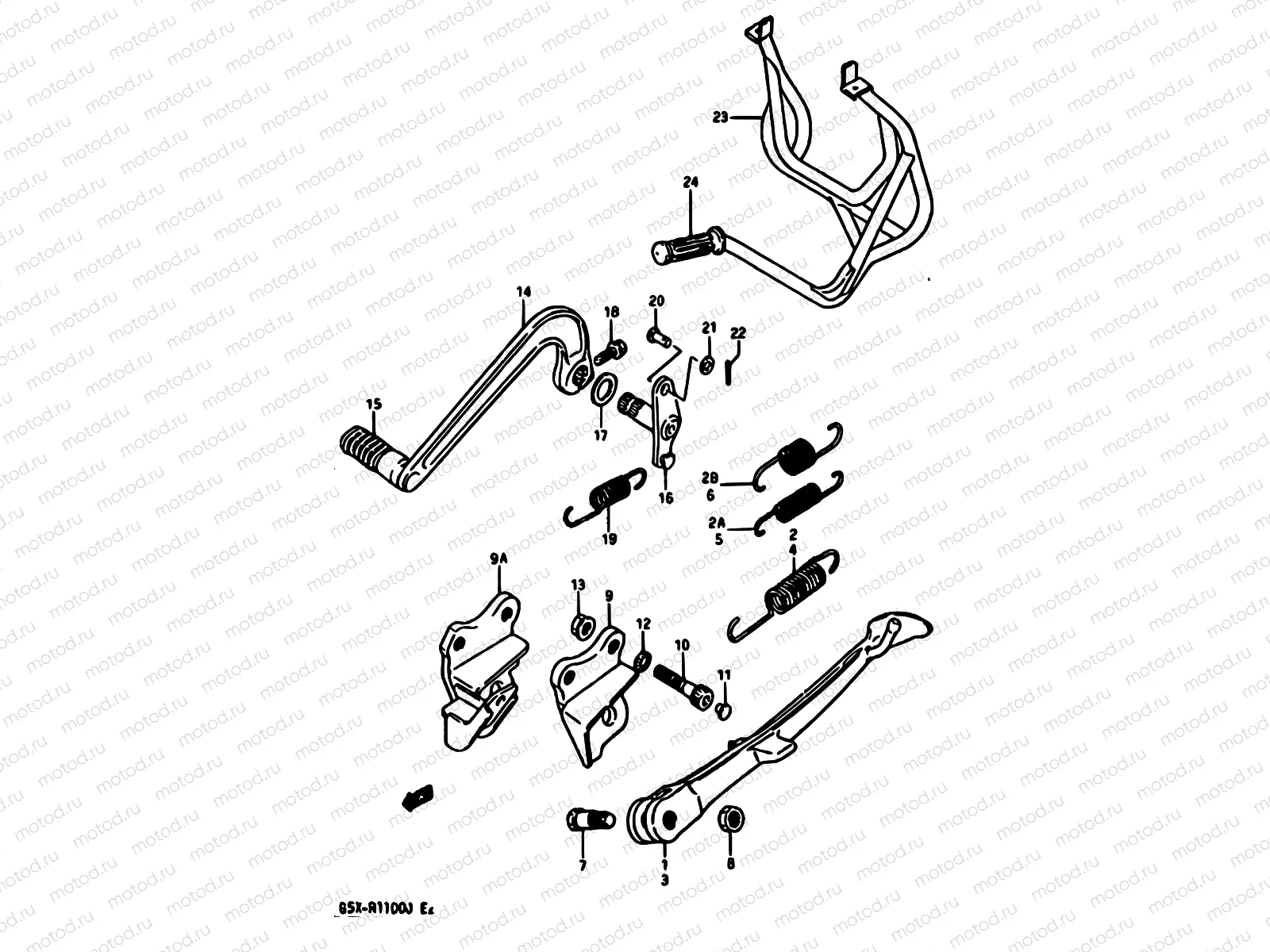

32 - STAND

32 - STAND

Например: 42310-06B00-13L

1

42310-06B00-13L

PROP STAND

2

09443-14040-XC0

Пружина

3 830 ₽/шт

3

42310-06B10-13L

Stand,prop (silver)

3

42310-06B20-13L

Stand,prop (silver)

3

42310-06B40-13L

Stand,prop (silver)

3

42310-06B50-13L

Stand,prop (silver)

4

09443-18016

Пружина

5 000 ₽/шт

5

09443-14030-XC0

Пружина

4 070 ₽/шт

6

09443-22003

SPRING

4 070 ₽/шт

7

09111-10036

BOLT(10X38)

2 820 ₽/шт

8

08310-00107

Гайка

85 ₽/шт

9

42330-27A11-13L

Bracket,prop stand (silver)

9

42330-06B20

racket,prop stand

9

42330-27B10

racket,prop stand

10

07130-08357

Болт

153 ₽/шт

11

41575-04A00

Cap,engine mtg

12

09164-08015

Шайба

162 ₽/шт

13

08316-10087

ГАЙКА

82 ₽/шт

14

43110-05C03

PEDAL,BRAKE

10 831 ₽/шт

15

43151-04701

RUBBER,BRAKE PEDAL

1 309 ₽/шт

16

43120-27A00

rm,brake rod

17

43212-04A00

WASHER,BRAKE PEDAL

137 ₽/шт

18

09103-06119

Vis

19

09443-14044-XC0

Пружина

3 130 ₽/шт

20

09200-06068

Вал ручки

226 ₽/шт

21

08322-0106A

Шайба

81 ₽/шт

22

04111-2015A

Штифт

81 ₽/шт

23

42100-27A00

Stand assy,rear

24

57211-49510

Зажим дросселя

970 ₽/шт
