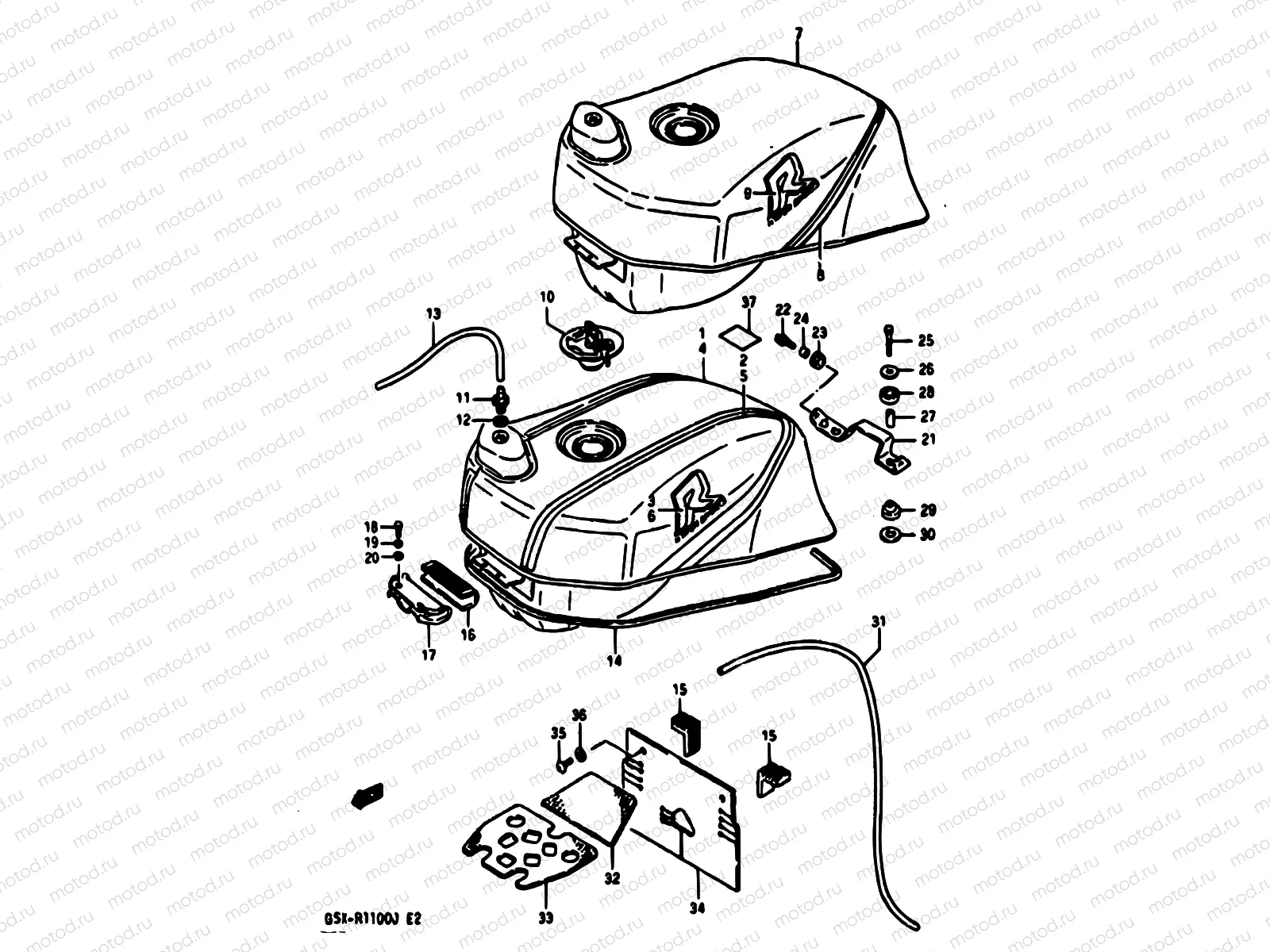

34 - FUEL TANK (MODEL G/H)

34 - FUEL TANK (MODEL G/H)

Например: 44110-06BV0-13L

1

44110-06BV0-13L

4

44110-06BV0-13L

5

68110-06B11-8KA

.tape set,fuel tank

5

68110-06B11-8KB

.tape set,fuel tank

6

68111-27A00-8SP

Emblem

7

44110-06BV0-13L

8

68110-27A40-9HU

.tape set,fuel tank

8

68110-27A40-9HT

.tape set,fuel tank

9

68111-27A00-8SP

Emblem

9

68111-27A00-9HJ

.emblem

10

44200-20841

Cap assy

11

44240-06B10

PLUG,FUEL TANK BREATHER

2 678 ₽/шт

12

09168-12012

Прокладка (12.5X20X2.5)

119 ₽/шт

13

09352-50005-600

ШЛАНГ

436 ₽/шт

14

68241-04X50-00B

MOLDING

1 696 ₽/шт

15

44545-27A10

Cushion,fuel ta

16

44511-27A10

Cushion

17

44521-27A00

Bracket,f.tank

18

09118-06086

Болт 6X25

1 680 ₽/шт

19

08321-0106A

Шайба

81 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

45211-06B00

racket,seat support

22

09118-06087-XC0

BOLT.6X20

23

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

24

09180-06038

ВТУЛКА

1 020 ₽/шт

25

01500-0635B

Болт

81 ₽/шт

26

09160-06501

Шайба

102 ₽/шт

27

09180-06271

Кольцо/шайба

172 ₽/шт

28

09320-14017

CUSHION

114 ₽/шт

29

09160-12088

WASHER(12.5X24X1.6)

1 560 ₽/шт

30

09320-10038

CUSHION

115 ₽/шт

31

09352-50005-600

ШЛАНГ

436 ₽/шт

32

47166-03D00

Heat shield,fra

33

44192-27A01

34

44194-06B00

Heat shield,rear

35

02142-0620B

Болт

1 060 ₽/шт

36

09160-06084

Шайба 6.5X18X1

81 ₽/шт

37

86932-73060

Ярлык топлива

162 ₽/шт
