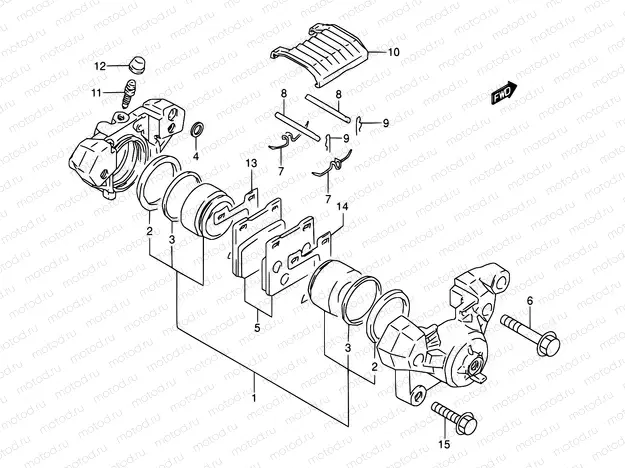

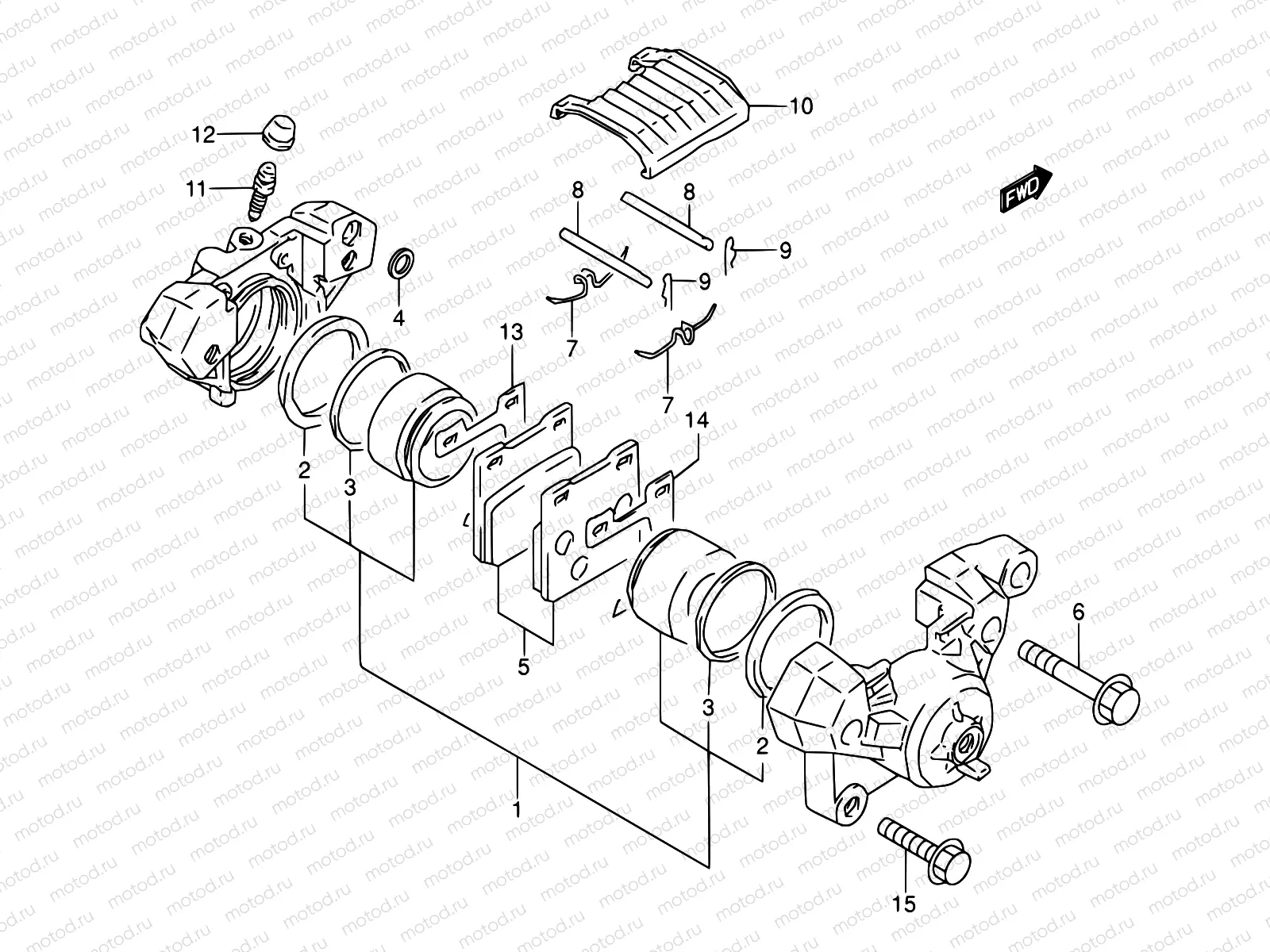

51A - REAR CALIPER (MODEL P/R/S/T)

51A - REAR CALIPER (MODEL P/R/S/T)
Например: 69100-01D04-999
0
69100-01D04-999
CALIPER ASSY,RR
31 085 ₽/шт
0
69100-20820
1
69100-05851
PISTON SET
15 895 ₽/шт
2
69107-05CF0
Уплотнение поршня
493 ₽/шт
3
69108-32B00
SEAL,WIPER
1 126 ₽/шт
4
69107-34200
SEAL,JOINT
1 785 ₽/шт
5
69100-20810
PAD SET
6 021 ₽/шт
6
59145-16700
BOLT,HOUSING
504 ₽/шт
7
59143-16700
Пружина
272 ₽/шт
8
69141-45000
PIN,PAD
318 ₽/шт
9
69142-45000
CLIP,PAD PIN
275 ₽/шт
10
59151-16701
COVER
1 590 ₽/шт
11
59121-18410
BLEEDER
759 ₽/шт
12
55156-66310
CAP,BLEEDER PLUG
221 ₽/шт
13
59371-20C00
SHIM,INNER
935 ₽/шт
14
59381-20C00
SHIM,OUTER
935 ₽/шт
15
01550-0830B
Болт
113 ₽/шт
