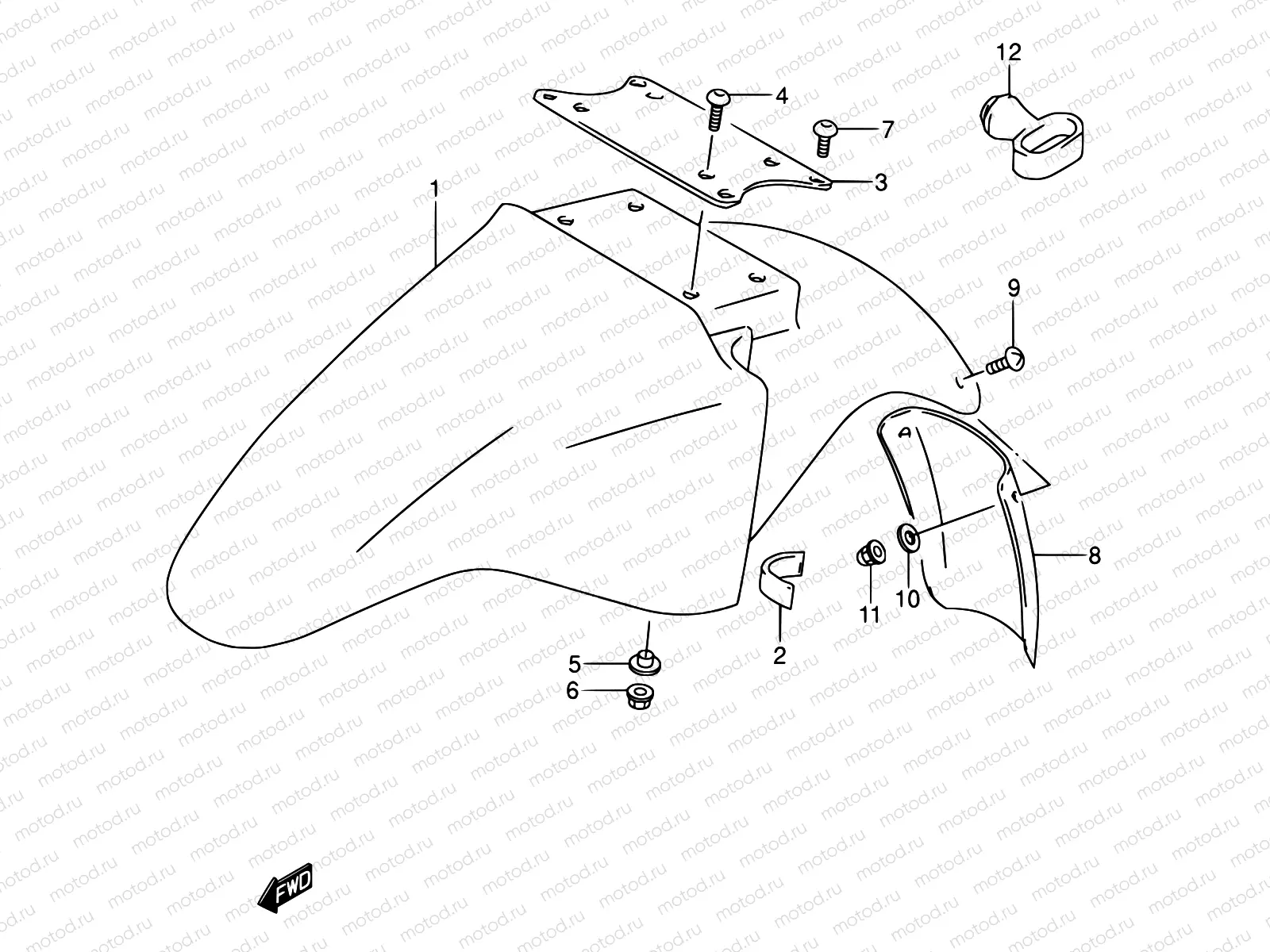

37A - FRONT FENDER (MODEL T)

37A - FRONT FENDER (MODEL T)
Например: 53111-01D40-NE2
1
53111-01D40-NE2
Front mudguard (Black NE2)
1
53111-01D13-YAY
Front mudguard
1
53111-01D13-1ZV
FENDER,FR
18 182 ₽/шт
2
53145-30B00
CUSHION,FR FENDER
199 ₽/шт
3
53114-01D00
BRACE,FR FENDER
1 830 ₽/шт
4
09139-05042
Винт 5X16
119 ₽/шт
5
09169-05010
Шайба
1 370 ₽/шт
6
09159-05043
Гайка
1 290 ₽/шт
7
09139-06027
Винт (6х12)
194 ₽/шт
8
53311-01D01
MUDGUARD,FR FENDER
3 284 ₽/шт
9
02142-05127
Болт
85 ₽/шт
10
09160-05501
Шайба (5.5X20X1.2)
81 ₽/шт
11
08313-2005A
Гайка
82 ₽/шт
12
58621-21204
Направляющая кабеля
824 ₽/шт
