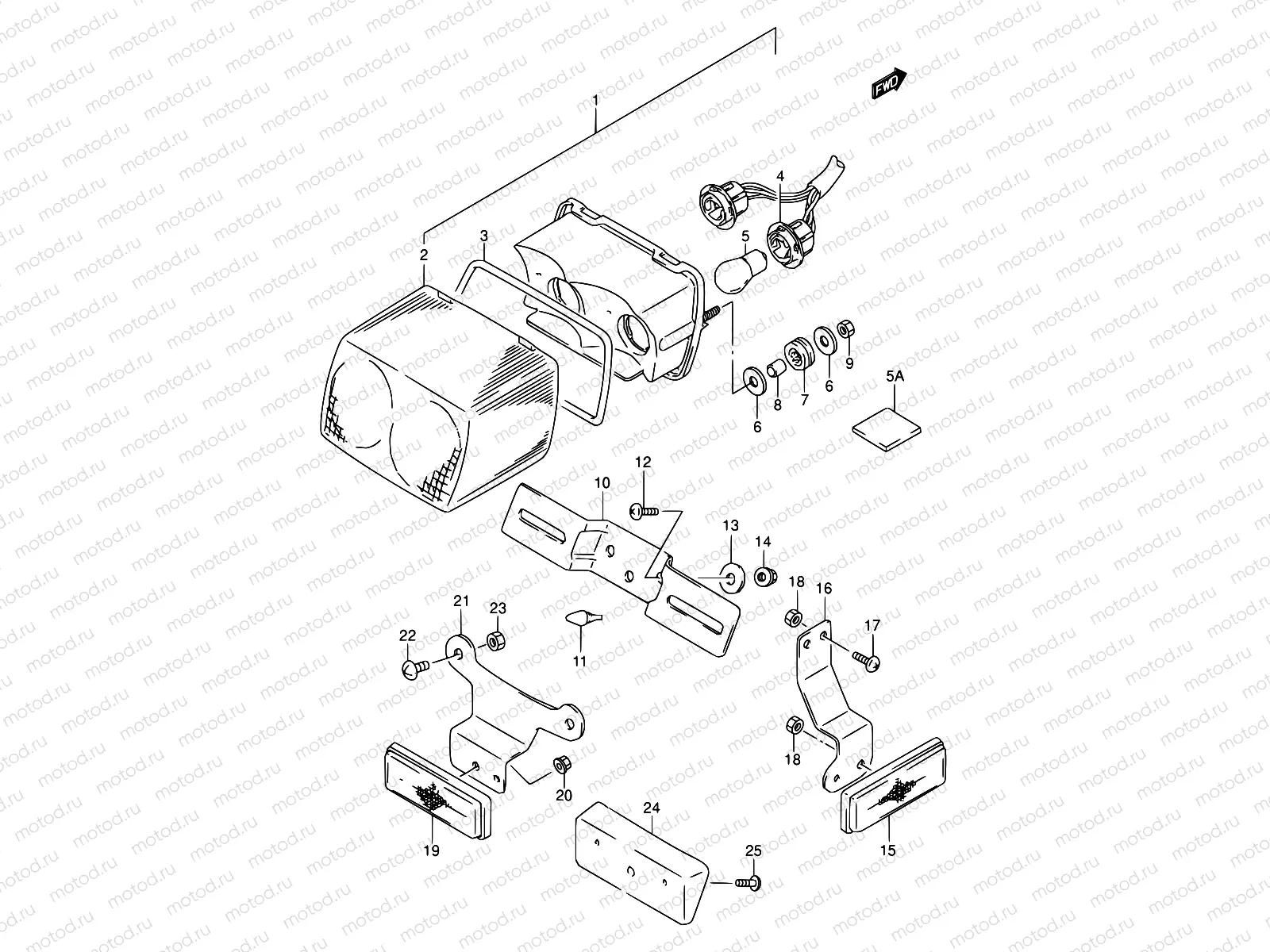

27A - REAR COMBINATION LAMP (MODEL T)

27A - REAR COMBINATION LAMP (MODEL T)
Например: 35710-12D00
1
35710-12D00
Taillight assy.
2
35712-01D00
Линза
3 988 ₽/шт
3
35713-01D00
Прокладка
540 ₽/шт
4
35718-12D00
SOCKET
2 933 ₽/шт
5
40503-00838-069
P21/5w,5w, bay1 (12V 21/5W BAY15d)
5
35733-10D00
ZITTING
6
09160-06077
Шайба (6.5X20X1.2)
102 ₽/шт
7
09320-09009
РЕЗИНКА
187 ₽/шт
8
09180-06262
Кольцо/шайба
162 ₽/шт
9
08310-0006B
Гайка
81 ₽/шт
10
35927-00A10
Кронштейн
708 ₽/шт
11
09321-06030
CUSHION
188 ₽/шт
12
02142-0616A
Болт
81 ₽/шт
13
09160-06077
Шайба (6.5X20X1.2)
102 ₽/шт
14
08310-0006B
Гайка
81 ₽/шт
15
35950-43431
REFLEX REFLECTOR,FR SIDE
1 343 ₽/шт
16
35977-01D11
BRACKET,RR SIDE REFLECTOR
477 ₽/шт
17
02142-0512A
Болт
85 ₽/шт
18
08310-0005B
Гайка
1 370 ₽/шт
19
35970-24D60
REFLECTOR ASSY,RR
1 479 ₽/шт
20
08310-0005B
Гайка
1 370 ₽/шт
20
08316-1005B
Гайка
1 520 ₽/шт
21
35974-01D00
BRACKET,RR RR
352 ₽/шт
22
02142-0612B
Винт
81 ₽/шт
23
08310-0006B
Гайка
81 ₽/шт
24
35977-12C00
Spacer
25
03541-0412A
ШАЙБА
85 ₽/шт
