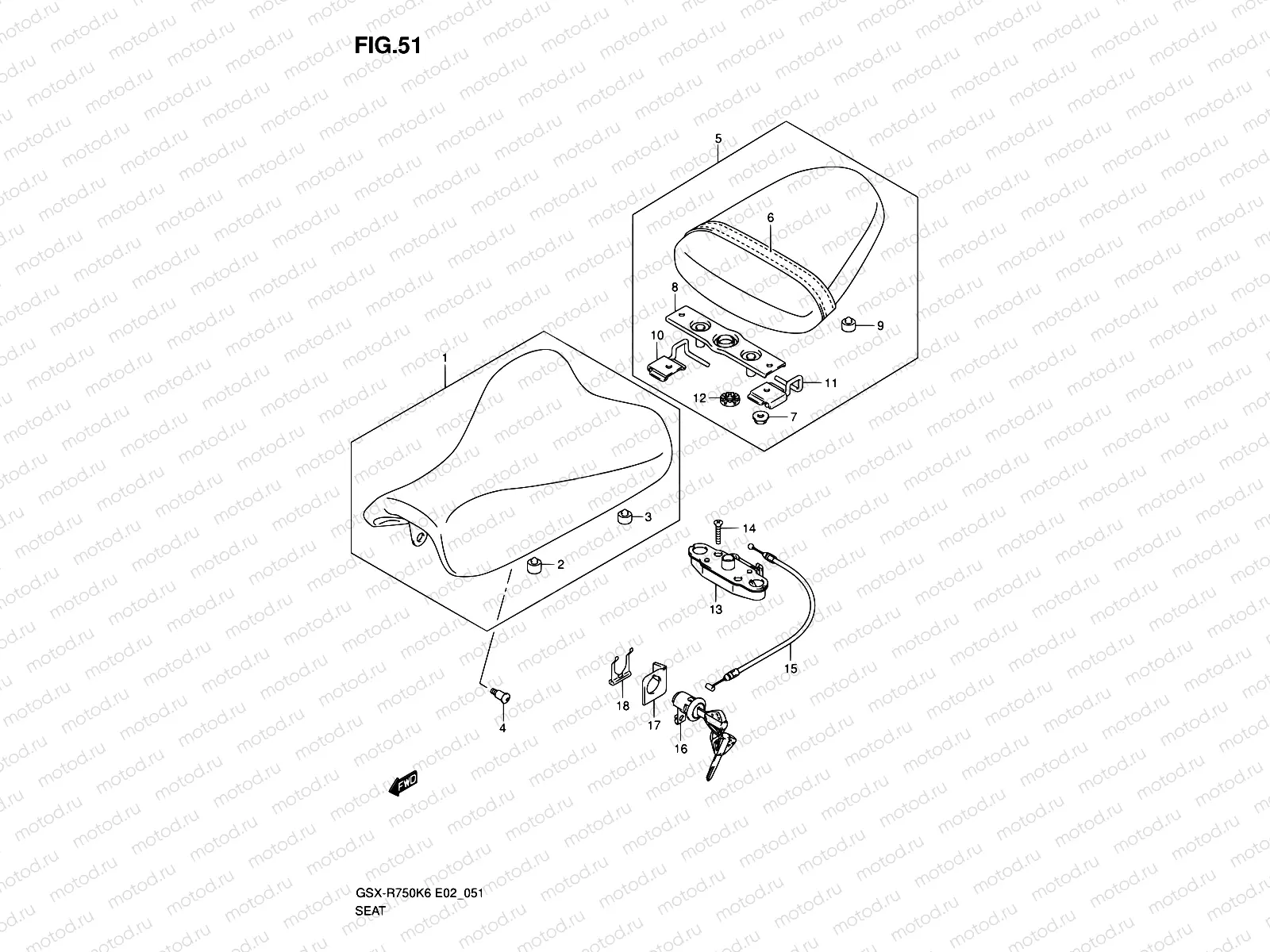

Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 K7 (E02,E19,E24,P37) SUZUKI (VIN: JS1CF111) 51 - SEAT (GSX-R750K6 E02,E19,E24,P37/K7 E02,E19,E24)

51 - SEAT (GSX-R750K6 E02,E19,E24,P37/K7 E02,E19,E24)

51 - SEAT (GSX-R750K6 E02,E19,E24,P37/K7 E02,E19,E24)

Например: 45100-01H01-6BY

1

45100-01H01-6BY

Seat Assy

12 512 ₽/шт

2

09321-10039

CUSHION

549 ₽/шт

3

09321-10011

САЙЛЕНТБЛОК

162 ₽/шт

4

09139-06146

Винт

162 ₽/шт

5

45300-01H01-6BY

Seat Assy,pillion

23 265 ₽/шт

6

45180-01H00

Band assy

7

08319-3106B

Гайка

1 490 ₽/шт

8

45290-18G01

STRIKER,SEAT LOCK

2 678 ₽/шт

9

09321-10011

САЙЛЕНТБЛОК

162 ₽/шт

10

45315-01H00

OLDER,HELMET,R

1 677 ₽/шт

11

45316-01H00

OLDER,HELMET,L

1 677 ₽/шт

12

45213-31300

CUSHION

170 ₽/шт

13

45220-47H00

BRACKET,SEAT SUPPORT

7 390 ₽/шт

14

02122-0630A

ШАЙБА

72 ₽/шт

15

45280-38400

Кабель замка

782 ₽/шт

16

95700-14810

ЗАМОК ВМЕСТЕ С КЛЮЧАМИ

4 522 ₽/шт

17

45288-14F10

GUIDE,SEAT LOCK CABLE

622 ₽/шт

18

45289-11F00

PLATE SEAT LOCK ASSY

275 ₽/шт
