Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 K7 (E02,E19,E24,P37) SUZUKI (VIN: JS1CF111) 14 - AIR CLEANER

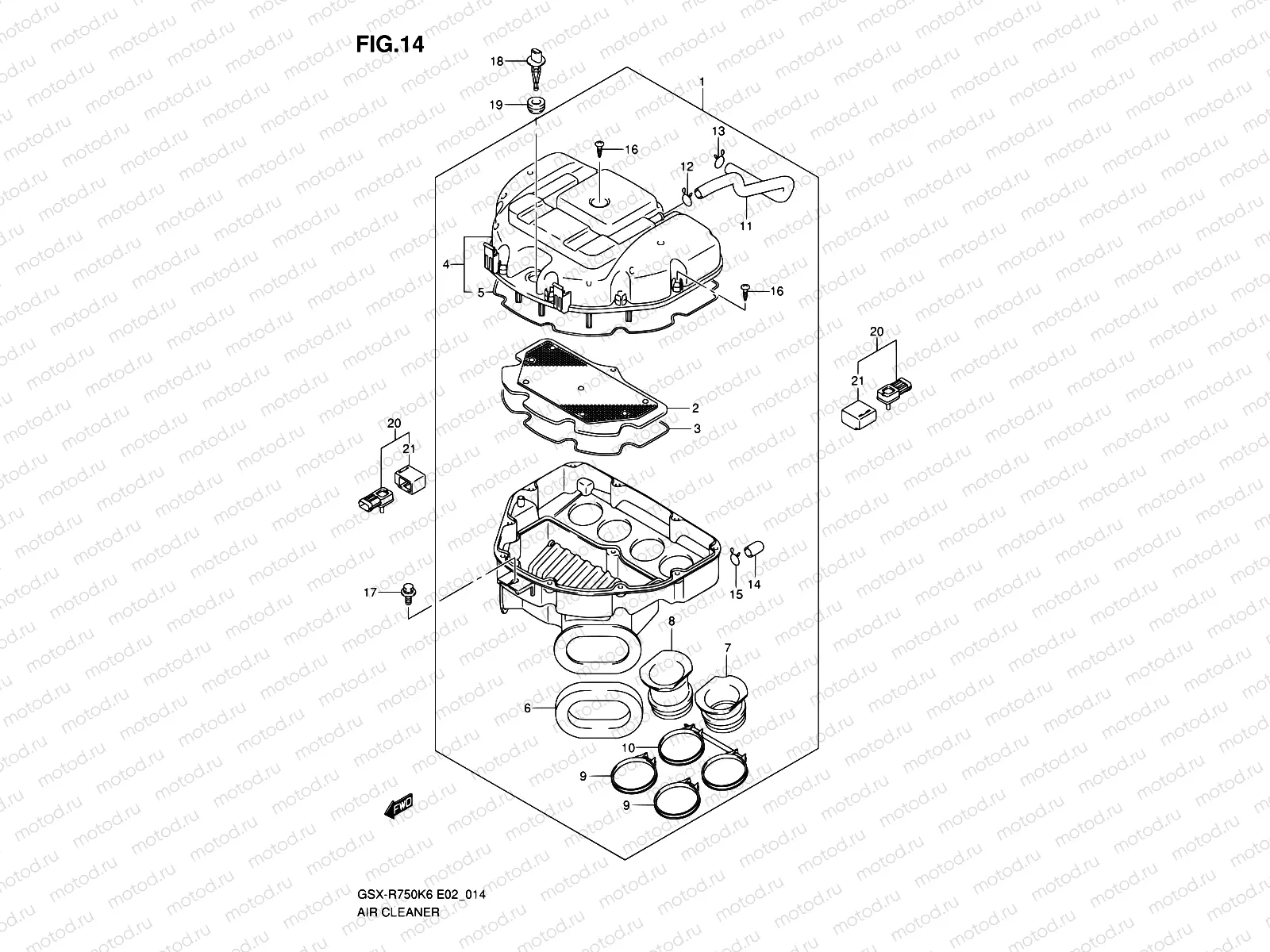

14 - AIR CLEANER

14 - AIR CLEANER

Например: 13700-02H02

1

13700-02H02

Boîte de filtre à air

2

13780-01H00

FILTER ASSY

4 845 ₽/шт

3

13756-01H00

Прокладка

242 ₽/шт

4

13740-01H00

CAP,AIR CLEANER

5 044 ₽/шт

5

13746-01H00

Прокладка стакана

403 ₽/шт

6

13736-01H00

CUSHION,DUCT

748 ₽/шт

7

13881-02H02

Tube,outlet

8

13882-02H00

Tube,outlet

10

13826-02H12

CLAMP,INTAKE PIPE

1 611 ₽/шт

11

13853-01H01

Tube,breather

12

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

13

09401-16401

Хомут

1 800 ₽/шт

14

13859-41B10

Заглушка

323 ₽/шт

15

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

16

13831-35F00

Болт

162 ₽/шт

17

09116-06115

Болт копрусный

153 ₽/шт

18

13650-52G00

Сенсор температуры воздуха

5 410 ₽/шт

19

13655-77E00

Gasket

20

15630-29G10

Сенсор прессуры

14 623 ₽/шт

21

15625-29G00

COVER

680 ₽/шт
