Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 K7 (E02,E19,E24,P37) SUZUKI (VIN: JS1CF111) 15 - MUFFLER

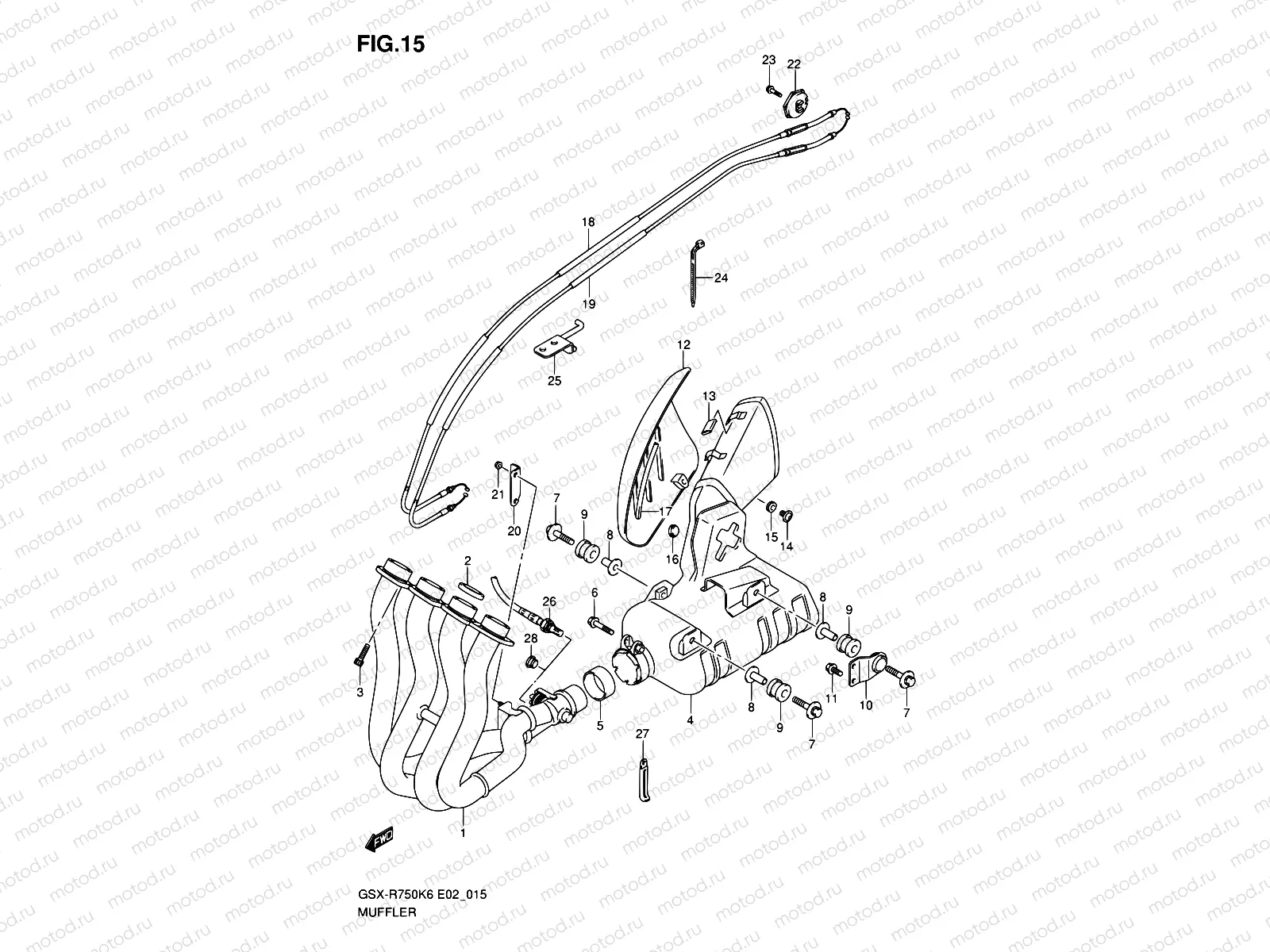

15 - MUFFLER

15 - MUFFLER

Например: 14100-02H00

1

14100-02H00

Pipe,exhaust

1

14100-02H10-E00

Pipe, exhaust

2

14181-46E10

Прокладка

678 ₽/шт

3

07130-0825A

БОЛТ

1 840 ₽/шт

4

14200-02H00

MUFFLER

166 303 ₽/шт

5

14771-24F01

КОЛЬЦО СОЕДЕНИТЕЛЬНОЕ КОЛЛЕКТОРА ВЫПУСКНОГО, МЕТАЛ

1 541 ₽/шт

6

09103-08392

BOLT(8X40)

146 ₽/шт

7

09118-08152-A05

BOLT(8X45)

3 170 ₽/шт

8

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

9

09320-12048

САЙЛЕНТБЛОК

469 ₽/шт

10

14770-01H00

BRACKET,CHAMBER SPRT

1 595 ₽/шт

11

07120-0816A

Болт

1 840 ₽/шт

12

14780-01H01

COVER,MUFFLER

17 791 ₽/шт

13

14795-10FA0

GROMMET

258 ₽/шт

14

09139-06128

SCREW(6X12)

3 280 ₽/шт

15

09320-08066

САЙЛЕНТБЛОК

469 ₽/шт

16

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

17

47315-90100

SEAL(L:520)

364 ₽/шт

18

11276-01H01

ПРОВОДКА ДАТЧИКА

6 491 ₽/шт

19

11277-01H01

ПРОВОДКА ДАТЧИКА

6 491 ₽/шт

20

14250-01H00

BRACKET,EXHAUST VALVE CABLE

751 ₽/шт

21

08316-1006A

Гайка

85 ₽/шт

22

11269-18G01

PULLEY,CONTROLLER

1 020 ₽/шт

23

07120-0516B

БОЛТ

1 520 ₽/шт

25

14610-01H00

Bracket,exh val

26

18213-01H00

SENSOR,OXYGEN

66 300 ₽/шт

27

09404-06039

Clamp(L:65)

194 ₽/шт

28

09248-18011

ШЛАНГ

527 ₽/шт
