Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500F K6 (P02,P19,P24,P54) SUZUKI (VIN: VTTBK232, VTTBK422) 50A - FRONT MASTER CYLINDER (GS500K4/K5/K6/UK4/K5/K6)

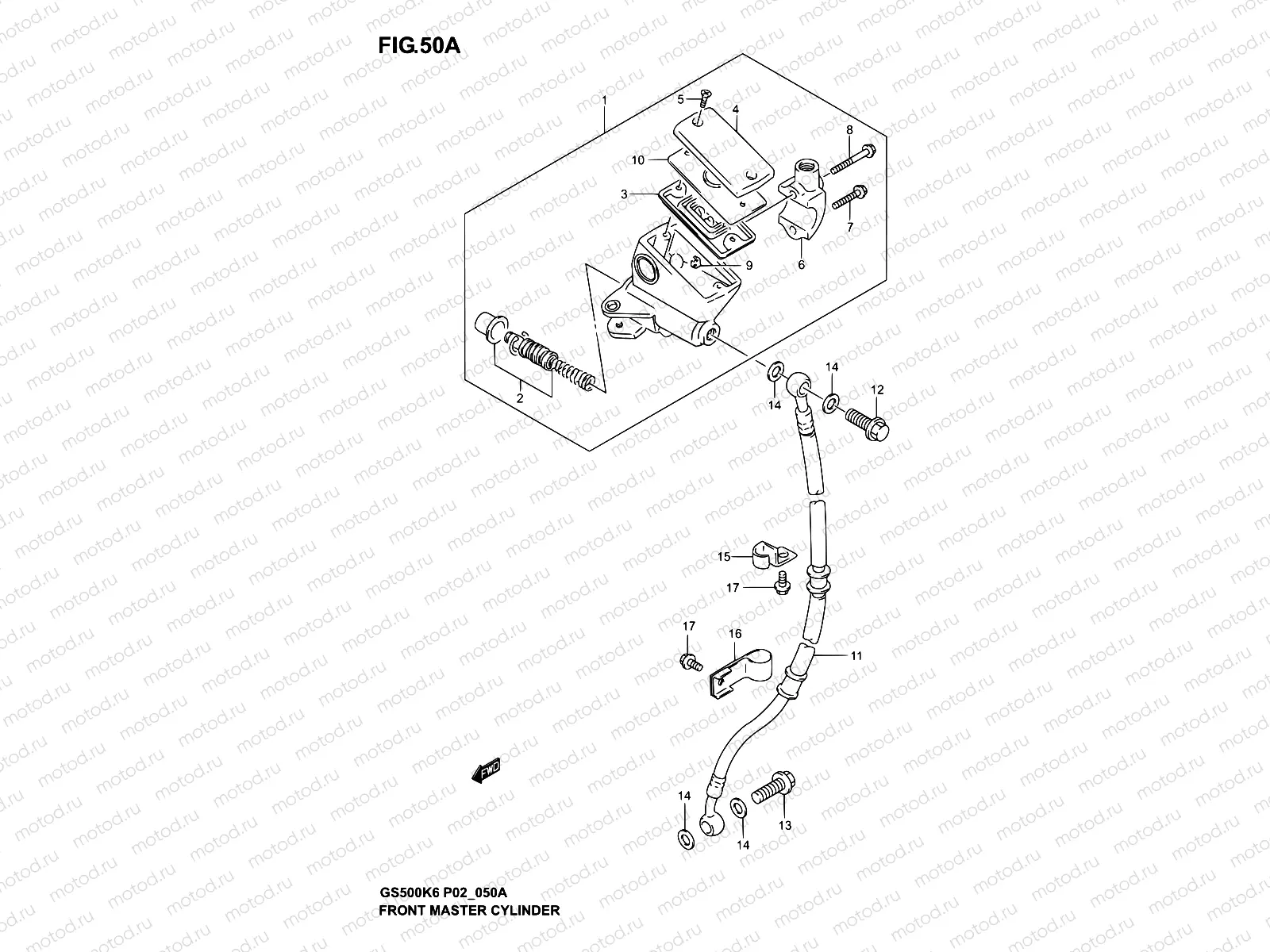

50A - FRONT MASTER CYLINDER (GS500K4/K5/K6/UK4/K5/K6)

50A - FRONT MASTER CYLINDER (GS500K4/K5/K6/UK4/K5/K6)

Например: 59600-45C10

1

59600-45C10

YLINDER ASSY,FR MASTER

34 680 ₽/шт

2

59600-0AE00

Piston/cup set

8 042 ₽/шт

3

59667-49460

ДИАФРАГМА ЦИЛИНДРА ТОРМОЗНОГО

1 870 ₽/шт

4

59669-41C00

AP

2 618 ₽/шт

5

69689-49300

Винт

162 ₽/шт

6

59671-44300

HOLDER

989 ₽/шт

7

59675-19C00

BOLT(6X25)

207 ₽/шт

8

59675-19C10

BOLT(6X38)

270 ₽/шт

9

59664-02E10

Protector

10

59668-41C00

КРЫШКА БАЧКА ТОРМОЗНОЙ ЖИДКОСТИ

561 ₽/шт

11

59480-01DA0

Hose, front brake

6 931 ₽/шт

12

09360-10061

Болт соединяющий

3 910 ₽/шт

13

09360-10062

Болт соединяющий

469 ₽/шт

14

09161-10009

Шайба

113 ₽/шт

15

59268-01D01

Струбцина шланга

504 ₽/шт

16

59268-45D00

Струбцина шланга

622 ₽/шт

17

D1557-0616B

Болт

62 ₽/шт
