Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500F K6 (P02,P19,P24,P54) SUZUKI (VIN: VTTBK232, VTTBK422) 14A - CARBURETOR (MODEL K4/K5/K6)

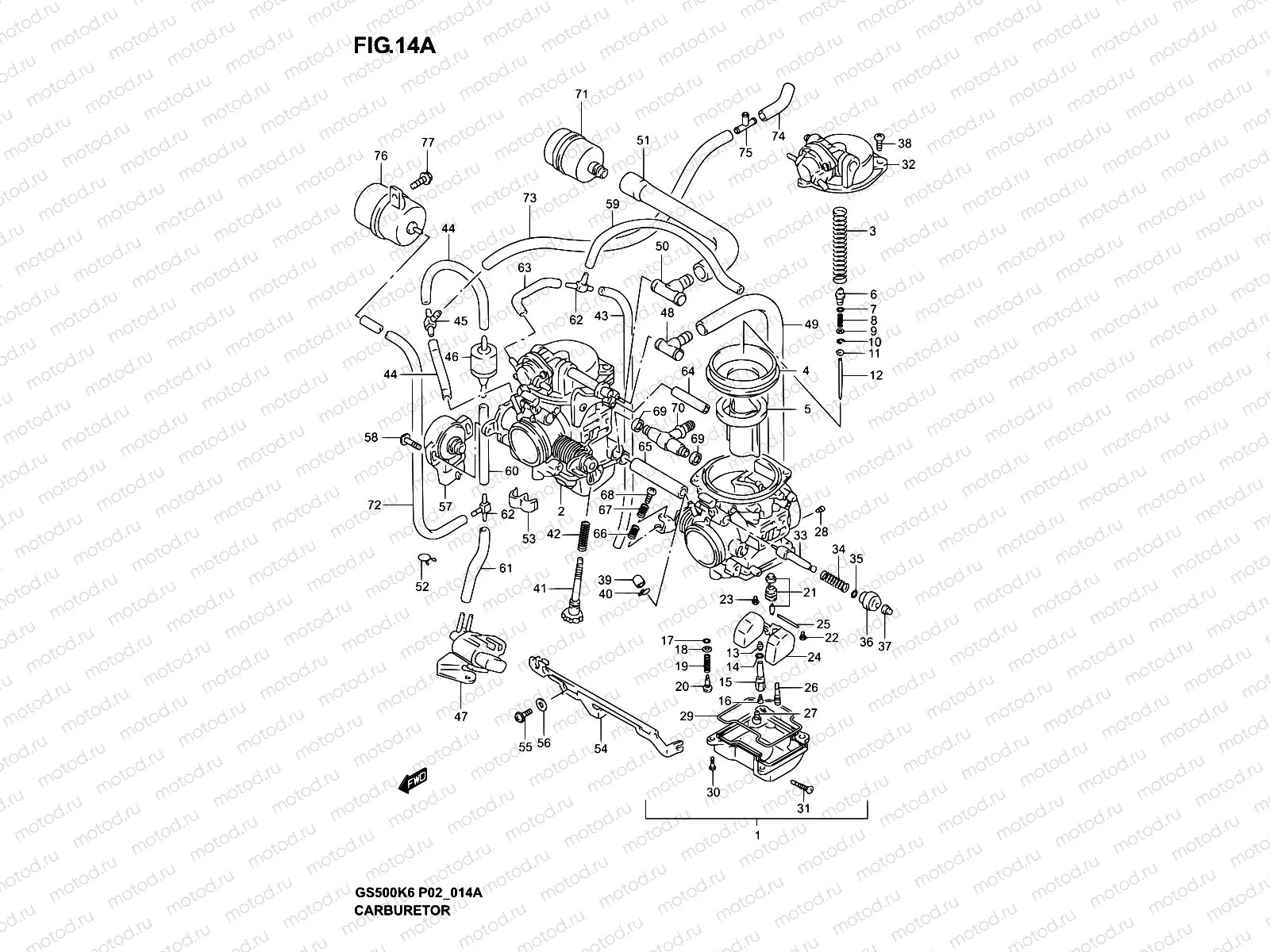

14A - CARBURETOR (MODEL K4/K5/K6)

14A - CARBURETOR (MODEL K4/K5/K6)

Например: 13201-01DN0

1

13201-01DN0

Carburettor (LH)

1

13201-01DP0

Carburettor (LH)

2

13202-01DN0

Carburettor (RH)

2

13202-01DP0

Carburettor (RH)

3

13573-19E00

Пружина

867 ₽/шт

4

13507-17C02

Diaphragm

3 460 ₽/шт

5

13501-29FA0

Клапан поршня

4 653 ₽/шт

5

13501-01DK0

VALVE,PISTON

6 178 ₽/шт

6

13418-44080

Держатель

867 ₽/шт

7

09280-05004

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

204 ₽/шт

8

13481-13F00

Пружина

187 ₽/шт

9

13382-19E00

Шайба

170 ₽/шт

10

13394-17E60

RING,MULTIPLE JET NOZZLE

162 ₽/шт

11

13387-13F00

RING

425 ₽/шт

12

13383-01DN0

eedle, jet (5DH57-3)

13

13341-01DN0

Жиклер игольчатый

6 196 ₽/шт

14

13246-43011

O Ring

194 ₽/шт

15

13385-07F00

HOLDER,JET

1 951 ₽/шт

16

09491-26016

Жиклер-проводник воздуха

989 ₽/шт

16

09491-27008

Жиклер главный (135)

790 ₽/шт

17

13295-29901

O-Ring, Pilot Air Screw

210 ₽/шт

18

13291-29900

Шайба

162 ₽/шт

19

13268-48700

Пружина

210 ₽/шт

20

13279-01DN0

Регулятор

716 ₽/шт

21

13370-04F00

.valve assy, needle

22

02112-0408B

Болт

940 ₽/шт

23

13602-05A10

Болт

238 ₽/шт

24

13250-04F00

Поплавок

4 039 ₽/шт

25

13254-01010

PIN,FLOAT

162 ₽/шт

26

09492-17016

JET,PILOT(17.5)

989 ₽/шт

27

09491-60010

JET,MAIN(60)

989 ₽/шт

28

09493-34003

JET,PILOT AIR(170)

931 ₽/шт

29

13258-04F00

Прокладка

533 ₽/шт

30

02112-04107

Болт

82 ₽/шт

31

13247-02340

Заглушка дренажная

258 ₽/шт

32

13502-01DB0

COVER ASSY,DIAPHRAGM,L

16 923 ₽/шт

32

13502-01DC0

OVER ASSY,DIAPHRAGM,R

7 703 ₽/шт

33

13411-05300

PLUNGER

2 635 ₽/шт

34

13417-26D00

Пружина

238 ₽/шт

35

13278-47091

O Ring

210 ₽/шт

36

13418-44080

Держатель

867 ₽/шт

37

13682-31210

CAP,STARTER VALVE

459 ₽/шт

38

02112-05127

Болт

81 ₽/шт

39

13274-84000

CAP

204 ₽/шт

40

09401-06101

CLIP

114 ₽/шт

41

13267-13F00

SCREW,ADJUST

845 ₽/шт

42

13271-33C00

Пружина

238 ₽/шт

43

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

44

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

45

13685-04F10

Золотник

551 ₽/шт

46

95569-01DN0

Valve check ass

47

18115-70G10

VALVE ASSY,3WAY SOLENOID

7 155 ₽/шт

48

13683-01DB0

HOSE

1 003 ₽/шт

49

13683-01DN1

Hose

50

13683-01DP0

Направляющая трубки

1 404 ₽/шт

51

13683-01DC2

Hose

52

09401-16401

Хомут

1 800 ₽/шт

53

09408-00200

ХОМУТ МАЛЫЙ

1 370 ₽/шт

54

13413-01DE0

Plate

55

13602-04F00

Болт

239 ₽/шт

56

13557-33E00

PACKING

170 ₽/шт

57

13550-13D61

Sensor Assy,throttle

10 710 ₽/шт

58

13605-20C00

Болт

204 ₽/шт

59

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

60

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

61

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

62

09367-04007

Золотник

187 ₽/шт

63

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

64

13685-01DC0

ROD

860 ₽/шт

65

13685-01DB0

PIPE

751 ₽/шт

66

13268-96111

Пружина

179 ₽/шт

67

13271-44B00

Пружина

238 ₽/шт

68

13267-44B00

Болт

238 ₽/шт

69

13673-44B00

Сальник

291 ₽/шт

70

13685-33EQ0

Золотник

2 681 ₽/шт

71

18780-32E00

FILTER,2ND AIR CLEANER

1 857 ₽/шт

72

09355-35007-600

Hose(3.5X7.5X600)

575 ₽/шт

73

09355-50002-00B

Hose,5x10x2000

74

09355-50002-00B

Hose,5x10x2000

75

09367-06002

Соединение 3-х стороннее

179 ₽/шт

76

13715-04F00

Камера вакуумная

1 349 ₽/шт

77

01550-0620B

БОЛТ

81 ₽/шт
