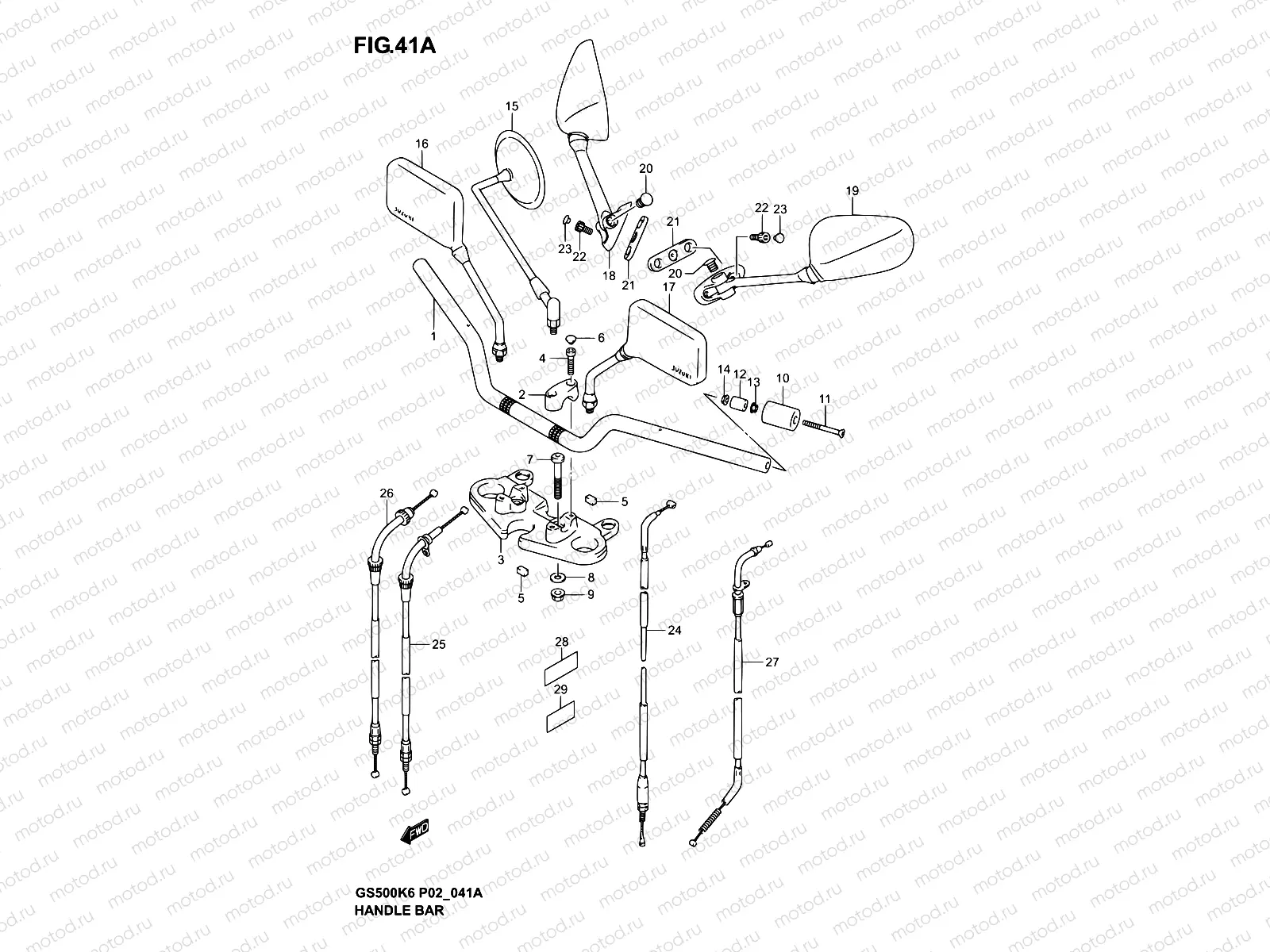

41A - HANDLEBAR (MODEL K4/K5/K6)

41A - HANDLEBAR (MODEL K4/K5/K6)
Например: 56111-01DC0-ETN
1
56111-01DC0-ETN
Handlebar
12 405 ₽/шт
2
56211-42F00
Держатель рукоятки нижний
2 639 ₽/шт
3
56221-01D50-0FP
HOLDER,HANDLEBAR LWR
19 355 ₽/шт
4
D7109-08307
Болт
260 ₽/шт
5
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
6
56241-01D00
Валик держателя
352 ₽/шт
7
07130-1065B
Болт
2 820 ₽/шт
8
09160-10094
WASHER(10.5X30X3.2)
119 ₽/шт
9
08319-31107
Гайка
210 ₽/шт
10
56200-01841
BALANCER SET,HANDLEBAR
5 474 ₽/шт
11
02122-0685B
Болт
1 520 ₽/шт
12
56272-44500
EXPANDER,HANDLE BALANCER
272 ₽/шт
13
08316-1008B
Гайка
81 ₽/шт
14
09159-06024
Гайка
136 ₽/шт
15
56500-080A0
Mirror assy, rear view
16
56500-01D02
MIRROR ASSY,RR VIEW,R
11 144 ₽/шт
17
56600-01D02
MIRROR ASSY,RR VIEW,L
11 144 ₽/шт
18
56500-01DA0
MIRROR ASSY,RR VIEW,R
8 446 ₽/шт
19
56600-01DA0
MIRROR ASSY,RR VIEW,L
8 876 ₽/шт
20
56524-23K10
Cap gsx-r 125/
21
94576-24F00
CUSHION,RR VIEW MIRROR
436 ₽/шт
22
D7107-0616B
Болт
40 ₽/шт
23
09250-05009
ЗАГЛУШКА БОЛТА
113 ₽/шт
24
58200-01DA1
Cable Assy,clutch
2 698 ₽/шт
25
58300-01DA0
Кабель дросселя №1
3 729 ₽/шт
26
58300-01DB0
Кабель дросселя №2
3 459 ₽/шт
27
58410-01D70
Кабель стартера
2 366 ₽/шт
28
94474-22D00
PROTECTOR
469 ₽/шт
29
72895-78A30
Протектор кабеля
583 ₽/шт
