Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 550 SUZUKI GS550E T SUZUKI 50 - STEERING STEM (E15, E22, E26)

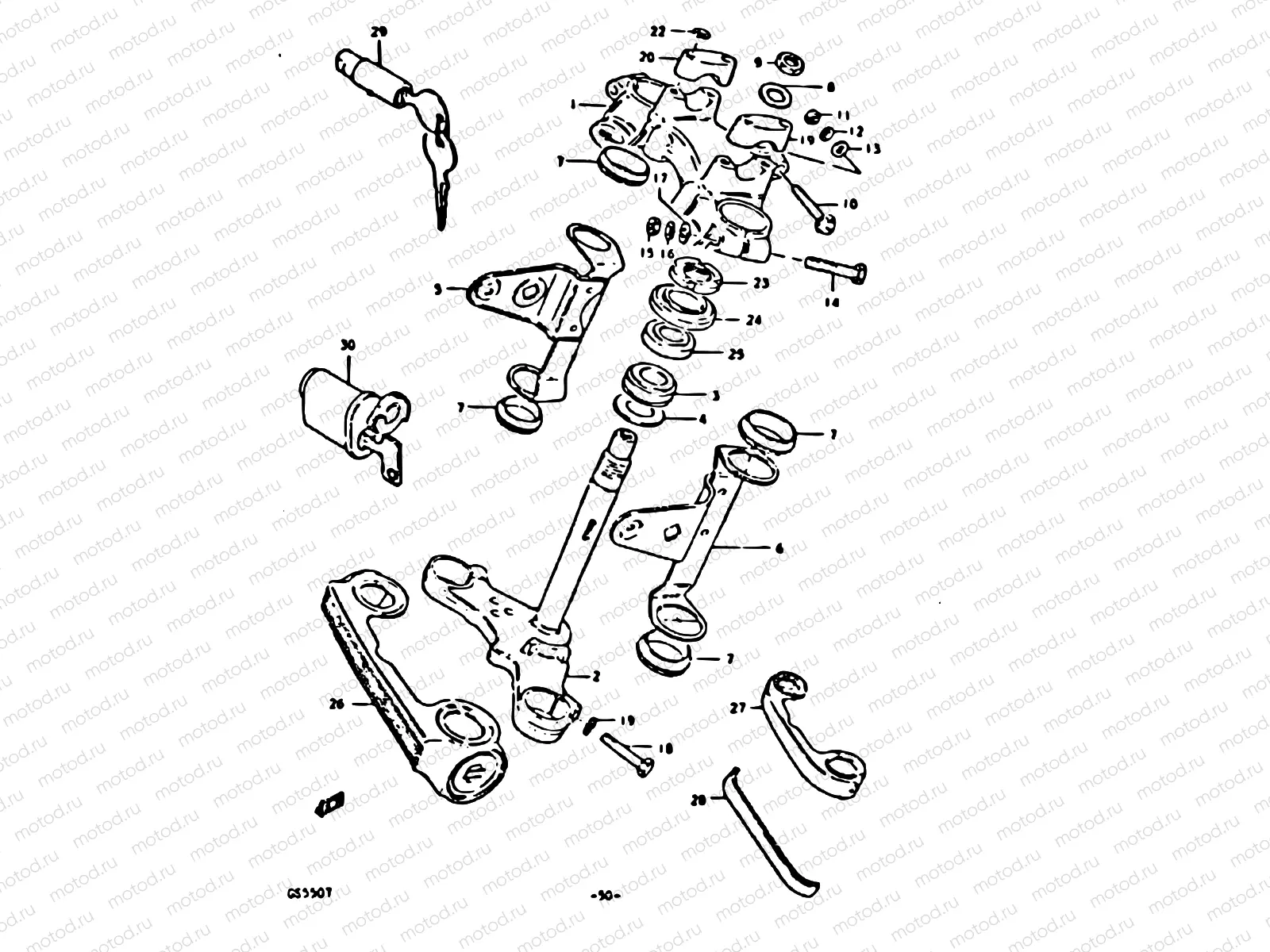

50 - STEERING STEM (E15, E22, E26)

50 - STEERING STEM (E15, E22, E26)

Например: 51311-47000-291

1

51311-47000-291

Steering stem head

2

51400-45831

Steering stem set

2

51400-45821

Steering stem set

3

09265-30034

Bearing

3 392 ₽/шт

4

09181-30184

SHIM(30X40X1.5)

194 ₽/шт

5

51500-47810-291

Bracket,h.lamp

6

51540-47001-291

Bracket, headlamp lh

7

51553-34280

CUSHION,HEADLAMP HSG BRACKET

274 ₽/шт

8

51356-31700

Rondelle

9

51353-45000

Nut

10

01550-08507

БОЛТ

2 070 ₽/шт

11

08310-00087

Гайка 8MM

81 ₽/шт

12

08321-01087

Пластина замка

81 ₽/шт

13

08322-01087

Шайба

81 ₽/шт

14

01500-1055A

БОЛТ

2 070 ₽/шт

15

08310-00107

Гайка

85 ₽/шт

16

08321-01107

Шайба, стопорная

85 ₽/шт

17

08322-0110B

Шайба

85 ₽/шт

18

01500-10407

Болт

2 070 ₽/шт

19

08321-01107

Шайба, стопорная

85 ₽/шт

20

56211-27200-291

HOLDER,HANDLE UPR

931 ₽/шт

21

01254-08357

Болт

2 310 ₽/шт

22

08321-01087

Пластина замка

81 ₽/шт

23

51631-28000

NUT,STEERING STEM(25X44X10)

935 ₽/шт

24

51643-49002

SEAL STEERING UPPER DUST

727 ₽/шт

25

09265-25019

BEARING(25X47X15)

2 746 ₽/шт

26

51871-47000

Cover, front fork

27

51870-45002

Cover,fr.fork

28

51874-47000

Protector, front fork cover locally)
