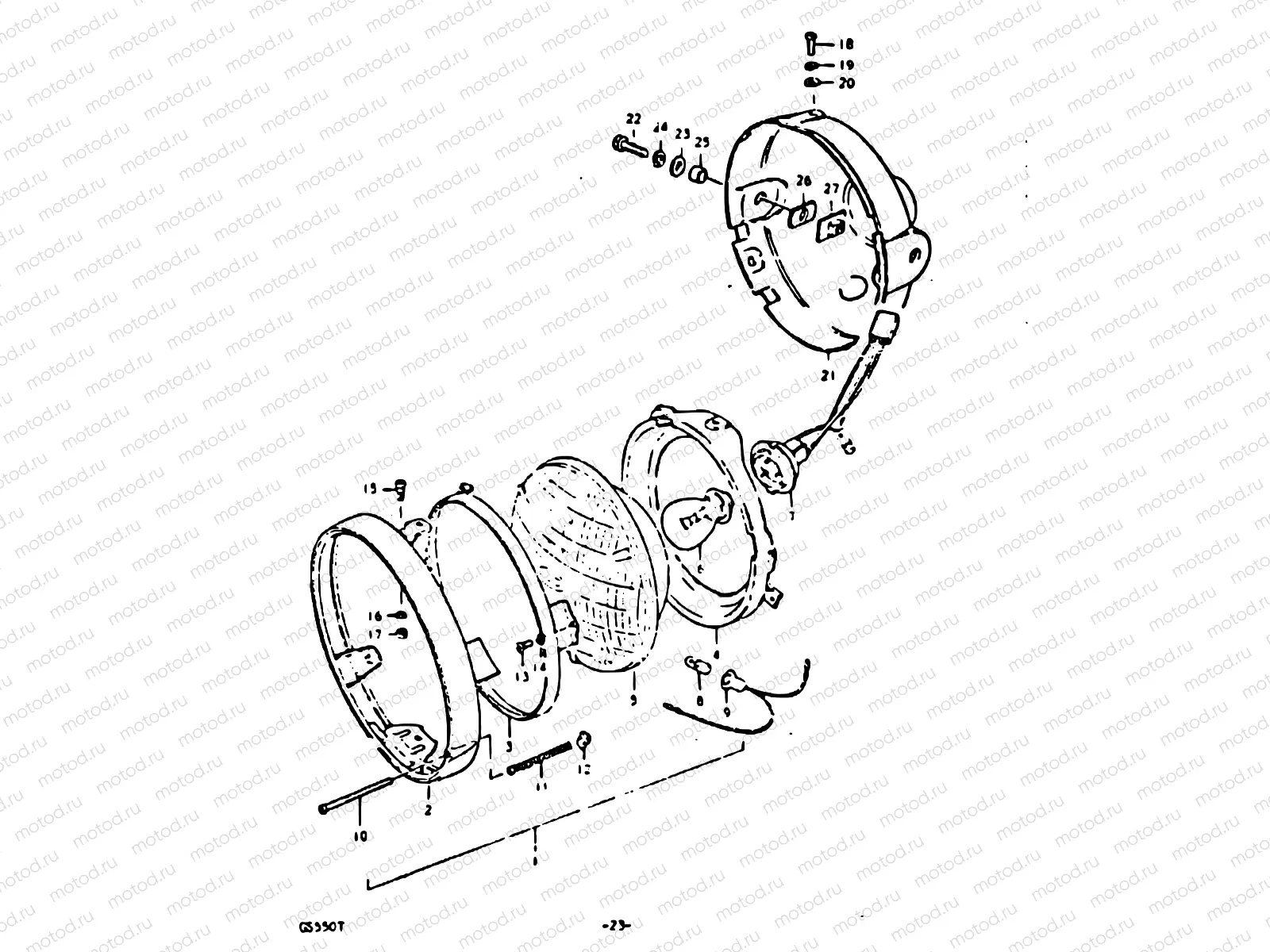

23 - HEADLAMP (E02)

23 - HEADLAMP (E02)

Например: 35100-45640

1

35100-45640

Headlamp assy

2

35111-45030

Rim,head lamp

3

35127-45030

Retainer,head l

4

35130-45030

Ring,head lamp

5

35121-31900

.unit

6

09471-12080

BULB(12V45/45W,STANLEY,70281A)

7 040 ₽/шт

7

35171-31900

.socket

8

09471-12063-LCP

Bulb 6v/1,7w

9

36118-04A00

SOCKET

829 ₽/шт

10

35151-45900

Винт

301 ₽/шт

11

35154-31900

Пружина

364 ₽/шт

12

35152-15611

Гайка

231 ₽/шт

13

02112-04087

Винт 4X8

85 ₽/шт

14

08321-0104A

Пластина замка

82 ₽/шт

15

35181-15611

SCREW,HEADLAMP RING

231 ₽/шт

16

08321-0105A

Пластина замка

81 ₽/шт

17

08310-00057

Гайка

81 ₽/шт

18

09125-05115

Болт

129 ₽/шт

19

09162-05002

Шайба

85 ₽/шт

20

09169-06021

WASHER

162 ₽/шт

21

51811-45002-291

Housing,head la

22

01204-08257

БОЛТ

114 ₽/шт

23

08322-01087

Шайба

81 ₽/шт

24

08321-01087

Пластина замка

81 ₽/шт

25

09180-08187

Кольцо/шайба

162 ₽/шт

26

09329-12005

Cushion

226 ₽/шт

27

51860-45000

PLATE,HEADLAMP HOUSING

204 ₽/шт
