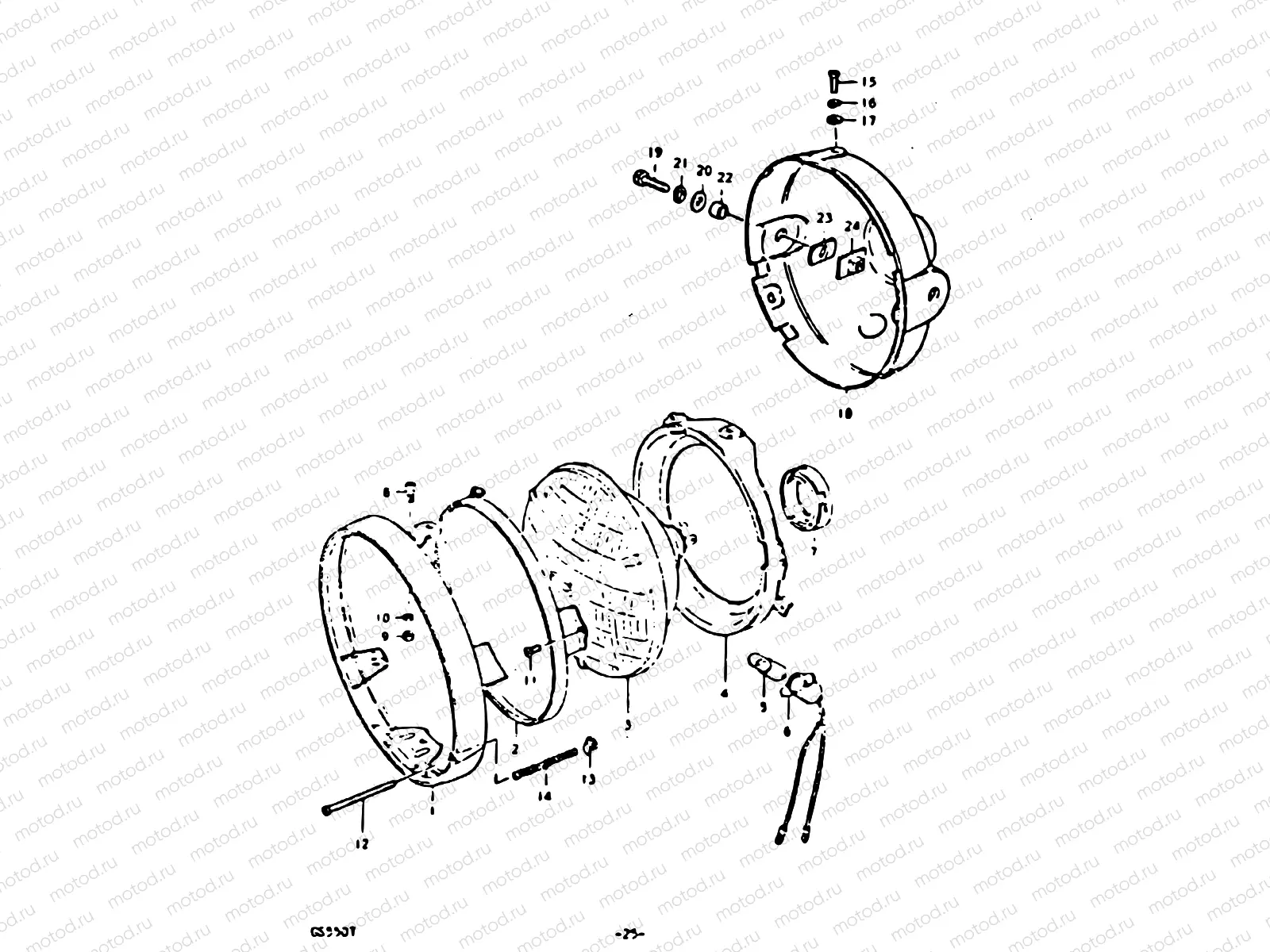

25 - HEADLAMP (E15, E18, E21, E22, E25, E26, E34)

25 - HEADLAMP (E15, E18, E21, E22, E25, E26, E34)

Например: 35111-45030

1

35111-45030

Rim,head lamp

2

35127-45030

Retainer,head l

3

35120-34641

.lens unit (12v, 45/40w)

4

35130-45030

Ring,head lamp

5

.bulb (executed locally 12v, 4w)

6

36118-04A00

SOCKET

829 ₽/шт

7

35136-34670

Setter,head lam

8

35181-15611

SCREW,HEADLAMP RING

231 ₽/шт

9

08310-00047

Гайка

81 ₽/шт

10

08321-0105A

Пластина замка

81 ₽/шт

11

02112-04087

Винт 4X8

85 ₽/шт

12

35151-45900

Винт

301 ₽/шт

13

35152-15611

Гайка

231 ₽/шт

14

35154-31900

Пружина

364 ₽/шт

15

09125-05115

Болт

129 ₽/шт

16

09162-05002

Шайба

85 ₽/шт

17

09169-06021

WASHER

162 ₽/шт

18

51811-45002-291

Housing,head la

19

01204-08257

БОЛТ

114 ₽/шт

20

08322-01087

Шайба

81 ₽/шт

21

08321-01087

Пластина замка

81 ₽/шт

22

09180-08187

Кольцо/шайба

162 ₽/шт

23

09329-12005

Cushion

226 ₽/шт

24

51860-45000

PLATE,HEADLAMP HOUSING

204 ₽/шт

24

35100-45620

Headlamp assy
