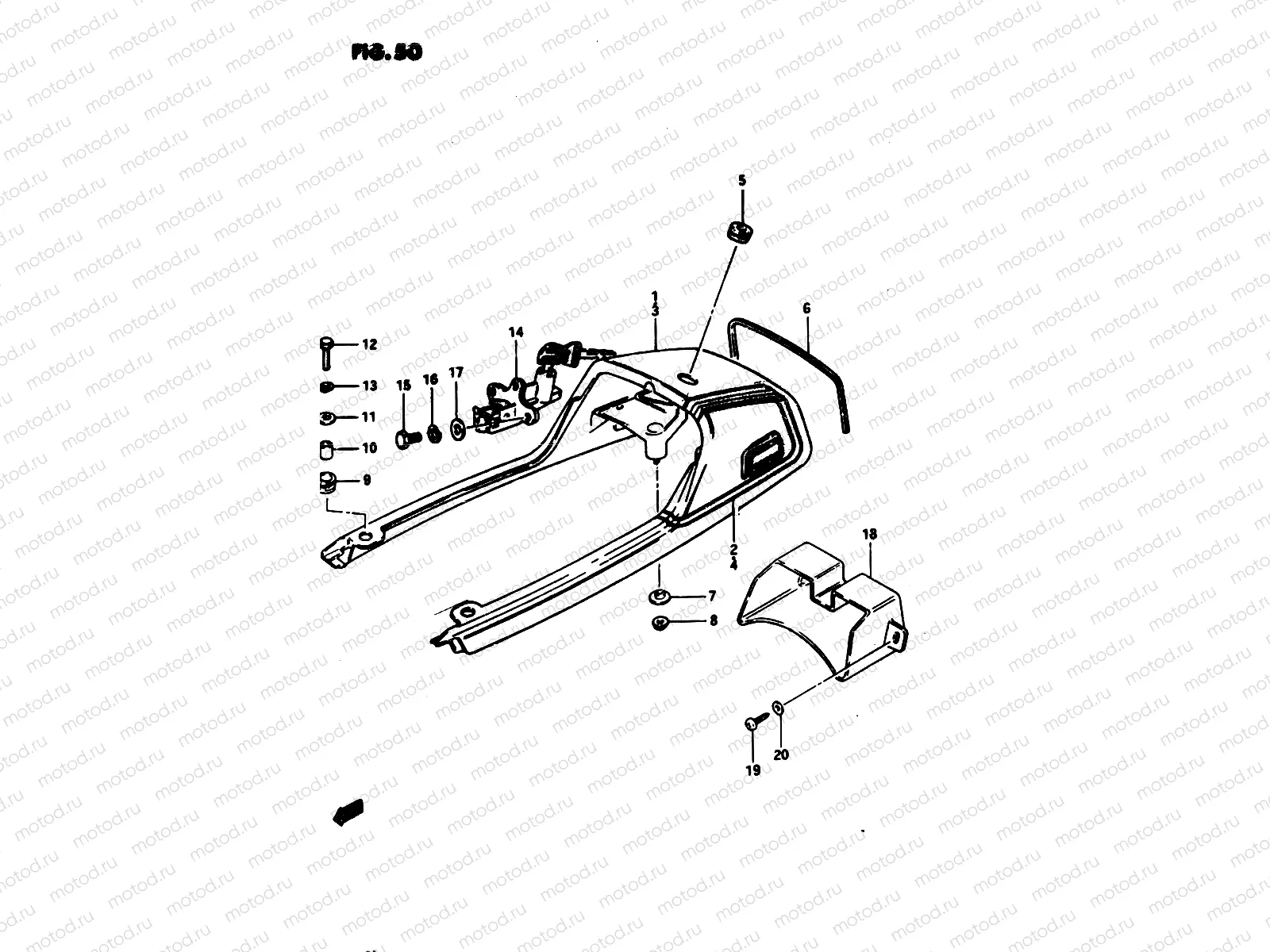

50 - SEAT TAIL COVER (MODEL D)

50 - SEAT TAIL COVER (MODEL D)
Например: 45510-49400
1
45510-49400
Cover seat tail (black) cover seat tail (red)
2
68160-45730-87R
.tape set
3
45500-45890-81L
Cover, seat tail
4
68160-45730-87S
.tape set
5
45522-49200
GROMMET,SEAT LOCK HOLE
571 ₽/шт
6
45562-49400
Moulding, seat tail cover
7
09169-06016
WASHER
170 ₽/шт
8
08319-2106A
Гайка
114 ₽/шт
9
09320-10003
CUSHION
1 640 ₽/шт
10
09180-06290
Кольцо/шайба
1 250 ₽/шт
11
09160-06134
Шайба
102 ₽/шт
12
09118-06086
Болт 6X25
1 680 ₽/шт
13
08321-01067
Шайба, стопорная
81 ₽/шт
14
95700-49830
Lock set,seat
15
01500-06127
Болт
81 ₽/шт
16
08321-01067
Шайба, стопорная
81 ₽/шт
17
08322-0106A
Шайба
81 ₽/шт
18
94991-49400
Box, seat tail
19
02142-06127
Винт 6X12
81 ₽/шт
20
08322-0106A
Шайба
81 ₽/шт
