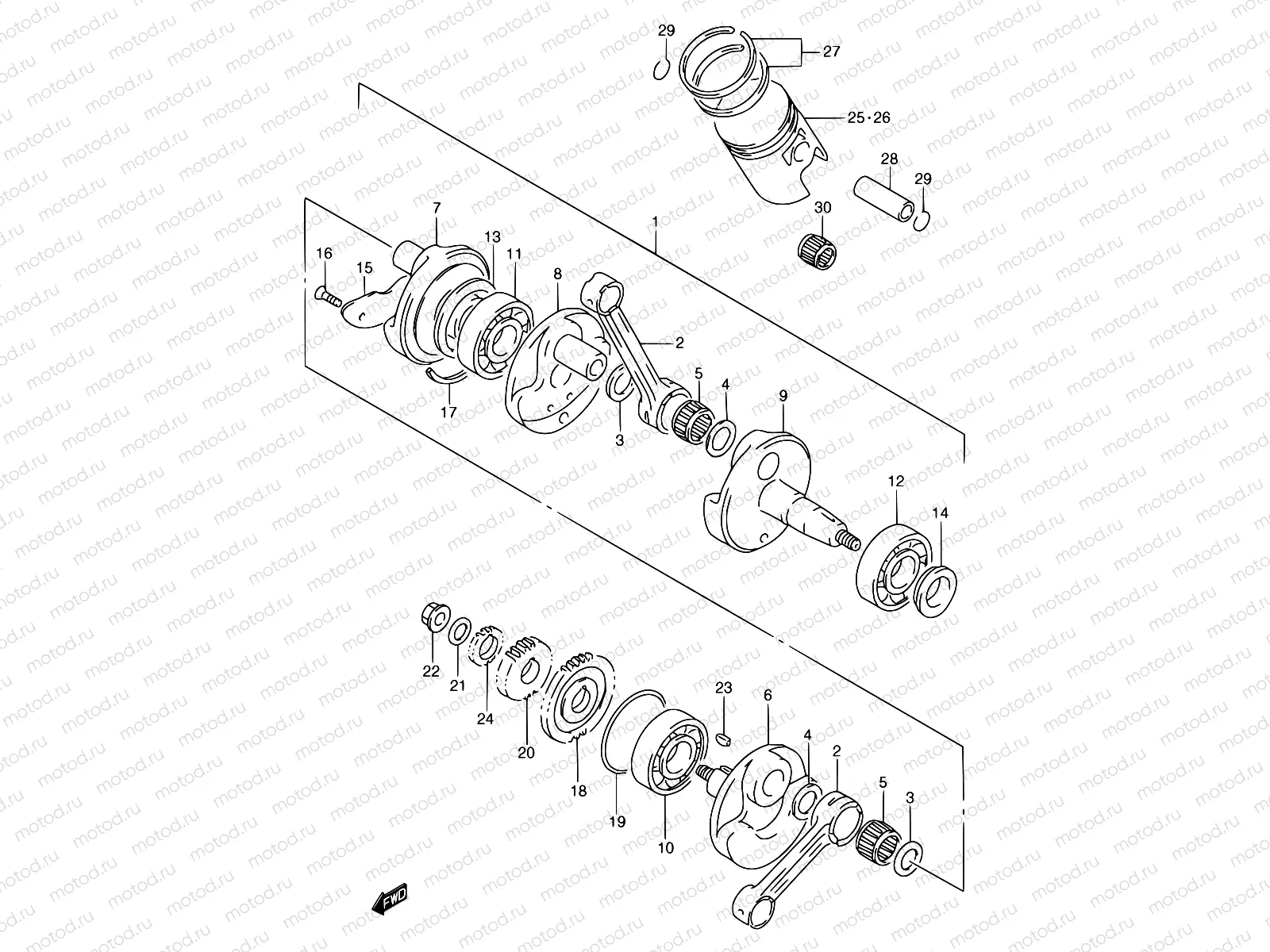

5 - CRANKSHAFT

5 - CRANKSHAFT

Например: 12200-42E00

1

12200-42E00

Vilebrequin

2

12161-42E00-0D0

CONNROD,R

3

09160-24029

WASHER,24X41X2

4

09160-24030

Шайба

24 240 ₽/шт

5

09263-24028

Roulement

6

12220-42E01

.crankshaft, rh

7

12241-42E01-0A0

.crankshaft, middle

8

12231-42E01-0A0

.wave, crankshaft

9

12261-42E01

.crankshaft, lh

10

09262-28032

BEARING,28X68X18.8

11

09262-28033

BEARING,28X68X18

12

09262-28034

BEARING,28X68X16

13

09282-40001

SEAL,OIL,40X68X6.5

14

09283-25091

SEAL,OIL(25X36X6)

2 989 ₽/шт

15

12273-42E01

.plate

16

09120-06010-XC0

Винт 6X16

1 800 ₽/шт

17

09390-68002

Кольцо стопорное

238 ₽/шт

18

12661-42E00

Gear, balancer drive

19

09280-60006

O-Ring

20

21111-42E00

Gear, primary drive

21

09164-16005

WASHER

162 ₽/шт

22

09140-16019

NUT

2 270 ₽/шт

23

08341-M3105-9

Woodruff key

24

16321-42E00

Gear, oil pump drive

25

12110-42E10-0F0

Piston,rh

26

12120-42E10-0F0

Piston,lh

27

12140-42E60

Ring set,piston

28

12151-01B41

Палец поршня

2 125 ₽/шт

29

09381-15001

КЛИПС

113 ₽/шт

30

09263-15041

Needle bearing (15X20X20)
