Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RGV 250 Gamma SUZUKI RGV250 V Gamma SUZUKI 12 - RADIATOR

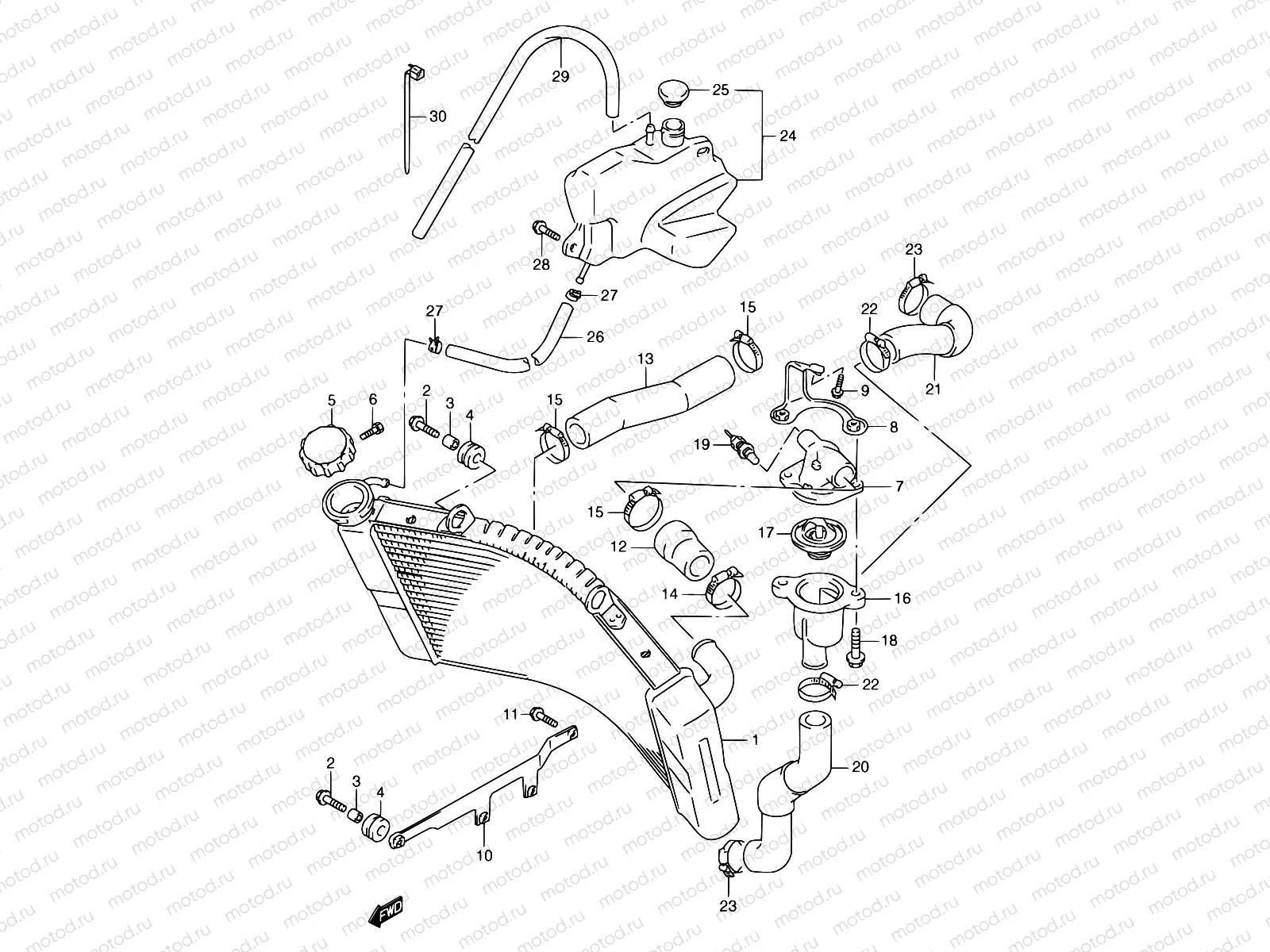

12 - RADIATOR

12 - RADIATOR

Например: 17710-42E00

1

17710-42E00

Radiator assy

2

09116-06167

БОЛТ

145 ₽/шт

3

09180-06290

Кольцо/шайба

1 250 ₽/шт

4

09320-10042

CUSHION

2 070 ₽/шт

5

17730-19D11

Крышка радиатора

1 666 ₽/шт

6

17733-03D10

SCREW,RADIATOR CAP

170 ₽/шт

7

17663-42E00

CAP,THERMOSTAT CONNECTOR

2 465 ₽/шт

8

17790-42E00

Bracket

9

01550-0616B

БОЛТ

81 ₽/шт

10

17750-42E00

BRACKET,RADIATOR LWR

993 ₽/шт

11

01550-0620B

БОЛТ

81 ₽/шт

12

17851-42E00

Durite radiateur (radiator inlet)

13

17852-42E00

HOSE,RADIATOR OUTLET

1 216 ₽/шт

14

09402-32511

Хомут

646 ₽/шт

15

09402-38511

КОЛЬЦО

7 120 ₽/шт

16

17662-12C01

onnector,inlet

17

17670-12C01

Thermostat,water

4 106 ₽/шт

18

01550-0625A

Болт

102 ₽/шт

19

34850-33E00

GAUGE ASSY,WATER TEMP

4 888 ₽/шт

20

17853-42E00

Hose, connector inlet no.1

21

17854-42E00

HOSE,CONNECTOR INLET NO.2

978 ₽/шт

22

09402-28511

CLAMP

307 ₽/шт

23

09402-32511

Хомут

646 ₽/шт

24

17910-42E00

Tank assy, reservoir

25

17932-12C00

КРЫШКА БАЧКА РАСШИРИТЕЛЬНОГО

629 ₽/шт

26

17900-27810

HOSE SET,RESERVOIR TANK INLET

1 496 ₽/шт

27

09401-08413

Collier

28

09136-06022

Болт

1 720 ₽/шт

29

17982-42E00

Hose, over flow

30

09407-14403

КЛЕММА

221 ₽/шт
