Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RGV 250 Gamma SUZUKI RGV250 V Gamma SUZUKI 13 - CLUTCH

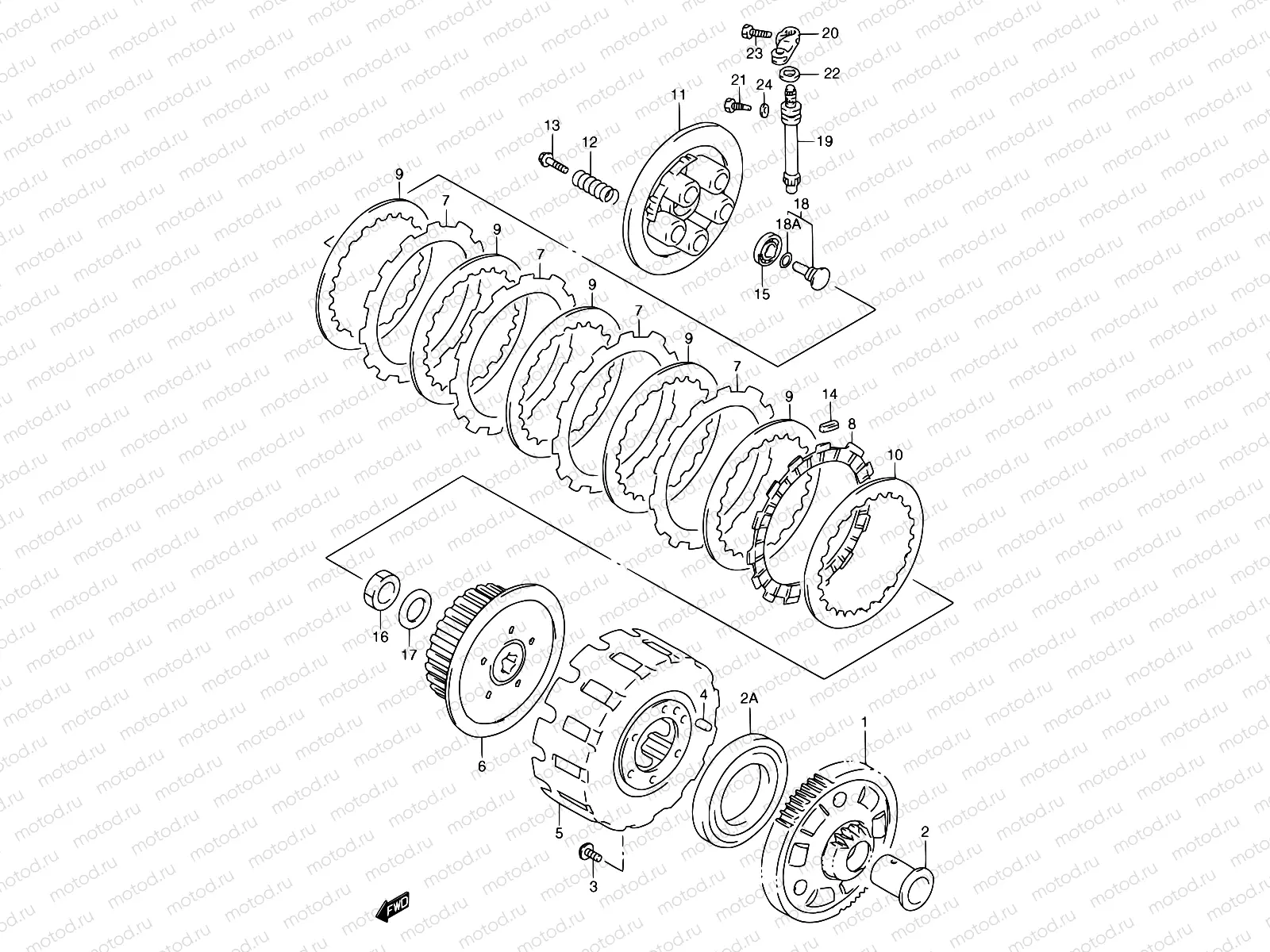

13 - CLUTCH

13 - CLUTCH

Например: 21200-42E00

1

21200-42E00

Gear assy, primary driven

2

21251-13E00

SPACER,PRIMARY DRIVEN GEAR

1 530 ₽/шт

2

21245-42E00

Seal,pri driven

3

09103-07001

BOLT(7X11)

1 410 ₽/шт

4

09261-06003

ШТИФТ

119 ₽/шт

5

21221-42E00

HOUSING,CLUTCH

22 100 ₽/шт

6

21410-42E00

Hub,clutch slee

7

21441-42E00

Plate,clutch dr

8

21442-42E00

Plate,clutch

9

21451-42E00

Plate,clutch dr

10

21452-42E00

Plate,clutch dr

11

21462-42E00

DISC,CLUTCH PRESSURE

6 885 ₽/шт

12

21481-42E00

Spring,clutch

13

21482-13E00

BOLT,CLUTCH SPRING

170 ₽/шт

14

21483-42E00

DAMPER,CLUTCH PLATE NO.2

306 ₽/шт

15

09262-12021

BEARING,12X28X8

16

09140-20012

Гайка

2 110 ₽/шт

17

09164-20007

Шайба

2 310 ₽/шт

18

23160-13E10

Rack, clutch release

18

09280-09005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ (D:1.9,ID:8.6)

170 ₽/шт

19

23261-32E00

PINION,CLUTCH RELEASE

2 805 ₽/шт

20

23271-20902

Рычаг вала сцепления

2 899 ₽/шт

21

09135-06009

BOLT(6X12)

1 410 ₽/шт

22

09282-10009

SEAL,OIL(10X20X5)

308 ₽/шт

23

01500-0616B

Болт

1 330 ₽/шт

24

08322-0106A

Шайба

81 ₽/шт
