Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 K3 V-Strom SUZUKI (VIN: JS1BS1111) 5 - CRANKCASE (MODEL K2/K3/K4/K5)

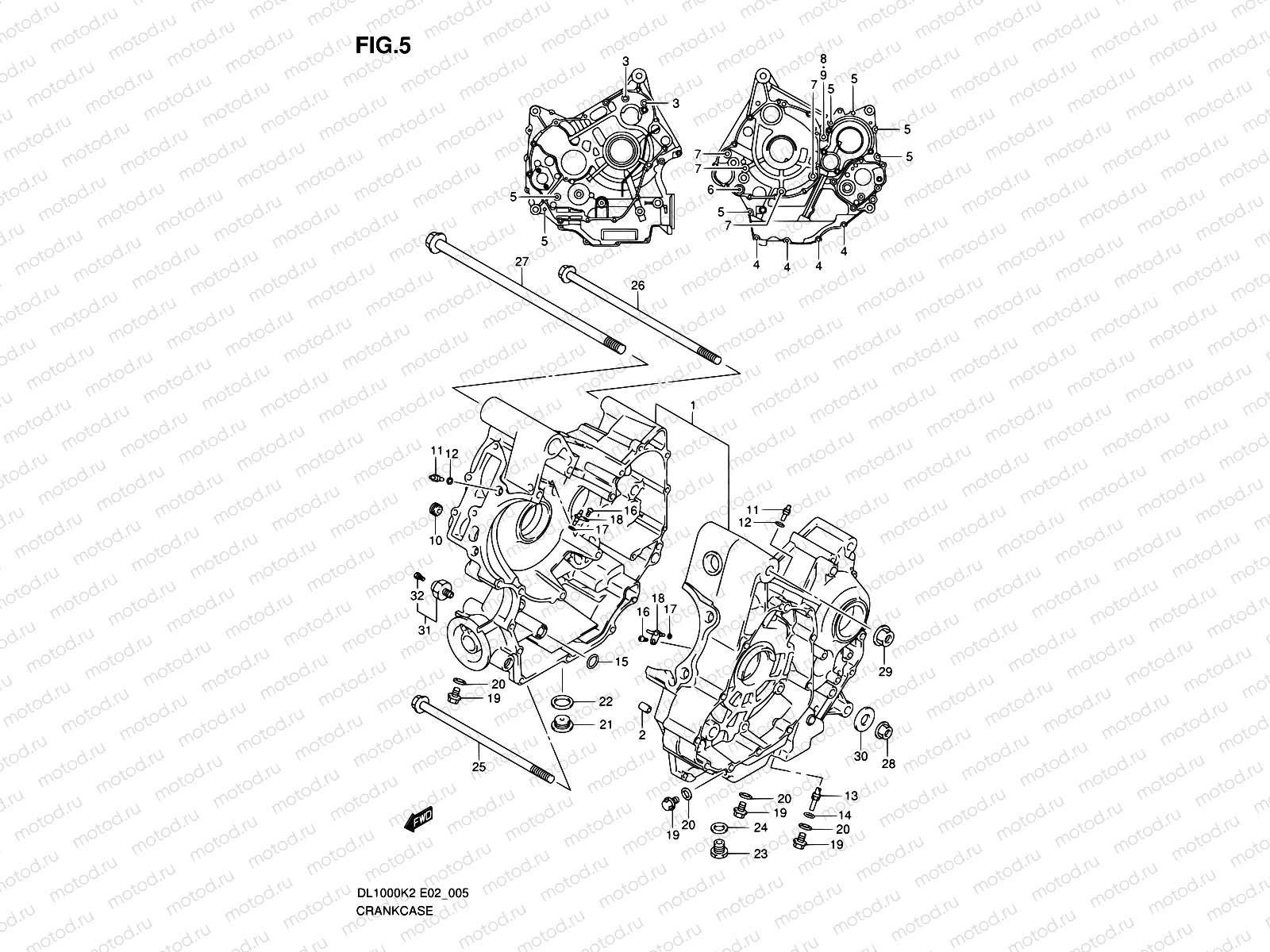

5 - CRANKCASE (MODEL K2/K3/K4/K5)

5 - CRANKCASE (MODEL K2/K3/K4/K5)

Например: 11302-06812

1

11302-06812

Crankcase set

2

11319-33E00

PIN,CRANKCASE

340 ₽/шт

3

09106-08142

BOLT(8X110)

4 380 ₽/шт

4

01547-0630B

Болт

97 ₽/шт

5

01547-0670B

Болт

1 920 ₽/шт

6

01547-0685A

Болт

1 640 ₽/шт

7

07120-08903

Vis

8

09106-08136

BOLT(8X125)

4 570 ₽/шт

9

08322-0108A

Шайба

85 ₽/шт

10

11329-02F00

JET,OIL GALLERY(3.6)

340 ₽/шт

11

09493-20014

JET,OIL GALLERY

845 ₽/шт

12

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

13

09493-20014

JET,OIL GALLERY

845 ₽/шт

14

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

15

09280-12009

Кольцо уплотнительное

221 ₽/шт

16

09125-06086

SCREW(6X12)

179 ₽/шт

17

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

18

11390-06G00

Жиклер

1 756 ₽/шт

19

01550-0812B

Болт

97 ₽/шт

20

09168-08015

Прокладка

1 720 ₽/шт

21

09248-16012

ШЛАНГ

289 ₽/шт

22

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

23

09247-14036

Заглушка масляного дренажа

210 ₽/шт

24

09168-14004

Прокладка

129 ₽/шт

25

09103-10205

BOLT(10X225)

9 540 ₽/шт

26

09103-10226

BOLT(10X265)

8 050 ₽/шт

27

09103-12069

BOLT(12X320)

25 420 ₽/шт

28

09159-10115

Гайка

289 ₽/шт

29

09159-12054

Гайка

840 ₽/шт

30

09160-10039

Шайба

119 ₽/шт

31

37820-33D10

Датчик давления масла

4 764 ₽/шт

32

37822-33D00

BOLT,OIL PRESSURE SWITCH

339 ₽/шт
