Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 K3 V-Strom SUZUKI (VIN: JS1BS1111) 27 - ELECTRICAL

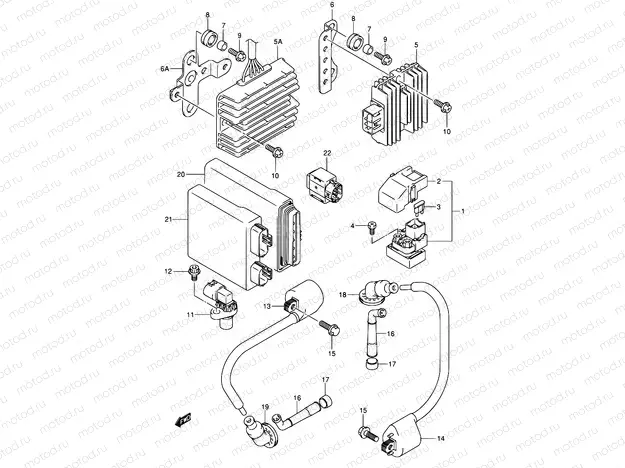

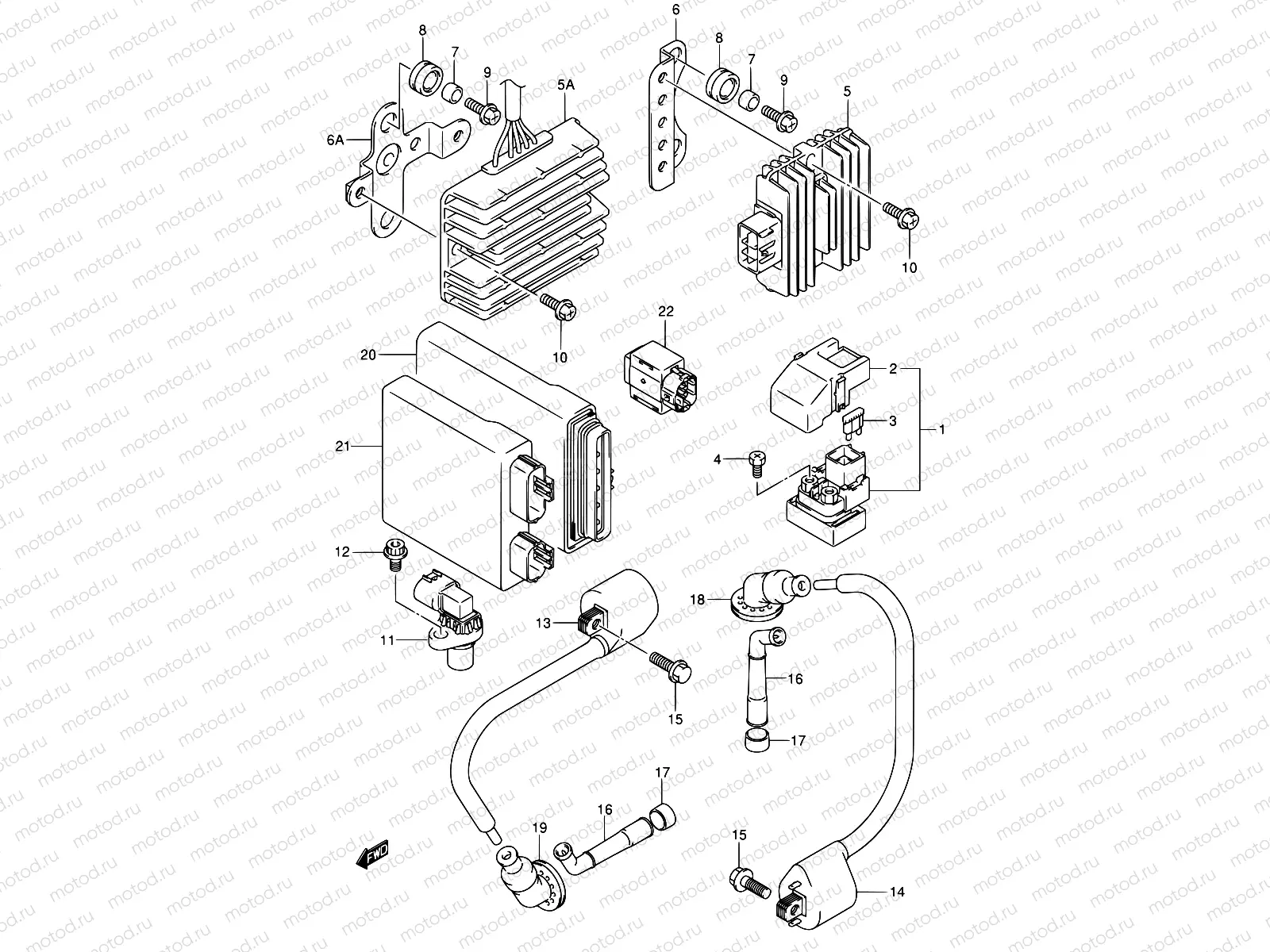

27 - ELECTRICAL

27 - ELECTRICAL

Например: 31800-06G02

1

31800-06G02

Relay assy,star

2

31861-47E00

Крышка

841 ₽/шт

3

09481-30101

Предохранитель

129 ₽/шт

4

09128-06013

SCREW(6X8)

740 ₽/шт

5

32800-06G02

RECTIFIER ASSY

29 612 ₽/шт

6

32831-06G10

Кронштейн выпрямителя

543 ₽/шт

7

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

8

09320-09036

CUSHION

2 500 ₽/шт

9

02162-0620C

Болт

85 ₽/шт

10

02162-0620C

Болт

85 ₽/шт

11

33220-80G00

ДАТЧИК ПОЛОЖЕНИЯ КОЛЕНВАЛА

11 144 ₽/шт

12

07130-0616B

БОЛТ

97 ₽/шт

13

33410-06G01

COIL ASSY,IGNITION

6 630 ₽/шт

14

33420-06G01

Coil Assy,ignition

8 289 ₽/шт

15

01547-0620B

БОЛТ

81 ₽/шт

16

33510-11D00

Свечной колпачок

4 864 ₽/шт

17

33541-23E01

SEAL,SPARK PLUG CAP

318 ₽/шт

18

33542-06G00

SEAL,HIGH TENSION CORD RR

646 ₽/шт

19

33542-06G10

SEAL,HIGH TENSION CORD FR

493 ₽/шт

20

32920-06G01

Control unit,f1

20

32920-06G10

Control unit, fi

20

32920-06G31

Control unit, fi

21

32920-06G41

CONTROL UNIT,FI

139 256 ₽/шт

21

32920-06G50

Control unit, fi

21

32920-06G80

Control unit, fi

22

33960-06G10

SENSOR ASSY,FUEL CUT

6 379 ₽/шт
