Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 K3 V-Strom SUZUKI (VIN: JS1BS1111) 32 - TAIL LAMP (MODEL K2/K3)

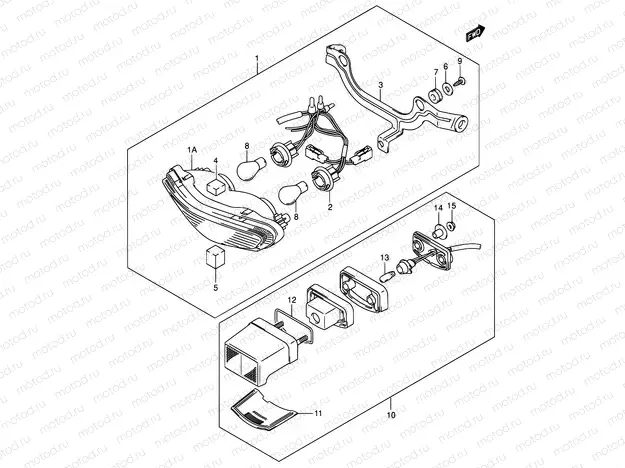

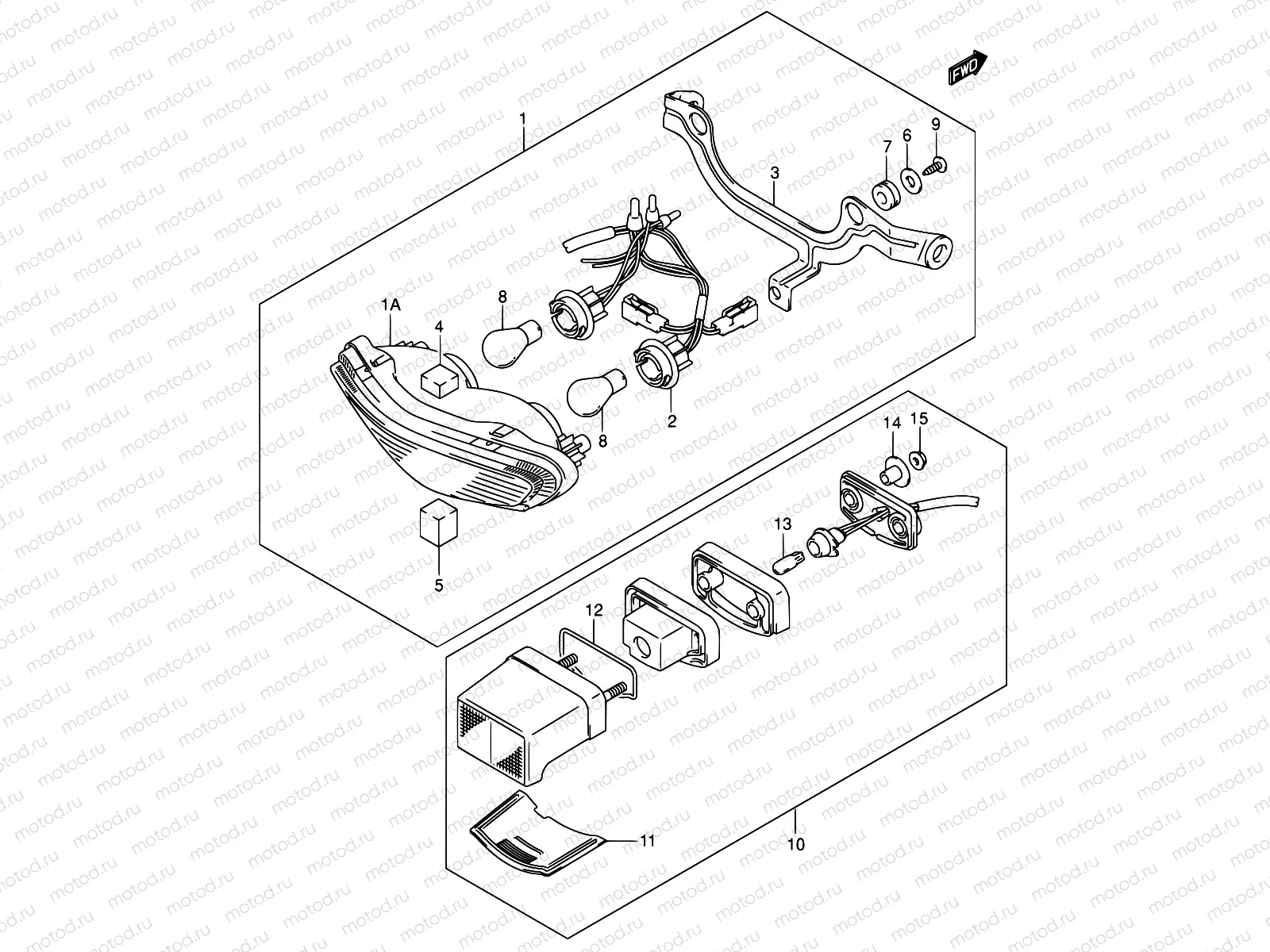

32 - TAIL LAMP (MODEL K2/K3)

32 - TAIL LAMP (MODEL K2/K3)

Например: 35710-06G00

1

35710-06G00

Taillight assy.

1

35720-06G00

Линза фары

8 446 ₽/шт

2

35718-06G00

Socket&cord ass

3

35726-06G00

BRACKET

6 491 ₽/шт

4

35734-06G00

CUSHION,UPR(20X20X12)

395 ₽/шт

5

35739-06G00

CUSHION,LWR(20X20X25)

399 ₽/шт

6

09160-05501

Шайба (5.5X20X1.2)

81 ₽/шт

7

09320-10070

Cushion,rear co

8

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

9

03241-0516A

Винт

81 ₽/шт

10

35910-06G01

Lamp assy,licen

11

35912-08F00

Линза

712 ₽/шт

12

35913-08F00

Прокладка

9 462 ₽/шт

13

09471-12216

ЛАМПА НАКАЛИВАНИЯ

459 ₽/шт

14

35766-08F00

Кольцо/шайба

461 ₽/шт

15

08316-10067

Гайка

1 330 ₽/шт
