Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500T L4 Boulevard C90 (E03,E28,E33) SUZUKI 474A - REAR FENDER

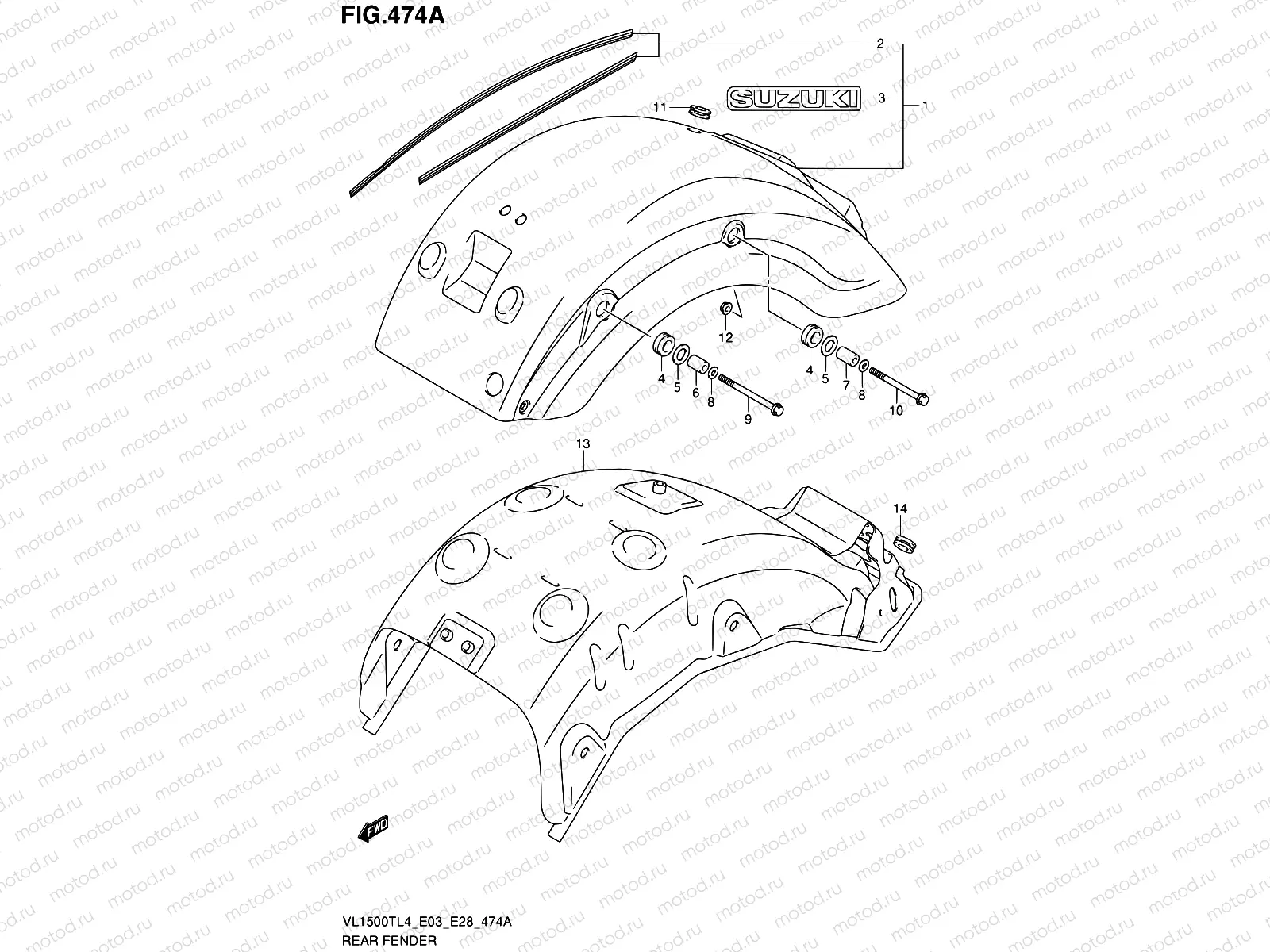

474A - REAR FENDER

474A - REAR FENDER

Например: 63110-06J10-AW4

1

63110-06J10-AW4

Fender, rear (orange/brown)

1

63110-06J10-HYB

Fender, rear (white/gray)

2

68170-06J00-AYA

.tape set, rear fender

2

68170-06J00-JFD

.tape set, rear fender

3

68271-34A01-YES

mblem,"suzuki"

578 ₽/шт

3

68271-34A01-YJH

Emblem, suzuki

4

47191-24F00

CUSHION,FRAME COVER UPR RR

323 ₽/шт

5

09160-15002

WASHER(15.5X26X2.3)

113 ₽/шт

6

95428-06J00

SPACER,RR FENDER FR

422 ₽/шт

7

95429-06J00

SPACER,RR FENDER RR

422 ₽/шт

8

09180-08047

SPACER(8.2X12X6)

1 490 ₽/шт

9

01550-0895B

Болт

2 620 ₽/шт

10

01550-0885A

БОЛТ

2 070 ₽/шт

11

09320-15008

САЙЛЕНТБЛОК

2 310 ₽/шт

12

08316-1008A

Гайка вала

81 ₽/шт

13

63130-06J01

REINF,REAR FENDER

21 896 ₽/шт

14

09308-10017

Втулка

2 540 ₽/шт
