Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500T L4 Boulevard C90 (E03,E28,E33) SUZUKI 126A - CAMSHAFT/VALVE

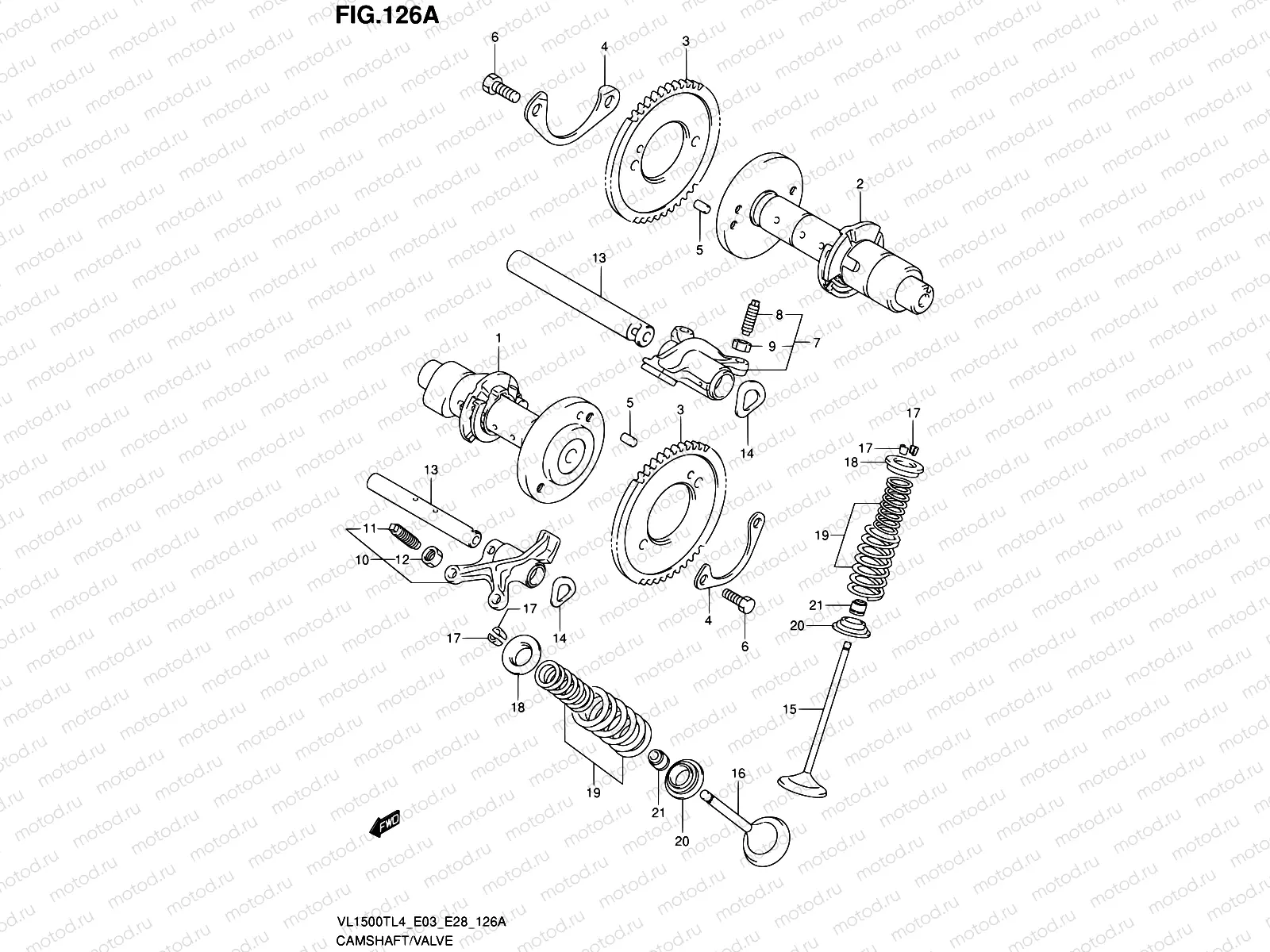

126A - CAMSHAFT/VALVE

126A - CAMSHAFT/VALVE

Например: 12710-40H20

1

12710-40H20

CAMSHAFT,FR

31 476 ₽/шт

2

12730-40H10

CAMSHAFT,RR

31 476 ₽/шт

3

12741-41F00

SPROCKET,CAMSHAFT

3 230 ₽/шт

4

12747-44001

Шайба

258 ₽/шт

5

04221-05109

ШПОНКА РАСПРЕДВАЛА

85 ₽/шт

6

09100-06169

BOLT(6X12.5)

1 640 ₽/шт

7

12840-40H00

ARM,VALVE ROCKER INTAKE

7 038 ₽/шт

8

12842-38A00

Болт

317 ₽/шт

9

12843-32400

Гайка

170 ₽/шт

10

12850-40H00

ARM,VALVE ROCKER EXHAUST

7 038 ₽/шт

11

12842-38A00

Болт

317 ₽/шт

12

12843-32400

Гайка

170 ₽/шт

13

12861-40H00

SHAFT,VALVE ROCKER ARM

2 639 ₽/шт

14

09164-12018

Шайба

102 ₽/шт

15

12911-40H00

Клапан впуска

2 776 ₽/шт

16

12912-40H00

Клапан, выпуска

4 145 ₽/шт

17

12932-24400

Сухарь

170 ₽/шт

18

12931-33201

Фиксатор

527 ₽/шт

19

12920-32E00

SPRING SET,VALVE

845 ₽/шт

20

12933-81400

Пружина

291 ₽/шт

21

09289-05015

МАСЛОСЪЕМНЫЙ КОЛПАЧОК

711 ₽/шт
