Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500T L4 Boulevard C90 (E03,E28,E33) SUZUKI 420C - FUEL TANK (VL1500TL4 E33)

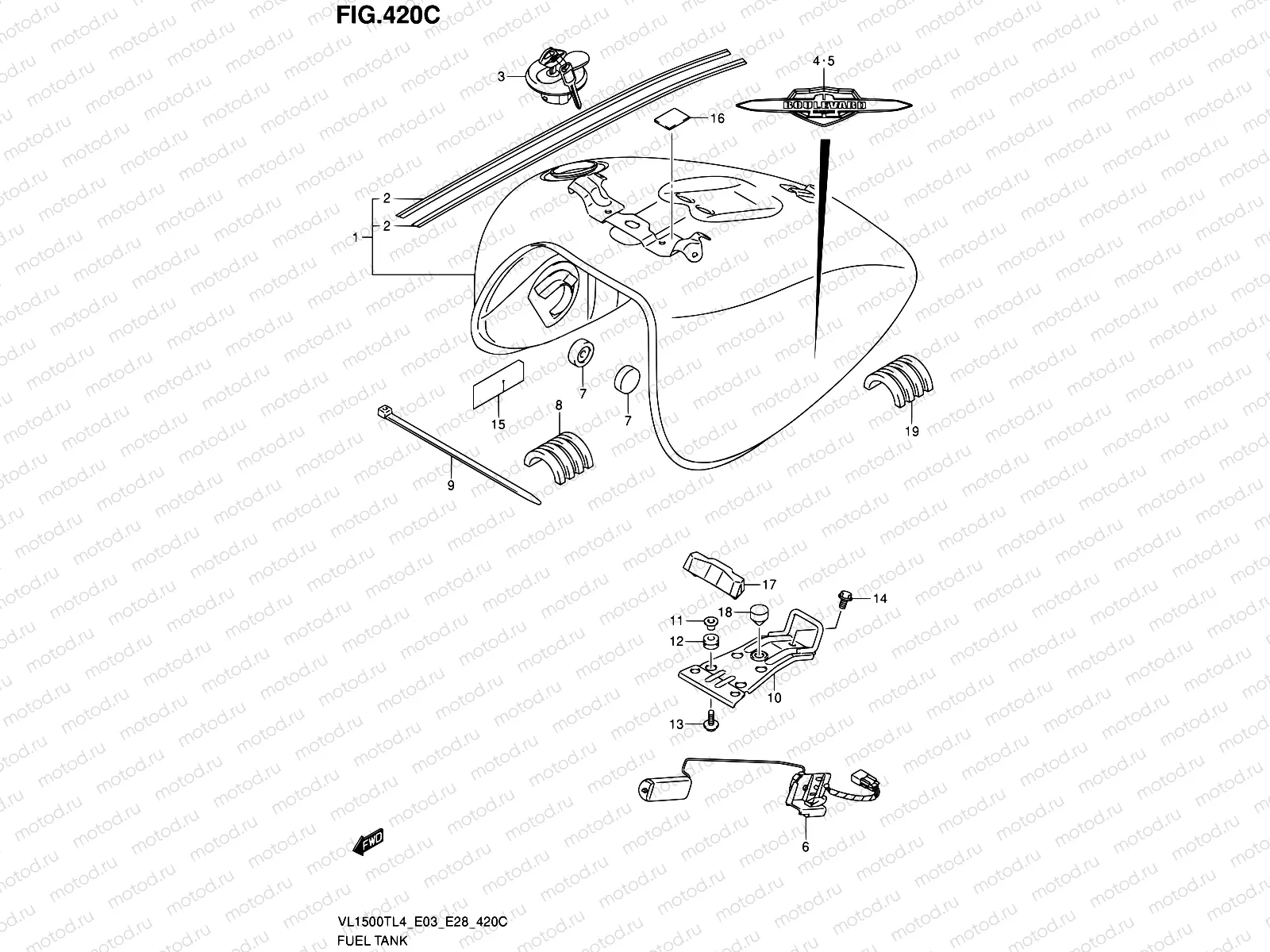

420C - FUEL TANK (VL1500TL4 E33)

420C - FUEL TANK (VL1500TL4 E33)

Например: 44100-06J21-AW4

1

44100-06J21-AW4

Tank assy, fuel (orange/brown)

1

44100-06J21-HYB

Tank assy, fuel (white/gray)

2

68110-06J00-AYA

.tape set fuel tank

2

68110-06J00-JFD

.tape set fuel tank

3

44200-41841

Cap Set,fuel Tank Filler

18 288 ₽/шт

4

68111-06J00

EMBLEM,FUEL TANK,R

3 793 ₽/шт

5

68121-06J00

EMBLEM,FUEL TANK,L

6 249 ₽/шт

6

34810-40H00

GAUGE ASSY,FUEL LEVEL SENDER

7 820 ₽/шт

7

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

8

44541-04F00

CUSHION,FUEL TANK LWR

524 ₽/шт

9

09407-30402

ХОМУТ РУЛ. НАК.

2 420 ₽/шт

10

44530-06J00

BRACKET,FUEL TANK RR

2 151 ₽/шт

11

09169-06062

Кольцо/шайба

114 ₽/шт

12

09320-08001

Damper

13

09116-06192

БОЛТ

153 ₽/шт

14

01550-0812B

Болт

97 ₽/шт

15

44283-06J00

PROTECTOR,FUEL TANK

301 ₽/шт

16

63191-25C00

USHION

204 ₽/шт

17

44545-06J00

CUSHION

618 ₽/шт

18

09321-10011

САЙЛЕНТБЛОК

162 ₽/шт

19

44541-06J00

CUSHION,TANK SIDE

524 ₽/шт
