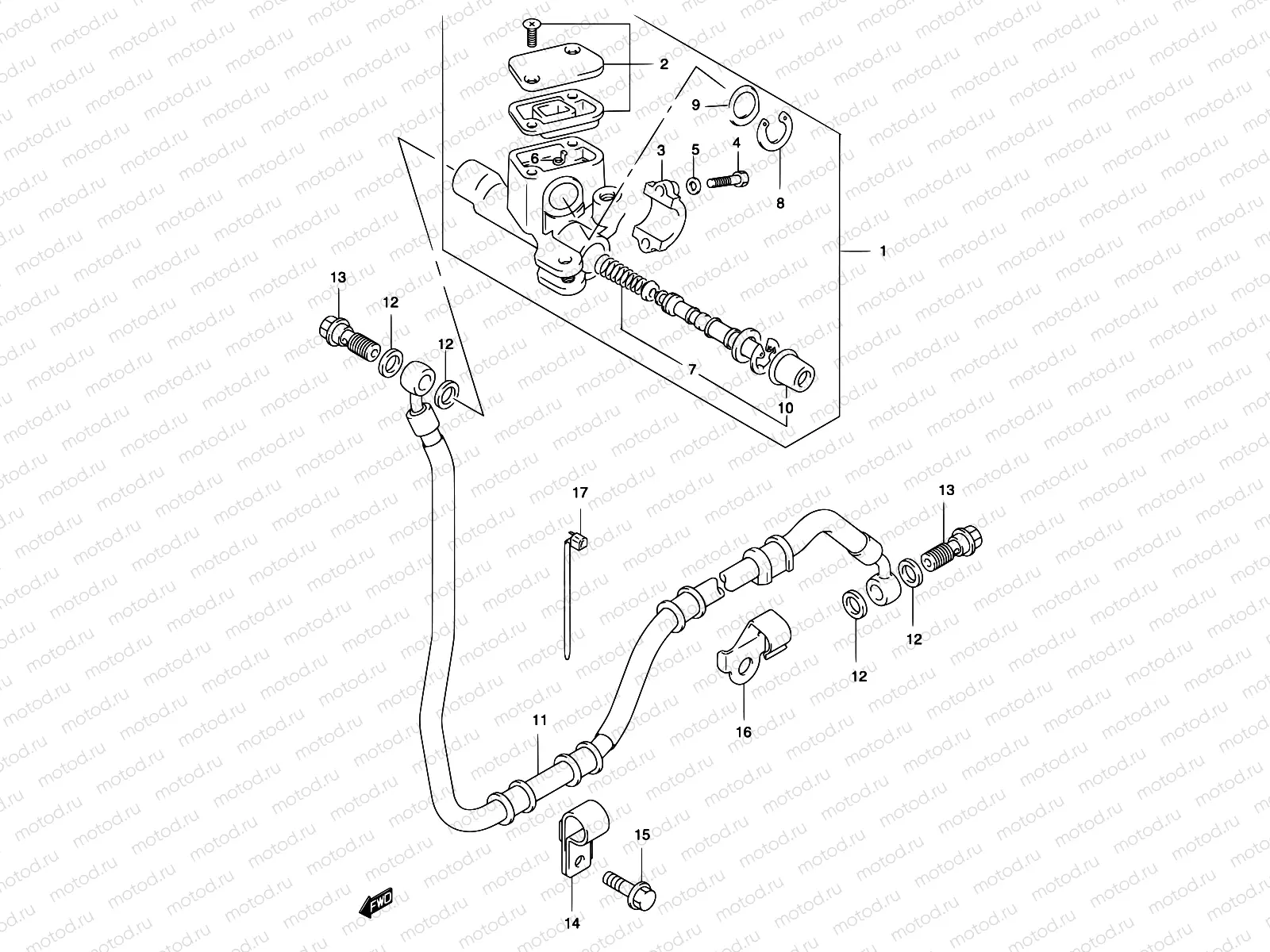

46 - REAR MASTER CYLINDER (MODEL AY50WR K1/K2/ AY50W K3/K4)

46 - REAR MASTER CYLINDER (MODEL AY50WR K1/K2/ AY50W K3/K4)
Например: 69600-35E00
1
69600-35E00
Cylinder,rr mas
2
69660-02E50
Cap set
3
59671-35E50
Holder
4
59675-02E10
Vis
5
59675-35E50
Rondelle
6
59664-02E10
Protector
7
69601-02E50
Piston set
8
59749-35E50
Circlip
9
59745-35E50
Level gauge
10
59601-02E10
Kit de réparation pour de frein
11
69480-35E00-F00
Hose,rr.brake
12
59482-00E10
Rondelle (10x15x1.5)
13
59481-00E10
Bolt
14
69267-35E00-E0N
Clamp,rr brake
15
02112-0616A
Болт
81 ₽/шт
16
69269-35E00-E0N
Clamp,rr brake
17
D9448-02875
Collier
