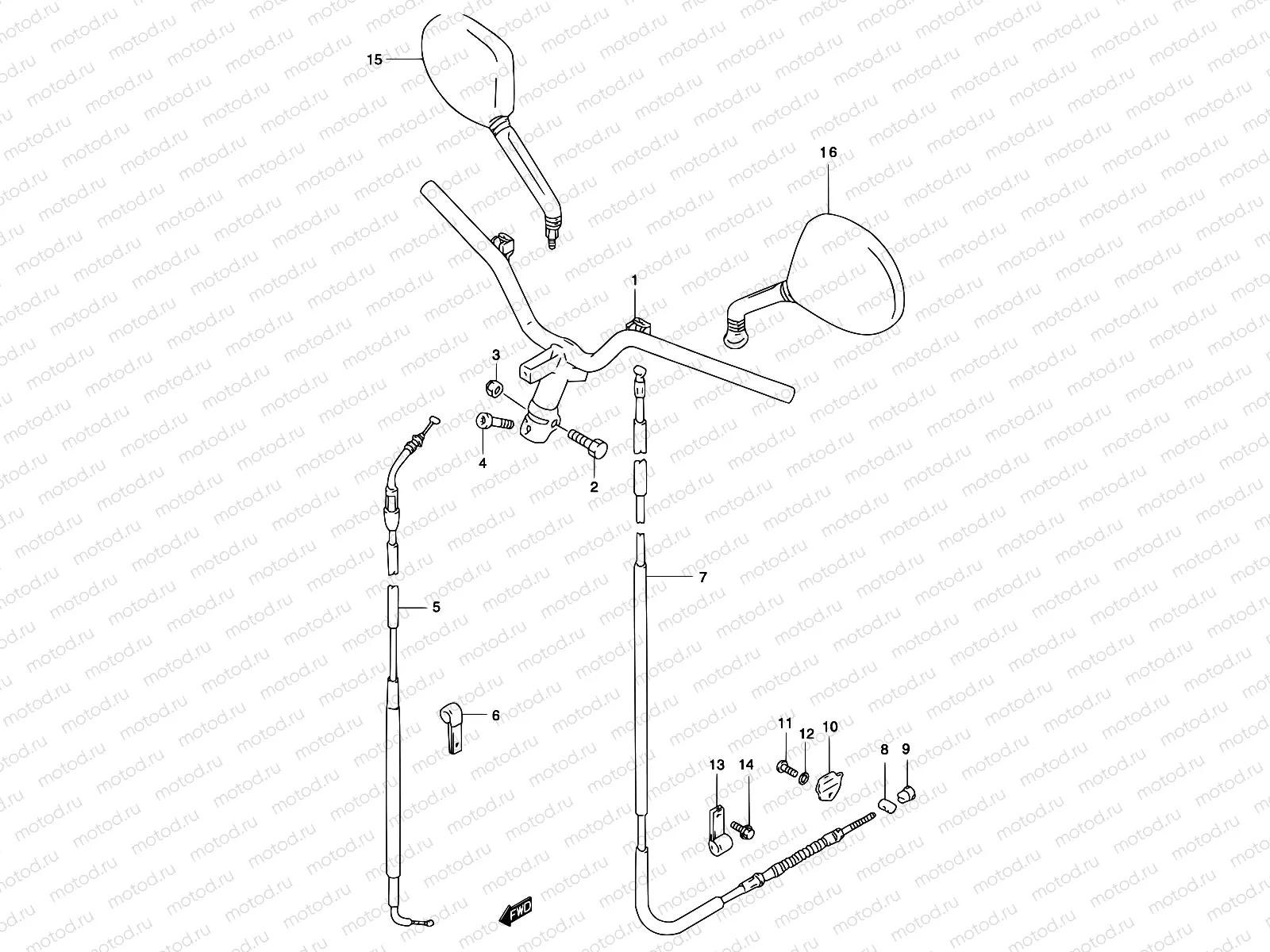

34A - HANDLEBAR (MODEL AY50)

34A - HANDLEBAR (MODEL AY50)
Например: 56110-02E02-EE3
1
56110-02E02-EE3
Handlebar
2
09689-10116
Vis
3
08319-3110B
Гайка
1 920 ₽/шт
4
09120-08018
Vis
5
58300-02E00
Câble de gaz
6
09403-02E10-EE3
Collier
7
58510-22F00
Câble de frein
8
09209-10001
PIN,10X19
194 ₽/шт
9
09150-05101
Гайка
211 ₽/шт
10
58575-10E00-E0N
Plate,rr brake
11
D7107-0616B
Болт
40 ₽/шт
12
08321-0106A
Шайба
81 ₽/шт
13
09403-16405
Collier
14
02112-0616A
Болт
81 ₽/шт
15
56500-09EF0
Mirror,rr view
16
56600-09EF0
Mirror,rr view
