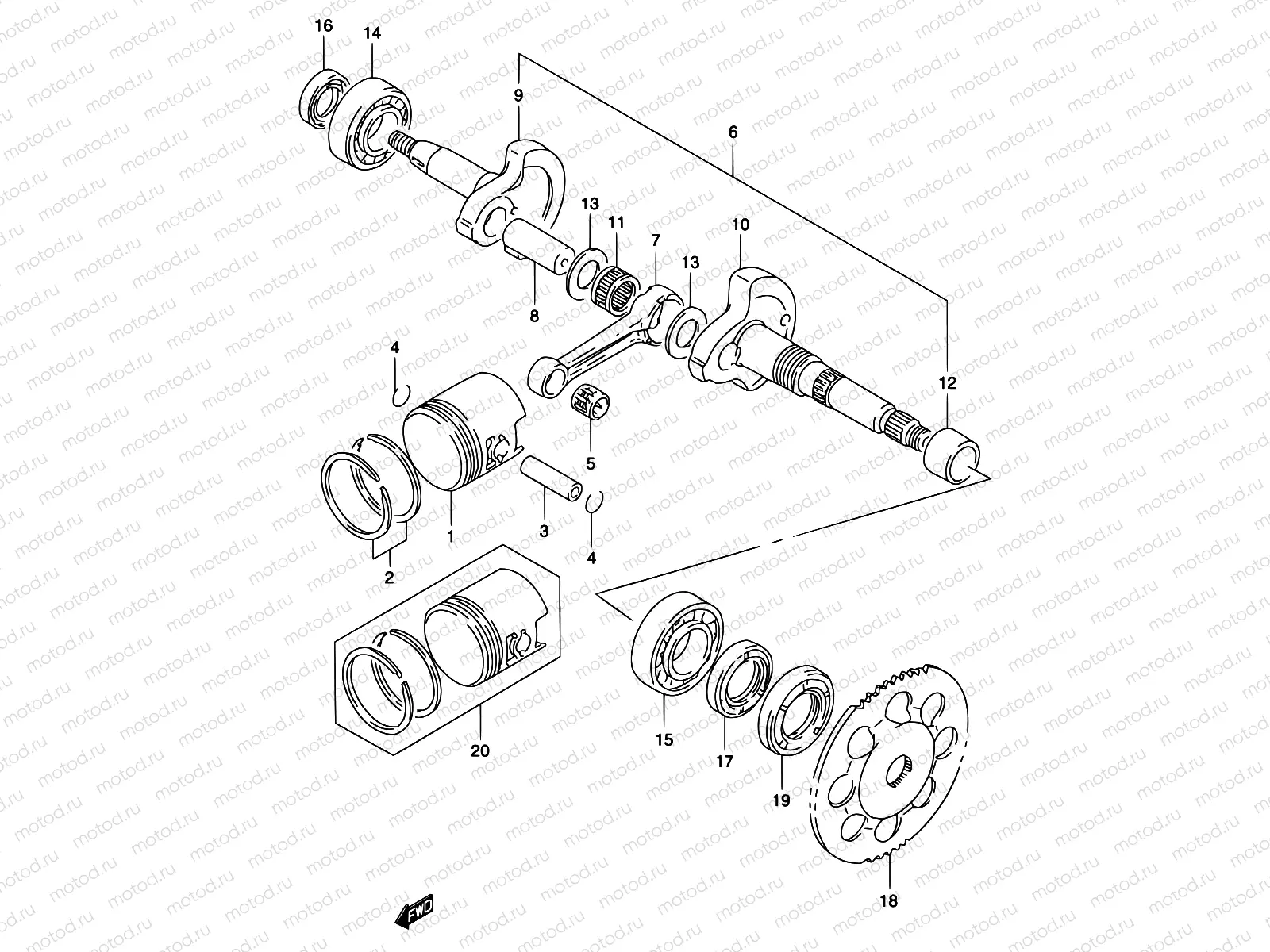

4 - CRANKSHAFT (MODEL AY50WR K1/K2/AY50W K3/K4 )

4 - CRANKSHAFT (MODEL AY50WR K1/K2/AY50W K3/K4 )
Например: 12110-04711-0F0
1
12110-04711-0F0
PISTON
5 357 ₽/шт
2
12140-04721
Кольца поршневые
6 375 ₽/шт
3
12151-04700
Палец поршня
1 518 ₽/шт
4
09381-12001
Стопорное кольцо
119 ₽/шт
5
09263-12023
Подшипник поршня
598 ₽/шт
6
12200-35E20
Вал коленчатый
31 085 ₽/шт
7
12161-35E10
Шатун
4 262 ₽/шт
8
12211-35E30
Палец шатунный
1 314 ₽/шт
9
12221-35E20
Crankshaft,rh
10
12261-35E20-0A0
Crankshaft,lh
11
09263-18030
BEARING(18X24X11.6)
1 408 ₽/шт
12
09180-18010
Кольцо/шайба
10 240 ₽/шт
13
09160-18016
Шайба
5 000 ₽/шт
14
09262-20140
BEARING(20X47X14)
2 405 ₽/шт
15
09262-25100-0A0
Подшипник
3 441 ₽/шт
16
09283-17026
Уплотнение вала
485 ₽/шт
17
09283-25084
SEAL,OIL(25X37X6)
1 443 ₽/шт
18
12622-37B01
GEAR,STARTER
6 334 ₽/шт
19
09284-24001
SEAL,OIL(24X43X6)
355 ₽/шт
20
12100-04711-050
Piston kit (OS: 0.5)
20
12100-04711-100
Piston kit (OS: 1.0)
