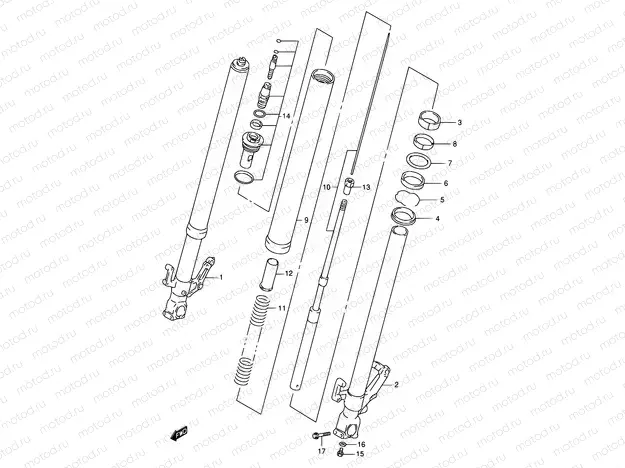

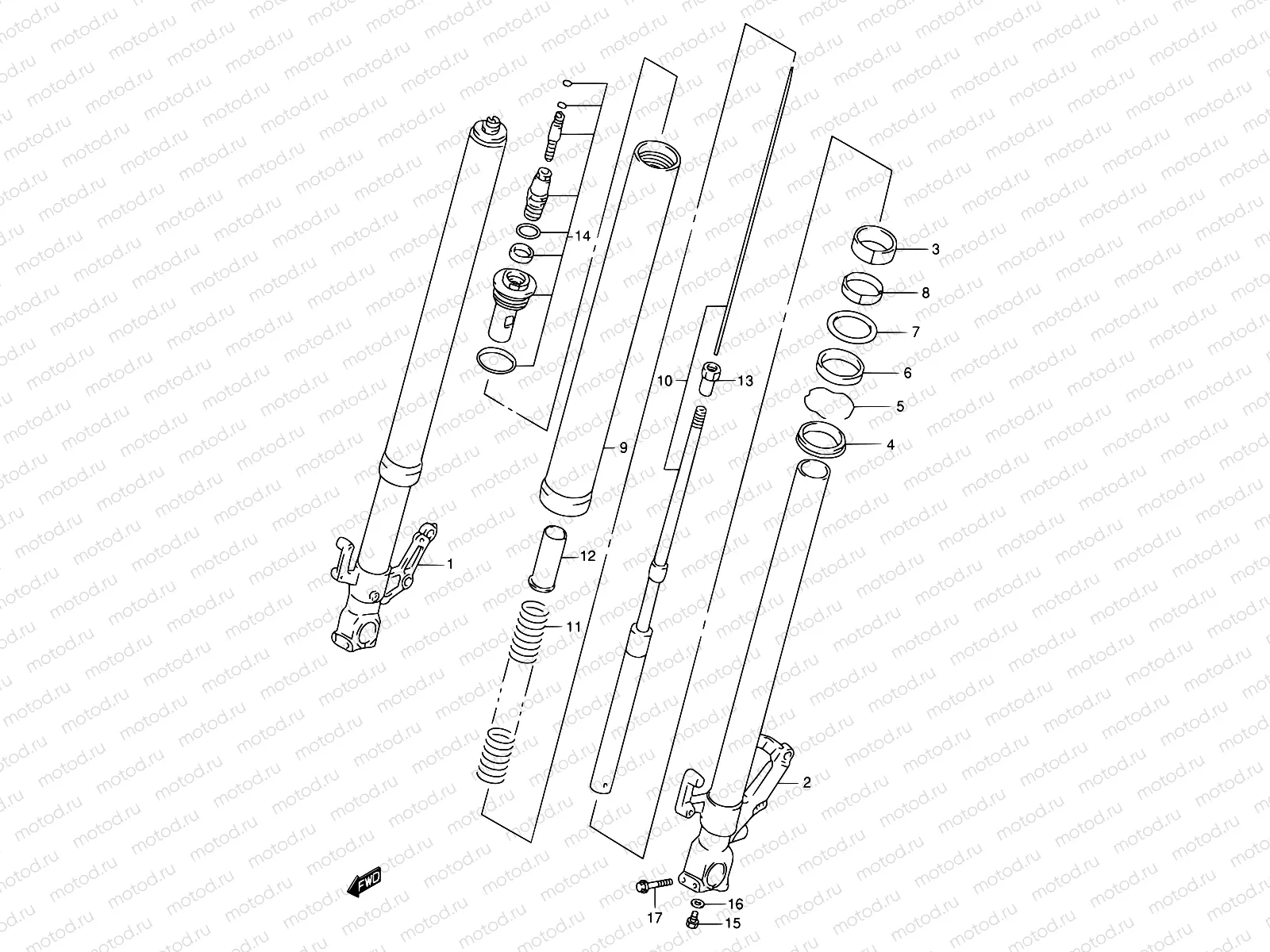

45 - FRONT DAMPER (MODEL V)

45 - FRONT DAMPER (MODEL V)
Например: 51103-02F00
0
51103-02F00
Damper assy, front fork rh
0
51104-02F00
Damper assy, front fork lh
1
51110-02F00
TUBE,INNER,R
56 848 ₽/шт
2
51120-02F00
TUBE,INNER,L
56 848 ₽/шт
3
51121-40C00
PISTON
824 ₽/шт
4
51173-46E20
Уплотнение
2 268 ₽/шт
5
51156-14200
Кольцо
1 195 ₽/шт
6
51153-46E20
Сальник
3 400 ₽/шт
7
51158-14200
Шайба
275 ₽/шт
8
51167-02F00
Металическая вставка
1 462 ₽/шт
9
51130-02F00
TUBE,OUTER
43 010 ₽/шт
10
51146-02F00
.cylinder
11
51171-02F00
.spring, front
12
51176-02F00
Entretoise
13
51129-27C00
Nut
14
51351-02F00
Cap, fork
15
51147-40C00
BOLT,OIL LOCK PIECE,12X22
2 423 ₽/шт
16
51148-40300
Прокладка
162 ₽/шт
17
01550-08457
Болт
113 ₽/шт
