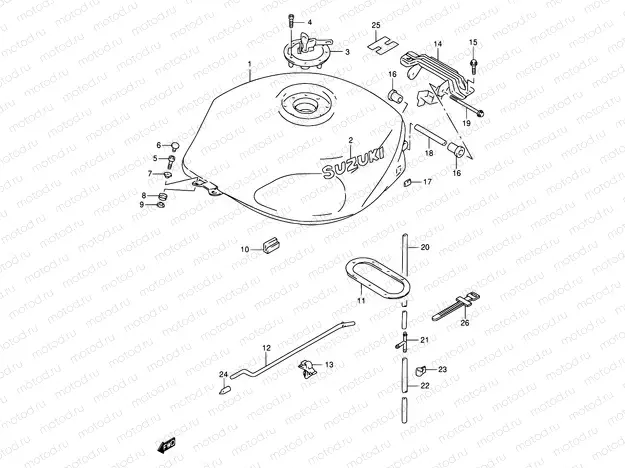

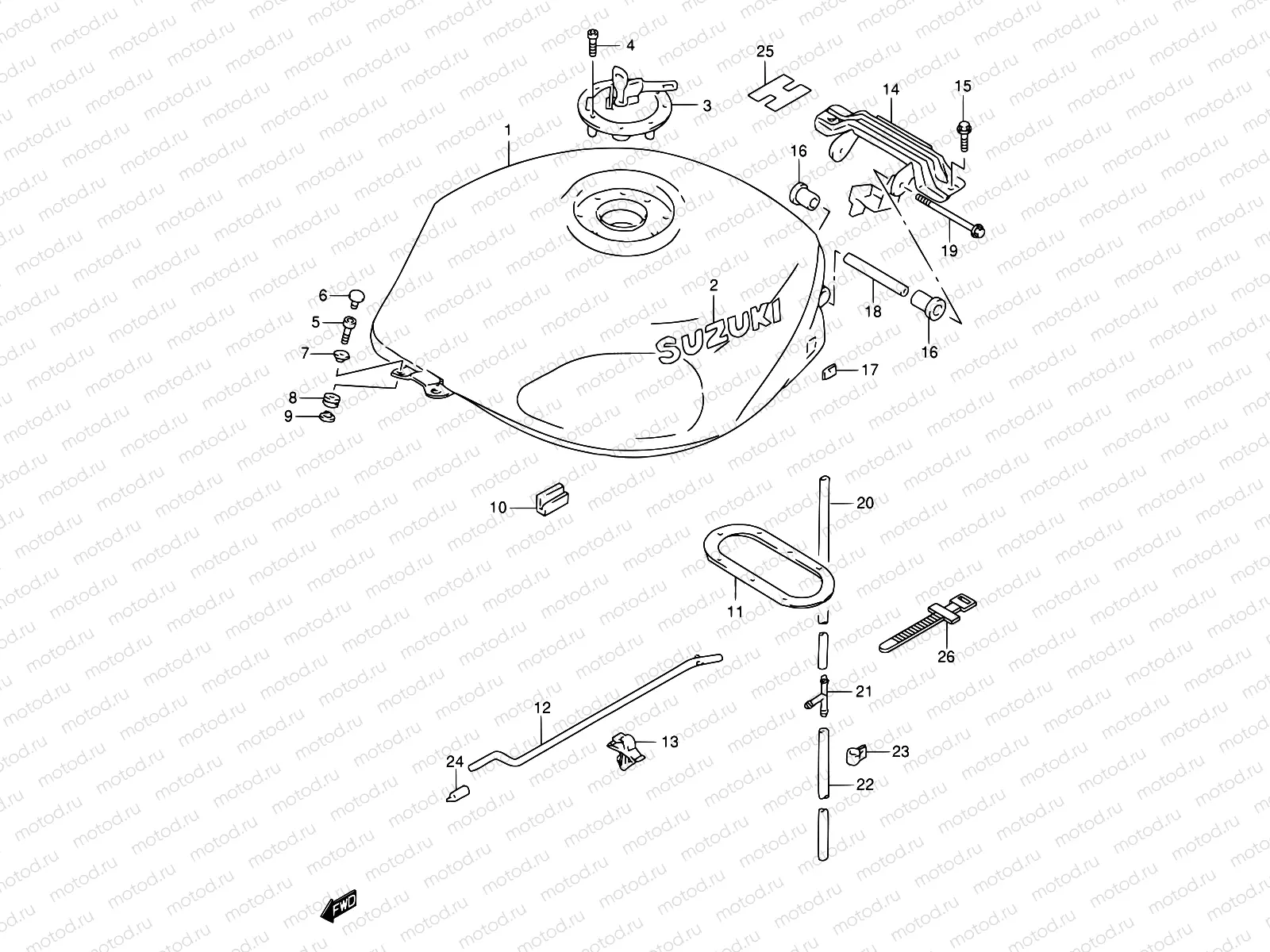

34 - FUEL TANK (MODEL V/W)

34 - FUEL TANK (MODEL V/W)
Например: 44100-02F0X-28V
1
44100-02F0X-28V
uel tank,mod.
1
44100-02F01-1UH
Tank assy,fuel(
1
44100-02F01-33J
Tank assy fuel
2
68111-12C30-20G
EMBLEM
1 713 ₽/шт
2
68111-12C30-0SF
Emblem
3
44200-33871
Cap set,fuel ta
4
09106-05017
БОЛТ
113 ₽/шт
5
07130-0665B
БОЛТ
129 ₽/шт
6
44514-02F00
CAP,BOLT
328 ₽/шт
7
09160-06084
Шайба 6.5X18X1
81 ₽/шт
8
09320-09009
РЕЗИНКА
187 ₽/шт
9
09169-06062
Кольцо/шайба
114 ₽/шт
10
44541-33E01
Cushion,fuel Tank Side
5 100 ₽/шт
11
44590-02831
PACKING SET,FUEL PUMP
17 673 ₽/шт
11
44597-02F00
Plate,fuel pump
12
44574-33E01
STAY,FUEL TANK
3 315 ₽/шт
13
09403-05310
CLAMP
2 030 ₽/шт
14
44550-02F01
BRACKET,FUEL TANK,REAR
15
01550-0816B
Болт крепёжный
97 ₽/шт
16
44541-02F01
Damper (Fuel tank)
17
44572-02F01
Защелка
782 ₽/шт
18
44561-33E00
Spacer, joint
19
01550-0895B
Болт
2 620 ₽/шт
20
09352-70104-600
Hose(7X10.2X600)
561 ₽/шт
21
09367-08005
Соединение 3-х стороннее
2 420 ₽/шт
22
09352-70104-600
Hose(7X10.2X600)
561 ₽/шт
23
09403-14408
CLAMP
3 870 ₽/шт
24
09251-05006
CAP(OD:11)
3 480 ₽/шт
25
44261-02F00
LABEL,FUEL TANK INNER
344 ₽/шт
