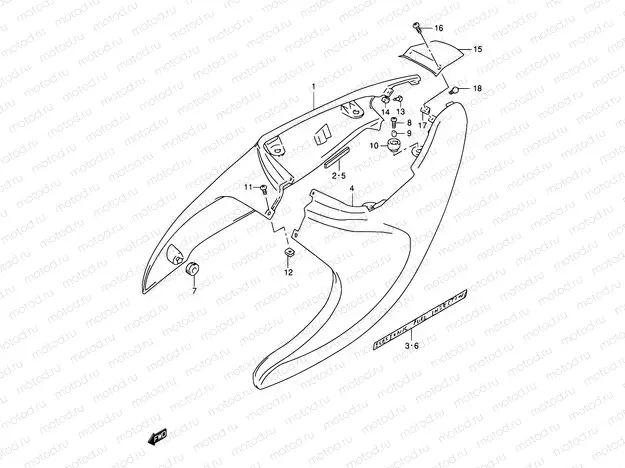

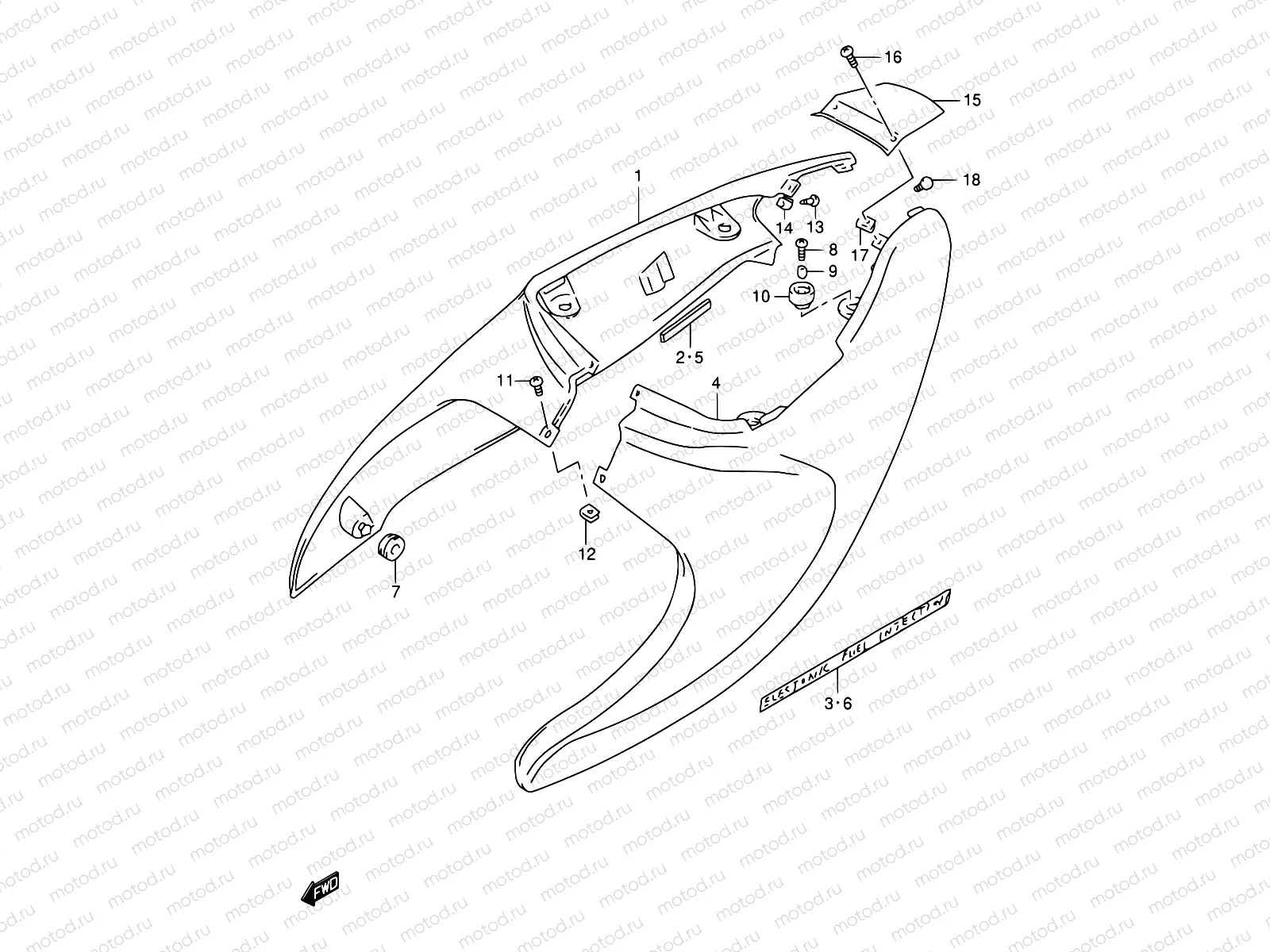

35 - FRAME COVER (MODEL V)

35 - FRAME COVER (MODEL V)
Например: 47110-02F00-28V
1
47110-02F00-28V
Cover, frame, r
1
47110-02F00-1UH
Cover, frame, r
1
47110-02F00-33J
Cover, frame, r
2
47161-02F00
Cushion
3
68131-02F00-H3Y
Emblem
3
68131-02F00-H3Z
Emblem
3
68131-02F00-3EE
mblem
4
47210-02F00-28V
Cover, frame, l
4
47210-02F00-1UH
Cover, frame lh (green)
4
47210-02F00-33J
Cover, frame, l
5
47161-02F00
Cushion
6
68131-02F00-H3Y
Emblem
6
68131-02F00-H3Z
Emblem
6
68131-02F00-3EE
mblem
7
09320-08527
Cushion
1 640 ₽/шт
8
09136-06105
Болт
129 ₽/шт
9
09180-06286
Кольцо/шайба
162 ₽/шт
10
09320-10045
CUSHION
210 ₽/шт
11
03241-M0512-A
Vis
12
09148-05038
ГАЙКА
97 ₽/шт
13
09136-05034
Винт 5X16
136 ₽/шт
14
09148-05038
ГАЙКА
97 ₽/шт
15
47311-02F00-28V
Cover,frame,cen
15
47311-02F00-1UH
Cover, frame center (green)
15
47311-02F00-33J
Cover,frame,cen
16
03541-1512B
Болт
81 ₽/шт
17
09148-05038
ГАЙКА
97 ₽/шт
18
47129-02F00
CUSHION
864 ₽/шт
