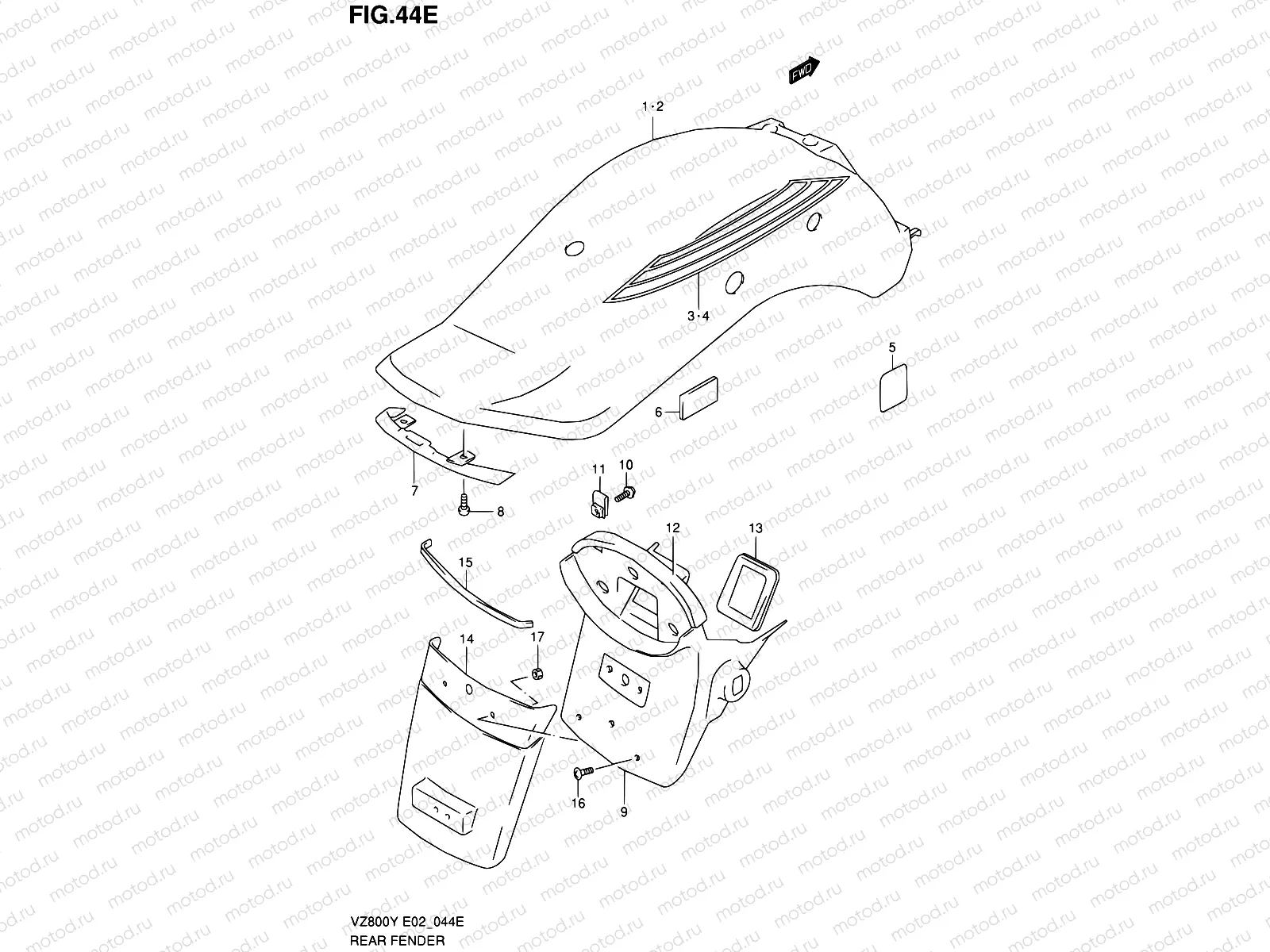

44E - REAR FENDER (MODEL K2/K3)

44E - REAR FENDER (MODEL K2/K3)

Например: 63110-48E10-33J

1

63110-48E10-33J

FENDER,REAR(BLACK)

2

63110-48EA0-1LF

REAR FENDER

3

68175-48E00-CN5

.tape, rh

3

68175-48E00-CY9

.tape, rh

4

68176-48E00-CN5

LH TAPE

4

68176-48E00-CY9

.tape, lh

5

61544-94500

Уплотнение

106 ₽/шт

6

09320-13015

CUSHION

204 ₽/шт

7

63112-48E00

COVER,RR FENDER RR

3 711 ₽/шт

8

03541-0512B

Винт

81 ₽/шт

9

63311-48E00

XTENSION,RR FENDER

15 257 ₽/шт

9

63311-48E20

xtension,rear

10

02162-0616B

Болт

85 ₽/шт

11

47153-19C01

PLATE,FRAME COVER

395 ₽/шт

12

63312-48E00

CUSHION,RR FENDER EXTENSION

583 ₽/шт

13

63191-48E01

Cap,rr Fender Extension

919 ₽/шт

14

63331-48E00

MUDGUARD,RR FENDER

1 748 ₽/шт

15

63332-48E00

Damper

16

02142-0616A

Болт

81 ₽/шт

17

09159-06024

Гайка

136 ₽/шт
