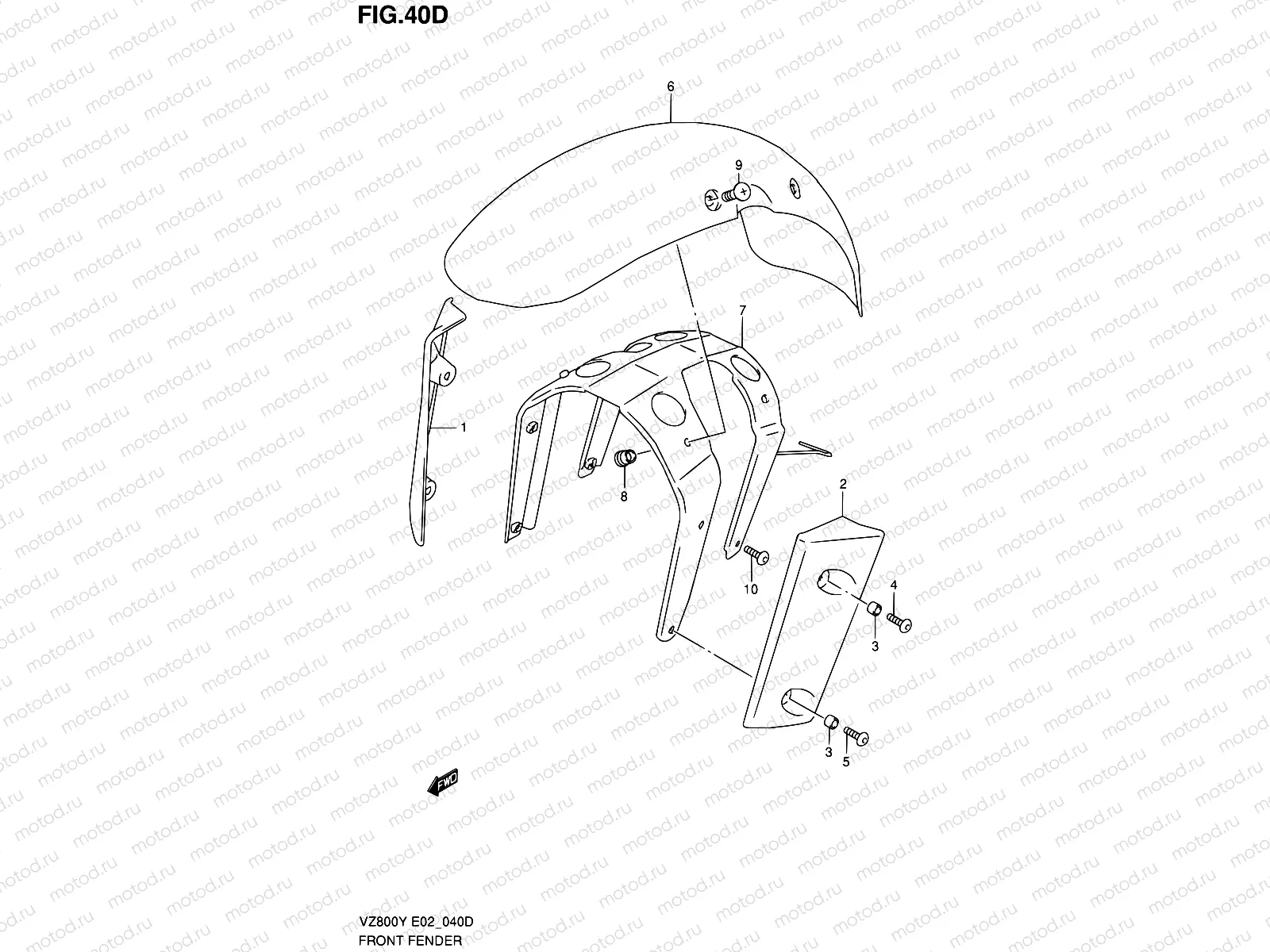

40D - FRONT FENDER (MODEL K1/K2/K3)

40D - FRONT FENDER (MODEL K1/K2/K3)

Например: 51881-48E01

1

51881-48E01

COVER,FR FORK SIDE,R

7 234 ₽/шт

2

51882-48E01

COVER,FR FORK SIDE,L

7 234 ₽/шт

3

09180-06245

SPACER(6.1X8X3.5)

162 ₽/шт

4

09139-06027

Винт (6х12)

194 ₽/шт

5

09139-06028

SCREW(6X20)

194 ₽/шт

6

53111-48E10-33J

КРЫЛО ПЕРЕДНЕЕ

19 198 ₽/шт

6

53111-48E10

FENDER,FR(NON PAINT)

6 882 ₽/шт

6

53111-48E10-YE2

Fender, front (maroon)

6

53111-48E10-1LF

ront mudguard

6

53111-48E10-YD8

FENDER,FR

19 198 ₽/шт

7

53120-48E00

Brace,fr.fender

8

53122-33D00

Гайка

516 ₽/шт

9

09139-06027

Винт (6х12)

194 ₽/шт

10

09139-06030

Винт (6X16)

194 ₽/шт
