Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VZ 800 Marauder SUZUKI VZ800 K2 Marauder SUZUKI (VIN: JS1AF111, JS1AF211, JS1VS53A) 35 - FOOTREST

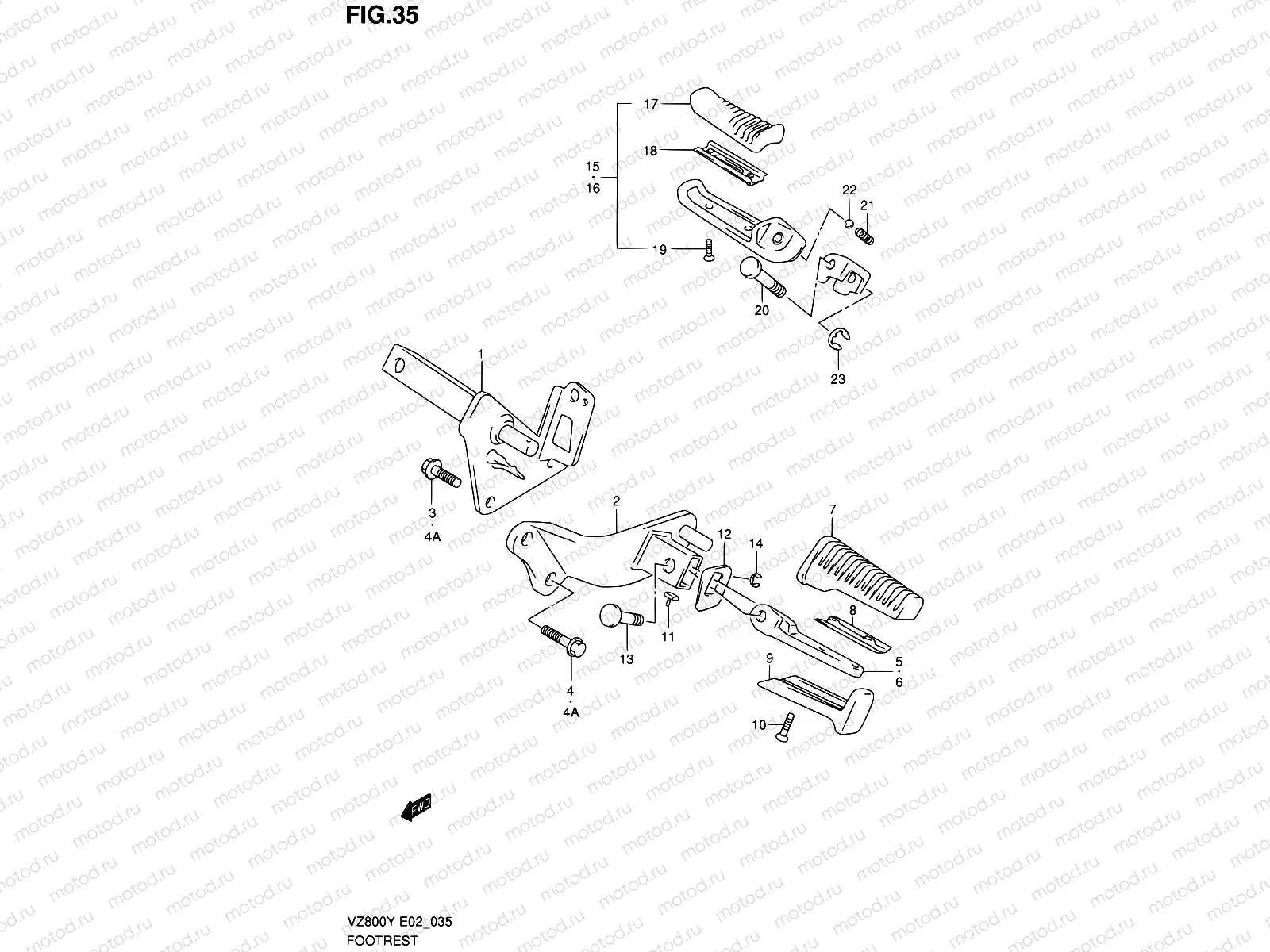

35 - FOOTREST

35 - FOOTREST

Например: 43510-48E20

1

43510-48E20

BRACKET,FR FOOTREST,R

24 633 ₽/шт

2

43520-48E20

BRACKET,FR FOOTREST,L

27 761 ₽/шт

4

01580-1035A

Болт

2 310 ₽/шт

5

43531-48E00

BAR,FR FOOTREST,R

3 187 ₽/шт

6

43541-48E00

BAR,FR FOOTREST,L

3 187 ₽/шт

7

43551-38B00

Rubber,fr footr

8

43580-38B10

PLATE,RUBBER STOPPER

653 ₽/шт

9

43585-38B11

COVER,FR FOOTREST

3 655 ₽/шт

10

09127-05018

Болт

179 ₽/шт

11

43571-48E01

Cushion,fr foot

12

43546-38B01

WASHER,FR FOOTREST

457 ₽/шт

13

09208-08011

ШТИФТ

1 720 ₽/шт

14

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

15

43600-38E01

Repose pieds (PILLION RH)

15

43600-48E10

FOOTREST ASSY,PILLION,R

8 289 ₽/шт

16

43700-38E01

Footrest Assy,pillion,l

11 645 ₽/шт

16

43700-48E11

Footrest assy,p

17

43612-38A10

Footrest rubber (pillion)

18

43632-38A00

PLATE,RUBBER STOPPER

368 ₽/шт

19

09127-05017

Болт

1 370 ₽/шт

20

09208-08011

ШТИФТ

1 720 ₽/шт

21

09440-05005

Пружина

113 ₽/шт

22

06111-07004

Шарик-защёлка №1

81 ₽/шт

23

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт
