Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 BK B-King SUZUKI GSX1300BK K8 B-King (E02) SUZUKI (VIN: JS1CR111) 44 - TOOL HOLDER

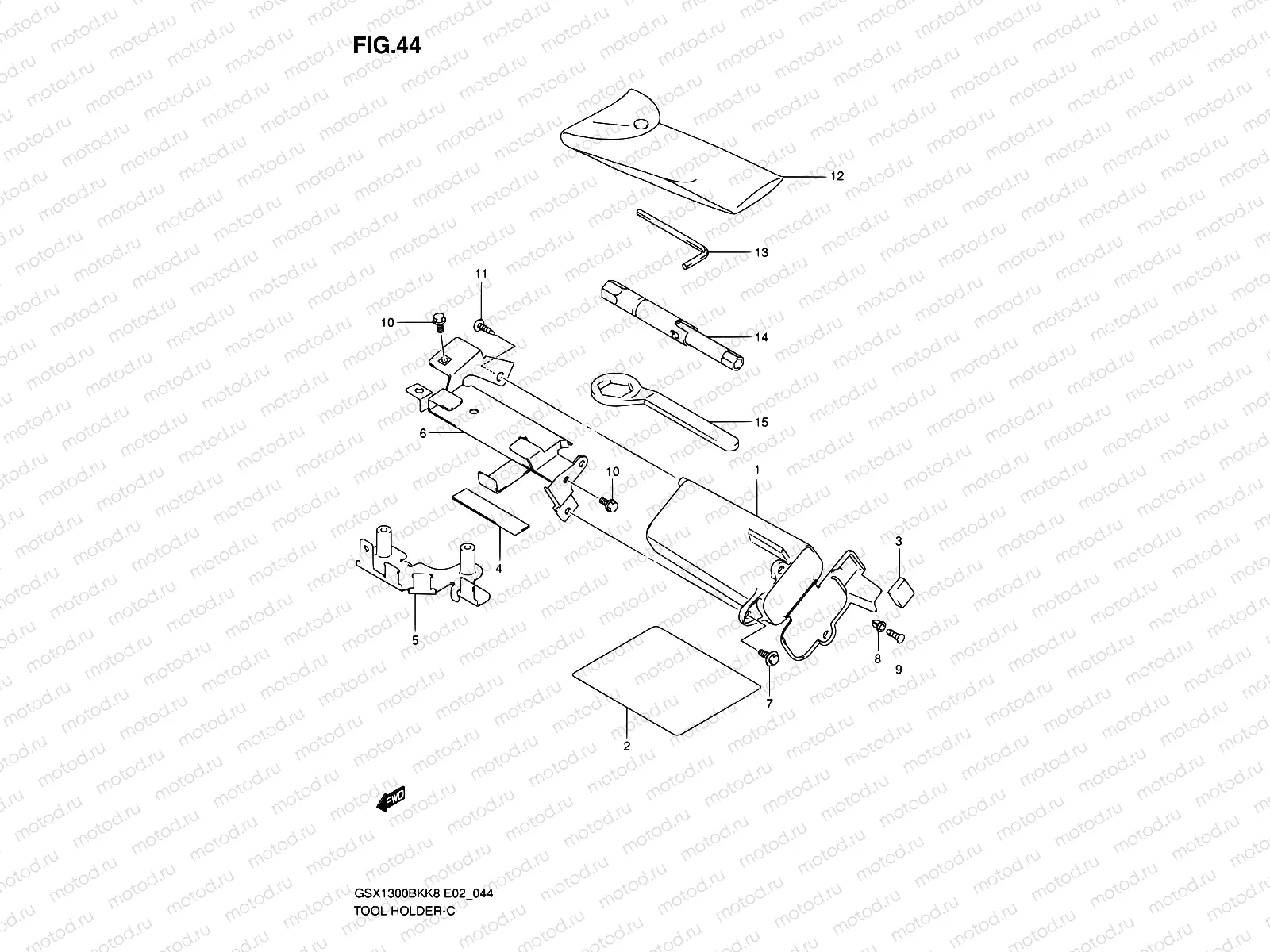

44 - TOOL HOLDER

44 - TOOL HOLDER

Например: 47435-23H00

1

47435-23H00

OLDER,TOOL

3 108 ₽/шт

2

47436-23H00

Shield, tool holder

3

47437-23H00

Cushion, tool holder lid

4

33652-07D00

КОЖУХ

299 ₽/шт

5

47800-23H00

OLDER ASSY,ELECTRIC PARTS

2 522 ₽/шт

6

47820-23H00

Bracket, tool holder

7

09111-06090

BOLT(6X16.5)

2 030 ₽/шт

8

09409-08329

ШАЙБА

119 ₽/шт

9

09409-08330

Плунжер

119 ₽/шт

10

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

11

03541-0516A

Болт

81 ₽/шт

12

09800-21102

Tool Assy

3 069 ₽/шт

13

09816-00050

SPANNER,HEXAGON(6)

391 ₽/шт

14

09816-00149

BOX,SPANNER

1 509 ₽/шт

15

09817-00034

RING SPANNER(36)

1 118 ₽/шт
