Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 BK B-King SUZUKI GSX1300BK K8 B-King (E02) SUZUKI (VIN: JS1CR111) 39 - FUEL TANK (MODEL K8/K9)

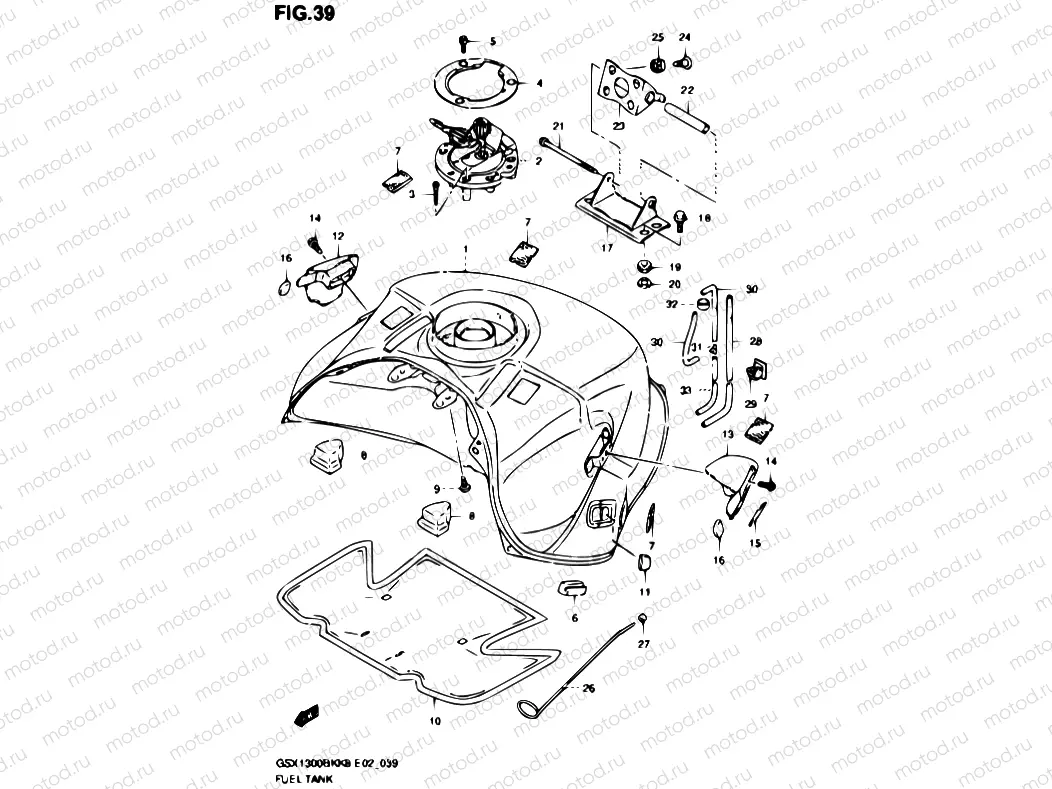

39 - FUEL TANK (MODEL K8/K9)

39 - FUEL TANK (MODEL K8/K9)

Например: 44100-23H11-YKY

1

44100-23H11-YKY

TANK ASSY,FUEL(BLUE)

139 987 ₽/шт

1

44100-23H11-YHF

Tank assy,fuel(

1

44100-23H10-YPA

Fuel tank (White)

1

44100-23H11-019

Fuel tank

1

44100-23H00-YPA

Tank assy, fuel (white)

2

44200-23840

CAP SET,FUEL TANK

21 701 ₽/шт

3

07130-0530B

БОЛТ

97 ₽/шт

4

44211-23H00

COVER,FUEL TANK CAP

7 116 ₽/шт

5

09106-05026

BOLT(5X12)

2 390 ₽/шт

6

44541-23H01

Cushion,fuel Tank Side

1 728 ₽/шт

7

44572-13G00

Защелка

662 ₽/шт

8

44542-23H01

Damper (rear)

9

09139-06172

Болт

1 840 ₽/шт

10

44192-23H00

SHIELD,FUEL TANK HEAT

6 882 ₽/шт

11

09329-18001

упругая прокладка подвеса

162 ₽/шт

12

44179-23H00

BRACKET,FUEL TANK COVER,R

1 892 ₽/шт

13

44189-23H00

BRACKET,FUEL TANK COVER,L

1 870 ₽/шт

14

09139-06172

Болт

1 840 ₽/шт

15

44183-23H00

упругая прокладка подвеса

408 ₽/шт

16

09329-18001

упругая прокладка подвеса

162 ₽/шт

17

44550-23H00

BRACKET,FUEL TANK NO.2

3 226 ₽/шт

18

09116-06192

БОЛТ

153 ₽/шт

19

09320-08001

Damper

20

09169-06062

Кольцо/шайба

114 ₽/шт

21

07120-0695B

OLT

2 580 ₽/шт

22

44561-18G00

Прокладка

1 079 ₽/шт

23

44530-41G01

BRACKET,FUEL TANK

2 229 ₽/шт

24

09139-06191

БОЛТ

172 ₽/шт

25

09320-08071

САЙЛЕНТБЛОК

255 ₽/шт

26

44560-23H00

STAY,FUEL TANK

2 346 ₽/шт

27

09320-05007

CUSHION

1 680 ₽/шт

28

44423-23H00

ose,fuel tank

29

09403-14311

Хомут

3 210 ₽/шт

30

44425-09E01

Hose,vacuum

544 ₽/шт

31

09367-06002

Соединение 3-х стороннее

179 ₽/шт

32

09352-13162-010

HOSE(13.5X16.5X10)

162 ₽/шт

33

09352-50005-600

ШЛАНГ

436 ₽/шт
