Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 BK B-King SUZUKI GSX1300BK K8 B-King (E02) SUZUKI (VIN: JS1CR111) 40 - FUEL TANK FRONT BRACKET (MODEL K8/K9)

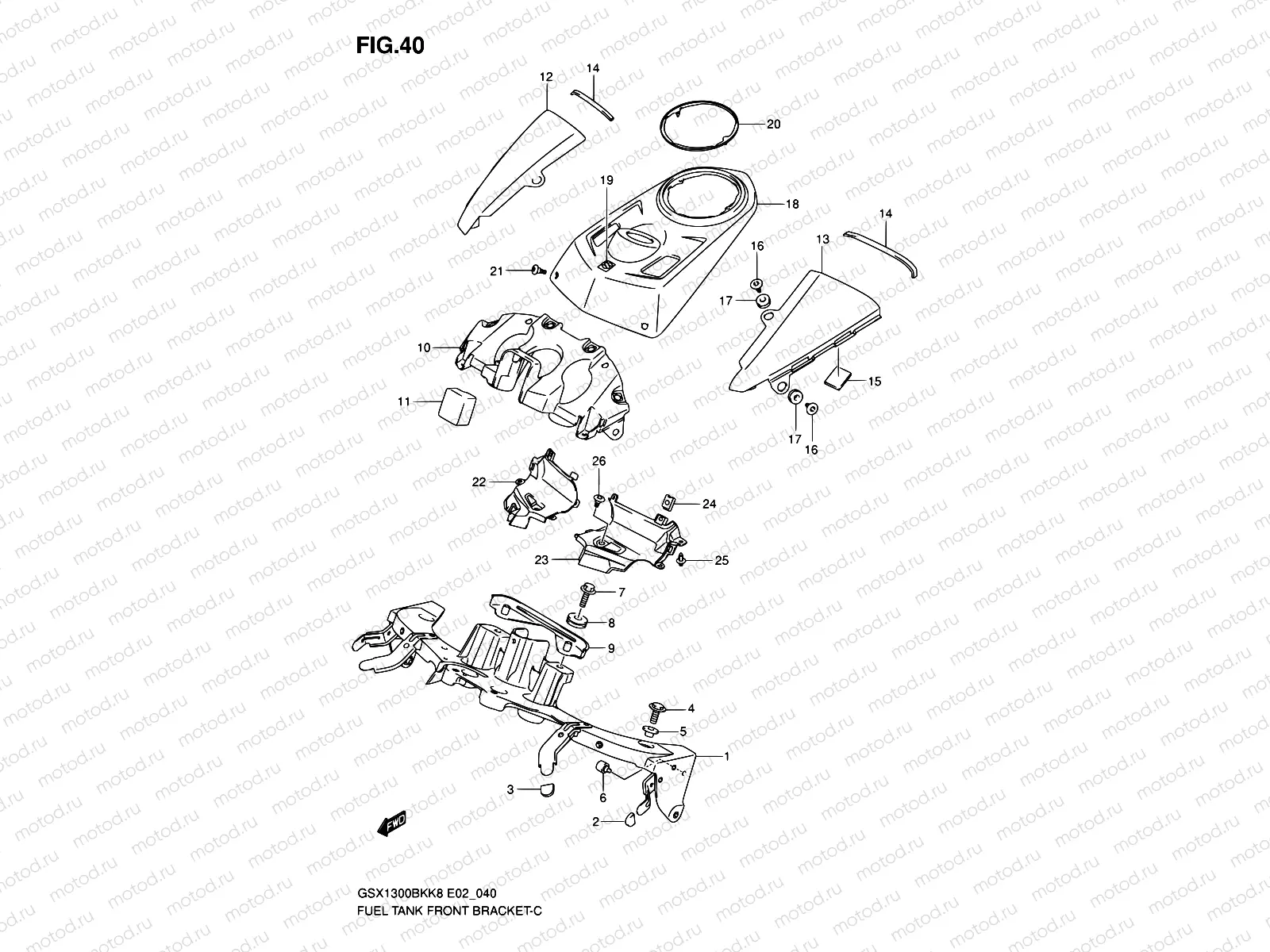

40 - FUEL TANK FRONT BRACKET (MODEL K8/K9)

40 - FUEL TANK FRONT BRACKET (MODEL K8/K9)

Например: 44160-23H01

1

44160-23H01

Bracket,fuel Tank Cover

57 460 ₽/шт

2

09329-18001

упругая прокладка подвеса

162 ₽/шт

3

44169-23H01

Cushion,tank Cover Bracket

700 ₽/шт

4

01550-0620B

БОЛТ

81 ₽/шт

5

09169-06081

Шайба

2 070 ₽/шт

6

44163-23H00

CUSHION,BRACE

1 638 ₽/шт

7

09116-06195

BOLT(6X35)

146 ₽/шт

8

44511-10G10

CUSHION,FUEL TANK RR

379 ₽/шт

9

44510-23H00

Шайба

2 326 ₽/шт

10

44520-23H00

BRACKET,FUEL TANK FR

19 042 ₽/шт

11

44543-23H00

Damper

12

44251-23H00-019

COVER,FUEL TANK UPR,R

35 581 ₽/шт

12

44251-23H00-YHF

COVER,FUEL TANK UPR,R

35 386 ₽/шт

12

44251-23H00-YPA

Cover,fuel tank

13

44261-23H00-019

COVER,FUEL TANK UPR,L

35 581 ₽/шт

13

44261-23H00-YHF

COVER,FUEL TANK UPR,L

32 453 ₽/шт

13

44261-23H00-YPA

Cover,fuel tank

14

44278-23H00

CUSHION,UPR COVER

364 ₽/шт

15

44572-13G00

Защелка

662 ₽/шт

16

09139-05078

Болт

2 030 ₽/шт

17

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

18

44191-23H00

COVER,FUEL TANK UPR

100 810 ₽/шт

19

68281-35F00

Эмблема

791 ₽/шт

20

44295-23H00

RUBBER,FUEL TANK UPR COVER

934 ₽/шт

21

09139-05064

Болт

162 ₽/шт

22

44291-23H00

COVER,FUEL TANK CTR,R

6 569 ₽/шт

22

44291-23H10

COVER,FUEL TANK CTR,R

6 569 ₽/шт

23

44292-23H00

COVER,FUEL TANK CTR,L

6 569 ₽/шт

24

09148-05052

Гайка

129 ₽/шт

25

09409-06329

Клипса

162 ₽/шт

26

09139-05074

Болт №1

136 ₽/шт
