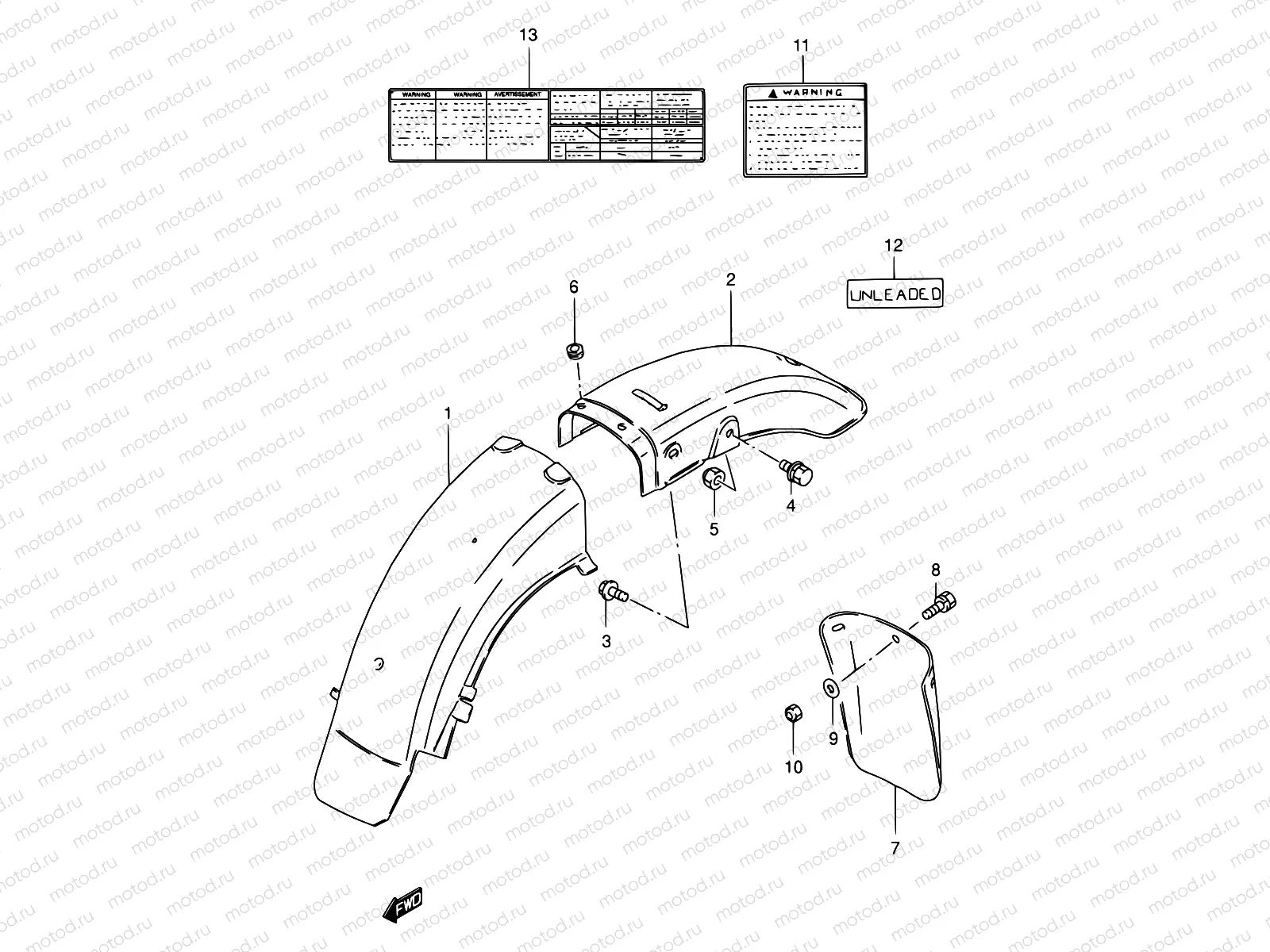

43A - REAR FENDER (MODEL Y)

43A - REAR FENDER (MODEL Y)

Например: 63112-38302

1

63112-38302

BODY,FR

4 145 ₽/шт

2

63110-38313

FENDER,RR

27 710 ₽/шт

2

63110-38323

FENDER,RR

29 912 ₽/шт

2

63110-38333

Rear fender

3

01580-0616A

БОЛТ

102 ₽/шт

4

01500-0820A

Болт

85 ₽/шт

5

08316-1008B

Гайка

81 ₽/шт

6

09320-06504

САЙЛЕНТБЛОК

194 ₽/шт

7

63331-33601

Mud guard,rear

8

01550-0616B

БОЛТ

81 ₽/шт

9

09160-06084

Шайба 6.5X18X1

81 ₽/шт

10

08319-2106A

Гайка

114 ₽/шт

11

68319-33E02

Label,general Warning

1 155 ₽/шт

11

68319-33E42

Label,general w

11

68319-33E52

Label,general w

11

68319-33E32

Label,general w

11

68319-33E71

Label,general w

11

68319-41DE0

Label, warning

12

68623-14F01

Label,fuel Caution

187 ₽/шт

13

68332-38330

Label, tire information

13

68332-38310

Label, tire information

13

68332-38320

Label, tire information

14

99011-38334-DGS

Manual, owner's
