Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 250 SUZUKI GN250E Y SUZUKI 27 - REAR COMBINATION LAMP (MODEL T/W/X E22)

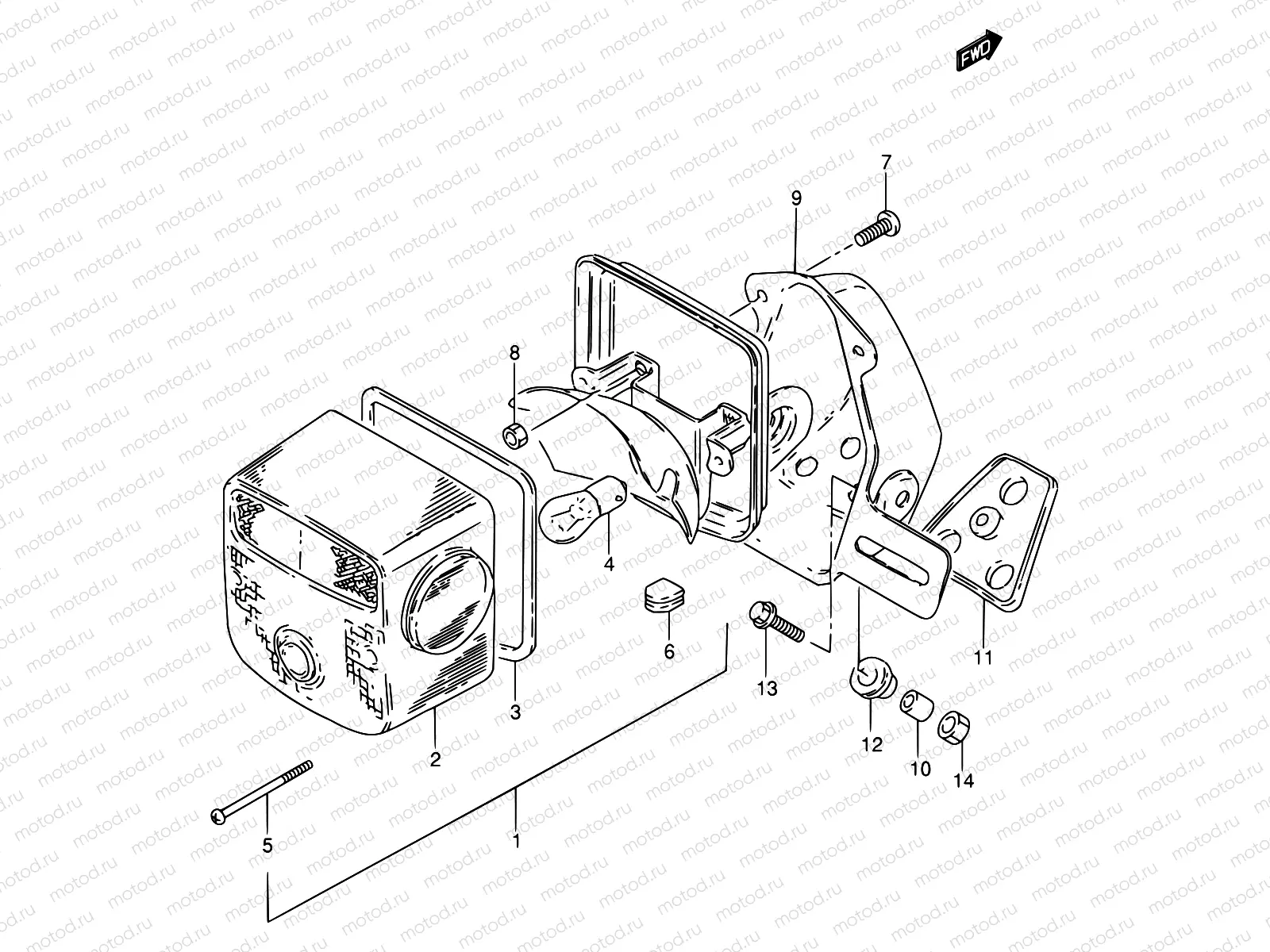

27 - REAR COMBINATION LAMP (MODEL T/W/X E22)

27 - REAR COMBINATION LAMP (MODEL T/W/X E22)

Например: 35710-38300

1

35710-38300

LAMP ASSY,RR COMBINATION

18 064 ₽/шт

2

35712-38350

Линза

10 965 ₽/шт

3

35713-30510

Gasket

4

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

5

02112-04558

Болт

82 ₽/шт

6

35728-30640

.grommet

7

02112-3616A

Болт

1 210 ₽/шт

8

08310-00067

Гайка

81 ₽/шт

9

35730-38390

Bracket gn125

10

35766-26470

Кольцо/шайба

141 ₽/шт

11

35765-26470

CUSHION

555 ₽/шт

12

35764-26470

CUSHION

172 ₽/шт

13

09116-06167

БОЛТ

145 ₽/шт

14

08310-0006B

Гайка

81 ₽/шт
