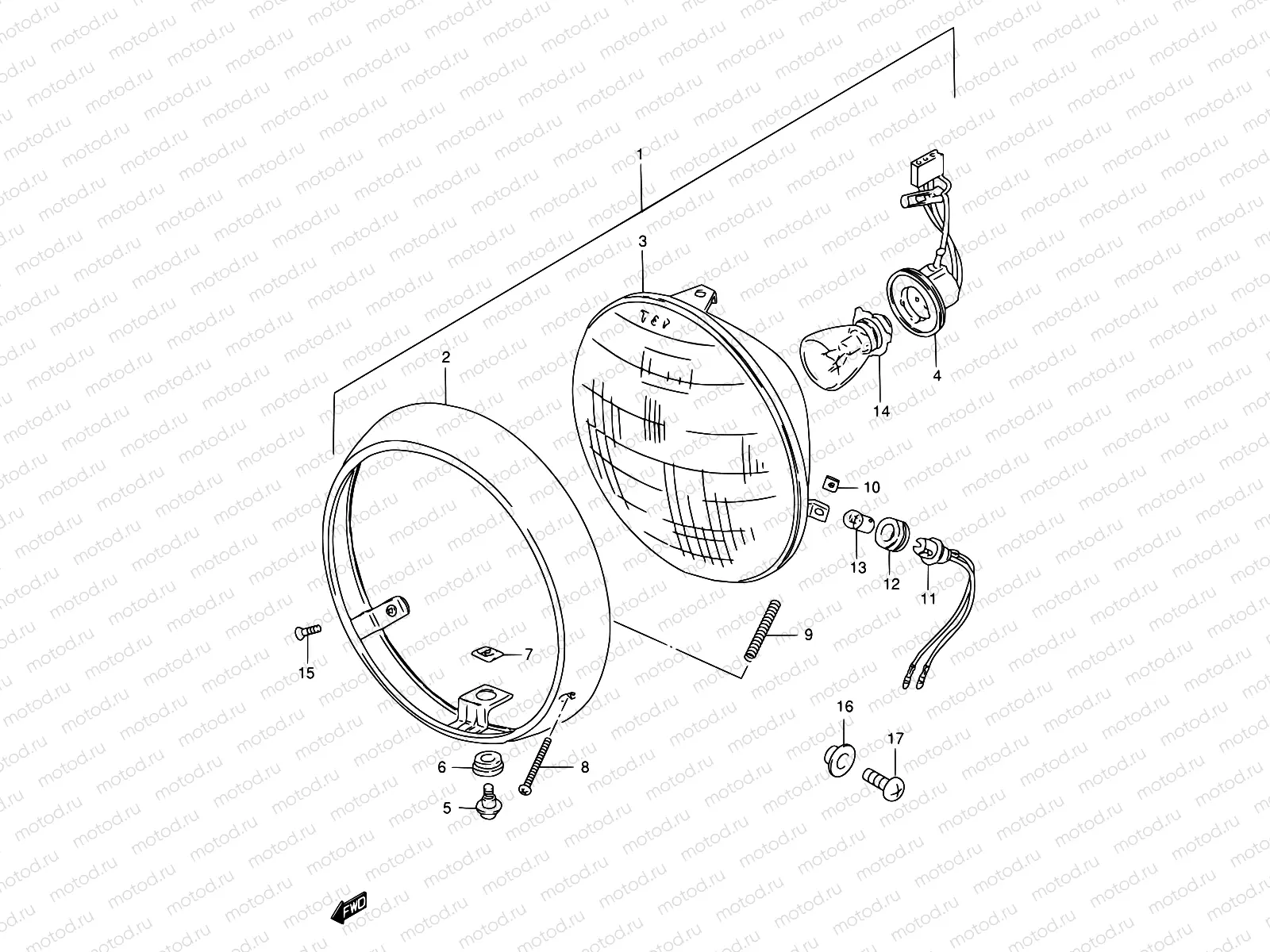

22B - HEADLAMP (MODEL Y/K1 E71)

22B - HEADLAMP (MODEL Y/K1 E71)

Например: 35100-38300

1

35100-38300

Headlamp assy

2

35111-45231

Rim,headlamp

3

35121-38300

LAMP UNIT

4

35171-36X50

SOCKET,HEADLAMP

1 263 ₽/шт

5

35136-38A00

Болт

207 ₽/шт

6

35139-45230

CUSHION

102 ₽/шт

7

35155-48510

Гайка

129 ₽/шт

8

35151-38A00

Винт настройки

184 ₽/шт

9

35154-48510

Пружина

250 ₽/шт

10

35135-45600

Гайка

207 ₽/шт

11

36118-49320

SOCKET

864 ₽/шт

12

36116-22630

JOINT,RUBBER

422 ₽/шт

13

09471-12001-LCP

Bulb 6v/1,7w

14

09471-12080

BULB(12V45/45W,STANLEY,70281A)

7 040 ₽/шт

15

09126-05003

Болт

179 ₽/шт

16

09169-05008

Шайба

162 ₽/шт

17

02142-05087

Винт 5X8 CROSS

85 ₽/шт
