Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 450 SUZUKI GS450L X SUZUKI 42 - STAND - REAR BRAKE

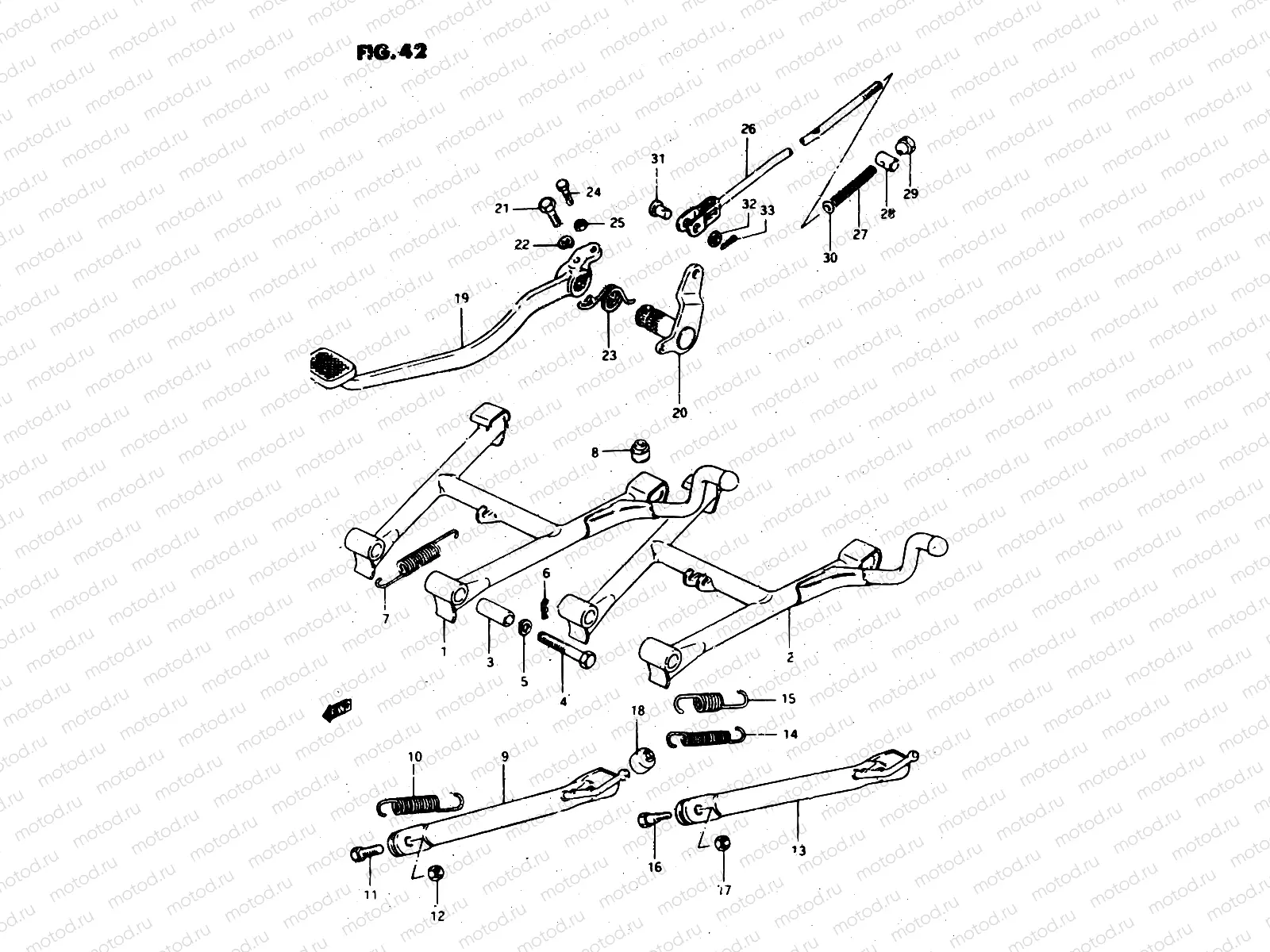

42 - STAND - REAR BRAKE

42 - STAND - REAR BRAKE

Например: 42100-44100

1

42100-44100

Béquille centrale

2

42100-44310

3

09180-10040

SPACER(10X16X38.8)

1 600 ₽/шт

4

09101-10030-XC0

Vis

5

08321-01107

Шайба, стопорная

85 ₽/шт

6

09385-10005

Крепёж

900 ₽/шт

7

09443-18006-XC0

Пружина

3 750 ₽/шт

8

09321-10001

CUSHION

187 ₽/шт

9

42310-44300

Béquille latérale

10

09443-17008-XC0

Пружина

5 040 ₽/шт

11

09100-10067

BOLT(10X30)

162 ₽/шт

12

08310-00107

Гайка

85 ₽/шт

13

42310-44110

Stand, prop

14

09443-11008

SPRING

3 640 ₽/шт

15

09443-19002-XC0

Пружина

2 740 ₽/шт

16

09111-10047

Болт

187 ₽/шт

17

08310-00107

Гайка

85 ₽/шт

18

09320-07001

САЙЛЕНТБЛОК

187 ₽/шт

19

43110-44200

Pedal, brake

20

43120-44200

Arm, brake pedal rod

21

01107-08298

Vis

22

08321-01087

Пластина замка

81 ₽/шт

23

09448-37016

Spring

24

01500-06207

Болт

81 ₽/шт

25

08310-00067

Гайка

81 ₽/шт

26

43300-44200

Rod assy, rear brake

26

43300-44210

Rod assy, rear brake

27

09440-09004

SPRING

129 ₽/шт

28

09209-13018

Стопор

204 ₽/шт

29

09150-06010

Гайка

194 ₽/шт

30

08322-0106A

Шайба

81 ₽/шт

31

09200-06013

PIN(L:13.5)

194 ₽/шт

32

08322-0106A

Шайба

81 ₽/шт

33

04111-2020A

Штифт

81 ₽/шт
