Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 450 SUZUKI GS450L X SUZUKI 39 - ELECTRICAL

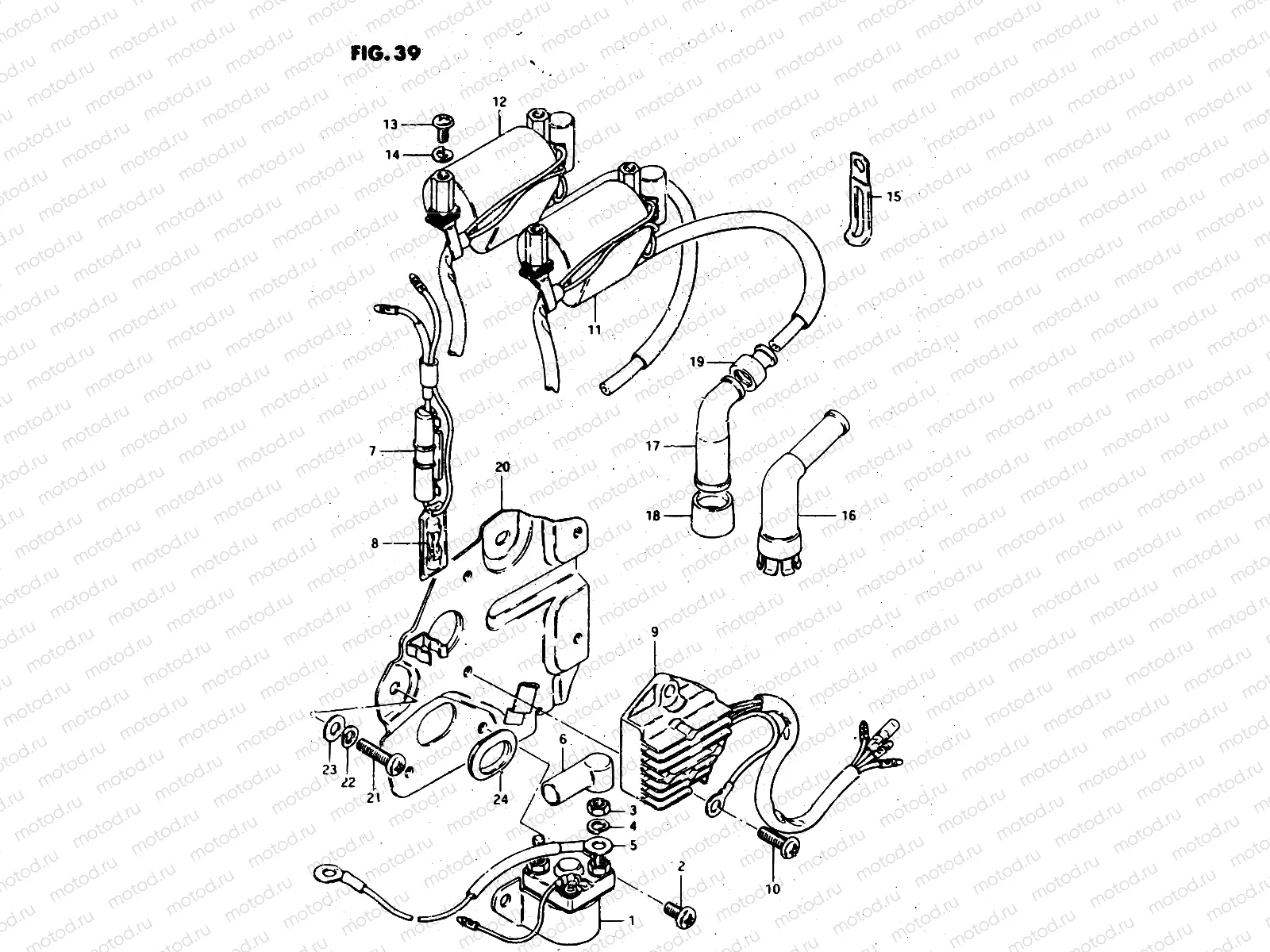

39 - ELECTRICAL

39 - ELECTRICAL

Например: 31800-37021

1

31800-37021

Relay Assy,starting Motor

5 573 ₽/шт

2

02112-06087

Винт крестовый 6x8

82 ₽/шт

3

08310-00067

Гайка

81 ₽/шт

4

08321-01067

Шайба, стопорная

81 ₽/шт

5

33850-03201

LEAD WIRE,BATTERY(-)

805 ₽/шт

6

31861-48B10

Крышка

344 ₽/шт

7

36740-15011

Предохранитель

790 ₽/шт

8

09481-15001

Предохранитель 15A

136 ₽/шт

9

32800-47121

Régulateur de tension

10

02112-3616A

Болт

1 210 ₽/шт

10

02112-0616A

Болт

81 ₽/шт

11

33410-11420

Coil, ignition lh

11

33410-44X50

Bobine d'allumage

12

33420-11420

Coil, ignition rh

12

33410-44X50

Bobine d'allumage

13

02142-0510A

Болт

82 ₽/шт

13

02112-0510B

Болт

85 ₽/шт

14

08321-0105A

Пластина замка

81 ₽/шт

15

09404-06039

Clamp(L:65)

194 ₽/шт

16

33510-44600

Cap, spark plug

17

33510-43010

Свечной колпачок

2 040 ₽/шт

18

33541-69010

Уплотнение свечи зажигания

517 ₽/шт

19

33542-38B00

Уплотнение

162 ₽/шт

20

47410-44101

Plate, parts holder

21

02112-06207

ШАЙБА

85 ₽/шт

22

08321-01067

Шайба, стопорная

81 ₽/шт

23

08322-0106A

Шайба

81 ₽/шт

24

09308-19001

GROMMET

2 460 ₽/шт
