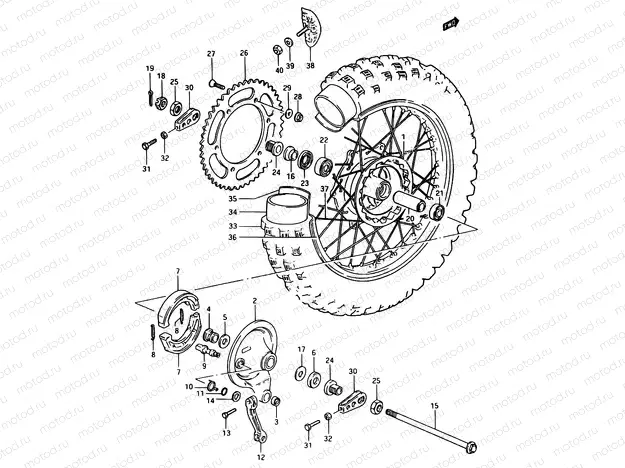

42 - REAR WHEEL (MODEL E)

42 - REAR WHEEL (MODEL E)
Например: 64110-14240
1
64110-14240
Hub, rear wheel
2
64200-14860
Panel, rear hub
3
64352-40401
Roulement
4
64213-14600
Spacer, panel
5
09285-24001
Уплотнение
275 ₽/шт
6
64845-37200
Couvrir
7
64400-40810
SHOE SET,BRAKE
3 284 ₽/шт
8
64430-14600
Пружина
356 ₽/шт
9
54441-14101
CAM,FR BRAKE
1 572 ₽/шт
10
09448-30007-XC0
Пружина
1 008 ₽/шт
11
09280-12001
O RING(D:2.5,ID:11.4)
1 020 ₽/шт
12
64451-14100
Lever,rr brake
13
09118-06086
Болт 6X25
1 680 ₽/шт
14
09160-12011
Уплотнение
97 ₽/шт
15
64711-14600
Axle, rear
16
64751-14240
Spacer, axle lh
17
08211-17361
WASHER
1 370 ₽/шт
18
08314-4016B
Гайка
2 620 ₽/шт
19
04111-4030A
Шпонка
85 ₽/шт
20
64730-14240
Spacer, hub bearing
21
08133-6203B
earing
1 394 ₽/шт
22
09267-17001
Bearing, lh
23
09284-25003
Oil seal, lh
24
64781-40600
Spacer,chain ad
25
09140-24007
ШАЙБА
2 390 ₽/шт
26
64511-14220
Sprocket, rear (nt:46)
27
09120-08009
SCREW(8X40)
2 230 ₽/шт
28
08319-31087
Гайка
178 ₽/шт
29
08322-01087
Шайба
81 ₽/шт
30
61410-40600
Adjuster,chain
31
09104-08034
BOLT
1 840 ₽/шт
32
08310-00087
Гайка 8MM
81 ₽/шт
33
65100-14300
Tire (140/80-18)
34
65200-14600
Tube, wheel inner
35
65261-33030
PROTECTOR,INNER TUBE
364 ₽/шт
36
65311-14240
Rim, wheel (250x18)
37
65320-14230
Spoke assy, rear
38
65270-14600
Stopper bead
39
08322-01087
Шайба
81 ₽/шт
40
08310-00087
Гайка 8MM
81 ₽/шт
