Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI RM 500 SUZUKI RM500 E SUZUKI 4 - CRANKSHAFT

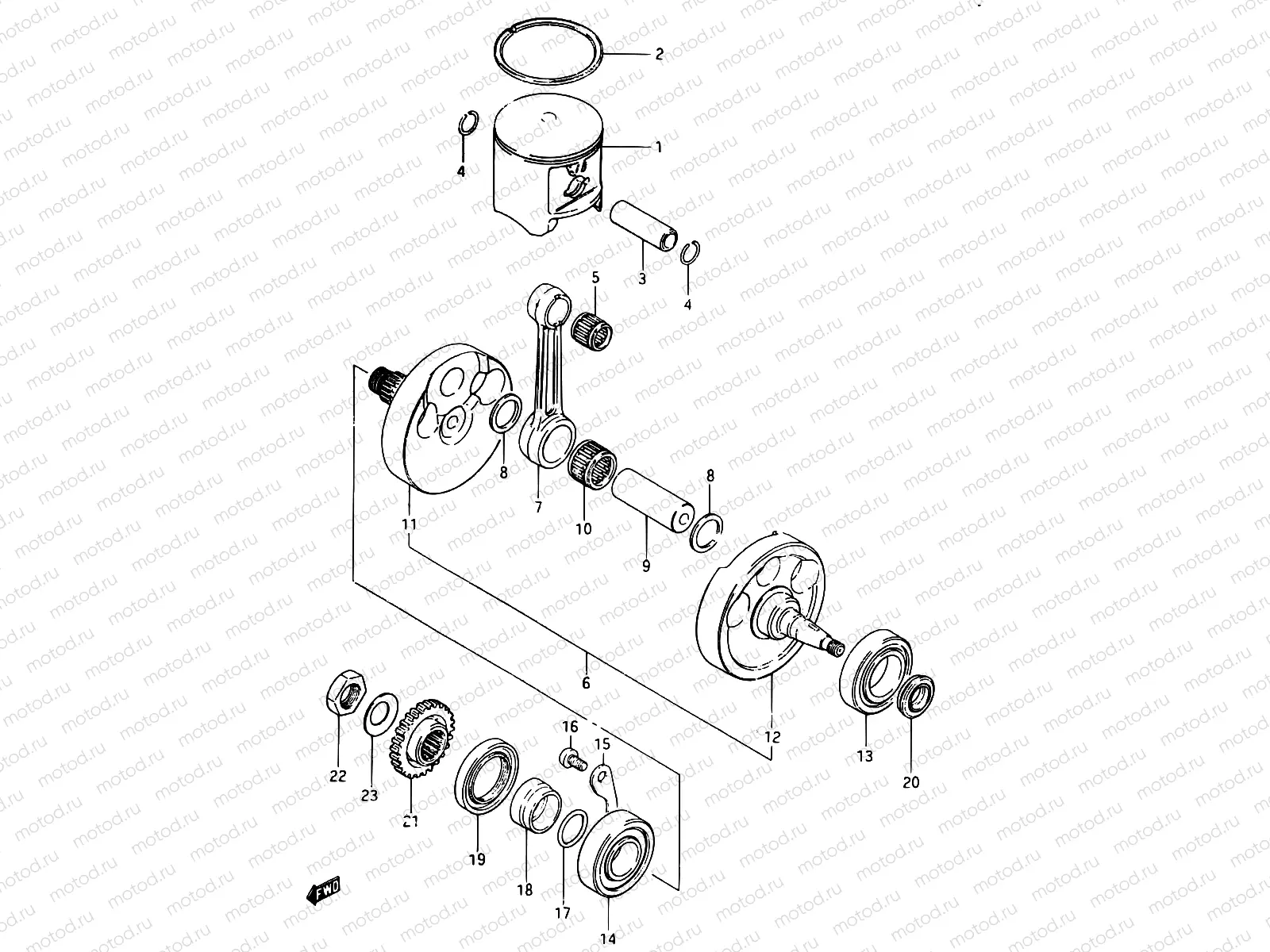

4 - CRANKSHAFT

4 - CRANKSHAFT
Например: 12110-14221
1
12110-14221
Piston (STD)
1
12103-14820-050
PISTON SET(OS:0.5)
59 466 ₽/шт
1
12103-14820-025
2
12141-14240
RING,PISTON
3 304 ₽/шт
2
12141-14240-025
Ring, piston (os:0.25)
2
12141-14240-050
Ring, piston (os:0.50)
3
12151-13A00-0A0
Палец поршневой
1 337 ₽/шт
4
09381-18002
Стопор
119 ₽/шт
5
09263-18016
Подшипник 18X23X22
1 156 ₽/шт
6
12200-14230
Vilebrequin
7
12161-14220
.rod, connecting
8
09160-26004
Rondelle
9
12211-14220
.pin, crank
10
09263-26014
.bearing
11
12221-14230
.crankshaft, rh
12
12261-14230
.crankshaft, lh
13
09262-35038
Подшипник B1 35X72X17
2 342 ₽/шт
14
09262-30077-000
Подшипник B1 30X72X19
4 165 ₽/шт
15
12541-14210
Plate, bearing rh
16
02112-0610B
Винт
81 ₽/шт
17
09280-28005
O RING(D:2.4,ID:27.7)
1 410 ₽/шт
18
12359-14220
Spacer
19
09289-37001
Oil seal
20
09283-20034
Сальник
678 ₽/шт
21
21111-14210
Gear, primary drive (nt:26)
22
09140-20013
Гайка
2 540 ₽/шт
23
09164-20003
Пластина замка
1 840 ₽/шт
