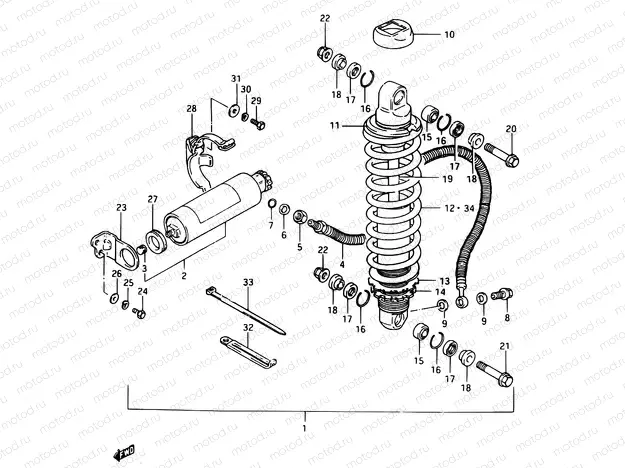

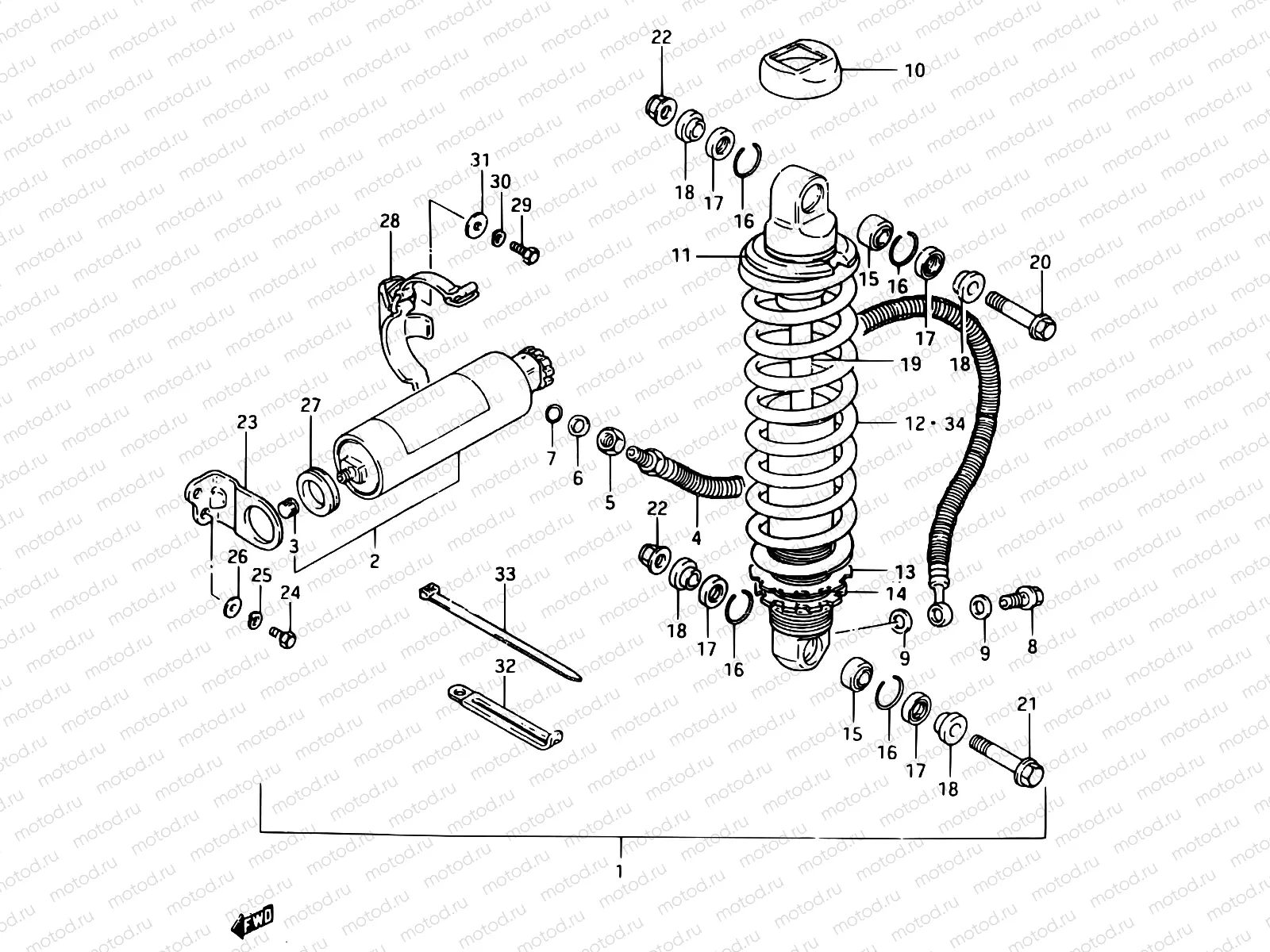

36 - SHOCK ABSORBER (MODEL E)

36 - SHOCK ABSORBER (MODEL E)
Например: 62100-14280
1
62100-14280
Shock absorber, rear
2
62270-14280
.tank
3
51294-20400
CAP
368 ₽/шт
4
62280-14270
.hose
5
09140-12039
Гайка
187 ₽/шт
6
62285-14100
.washer
7
62154-40200
.o ring
8
62281-14140
.bolt
9
51148-41310
GASKET
170 ₽/шт
10
62179-14330
.cap
11
62194-14331
.spring guide
12
62211-14280
.spring
13
62191-14600
.spring guide
14
62194-14600
.nut
15
62175-00B00
EARING,RR CUSHION LEVER
5 525 ₽/шт
16
62657-34A01
Кольцо
170 ₽/шт
17
62226-43410
SEAL,DUST
626 ₽/шт
18
62684-43401
SPACER
547 ₽/шт
19
62120-14610
Piston rod
20
09103-10428
BOLT(10X58)
485 ₽/шт
21
09103-10027
BOLT(10X58)
2 310 ₽/шт
22
08319-31107
Гайка
210 ₽/шт
23
62411-14200
Bracket, front
24
01500-06127
Болт
81 ₽/шт
25
08321-01067
Шайба, стопорная
81 ₽/шт
26
08322-0106A
Шайба
81 ₽/шт
27
62423-14211
Cushion
28
62420-14231
Bracket, rear
29
01107-06168
Vis
30
08321-01067
Шайба, стопорная
81 ₽/шт
31
09160-06084
Шайба 6.5X18X1
81 ₽/шт
32
09404-06036
Clamp(L:80)
194 ₽/шт
33
09407-25402
CLAMP(L:250)
238 ₽/шт
34
62211-14287
Spring (hard)
34
62211-14285
Spring (soft)
