Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 600 Bandit SUZUKI GSF600 X Bandit SUZUKI (VIN: JS1GN77A) 41A - REAR FENDER (MODEL T/V/W/X)

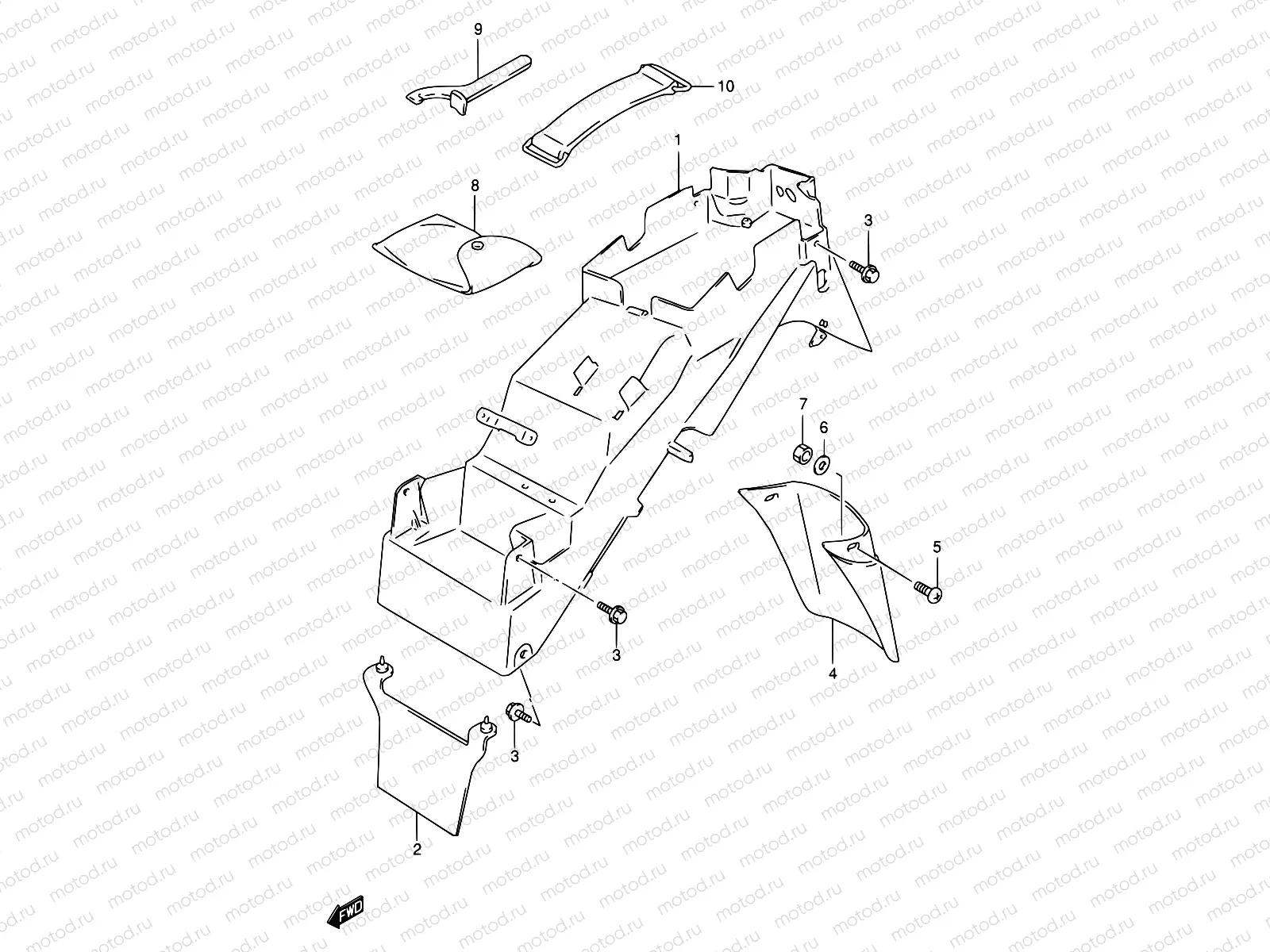

41A - REAR FENDER (MODEL T/V/W/X)

41A - REAR FENDER (MODEL T/V/W/X)

Например: 63110-26E21

1

63110-26E21

Fender,rear

2

63411-26E00

Mudguard, rear fender

3

09111-06066

БОЛТ

102 ₽/шт

4

63310-26E00

XTENSION,RR FENDER

2 757 ₽/шт

4

63310-26E10

xt. rr. fender

5

02142-0616A

Болт

81 ₽/шт

6

09160-06084

Шайба 6.5X18X1

81 ₽/шт

7

08319-2106A

Гайка

114 ₽/шт

8

09800-21037

Tool assy

9

09822-00005

CLAMP

845 ₽/шт

10

09462-00034

ХОМУТ

510 ₽/шт

Узлы для GSF600 X Bandit SUZUKI (VIN: JS1GN77A)

1 - CYLINDER HEAD COVER

1 - CYLINDER HEAD COVER

2 - CYLINDER HEAD

2 - CYLINDER HEAD

5 - CRANKCASE COVER

5 - CRANKCASE COVER

9 - STARTER CLUTCH

9 - STARTER CLUTCH

10 - CAM SHAFT - VALVE

10 - CAM SHAFT - VALVE

12B - CARBURETOR (MODEL V/W/X)

12B - CARBURETOR (MODEL V/W/X)

13A - CARBURETOR FITTINGS (MODEL T/V/W/X)

13A - CARBURETOR FITTINGS (MODEL T/V/W/X)

14 - AIR CLEANER

14 - AIR CLEANER

16 - OIL COOLER

16 - OIL COOLER

17 - SECOND AIR (E18)

17 - SECOND AIR (E18)

19 - TRANSMISSION

19 - TRANSMISSION

20 - GEAR SHIFTING

20 - GEAR SHIFTING

22 - ALTERNATOR

22 - ALTERNATOR

35A - FUEL TANK (MODEL V/W/X)

35A - FUEL TANK (MODEL V/W/X)

21 - STARTING MOTOR

21 - STARTING MOTOR

23 - SIGNAL GENERATOR

23 - SIGNAL GENERATOR

25 - ELECTRICAL

25 - ELECTRICAL

26A - SPEEDOMETER (MODEL T/V/W/X)

26A - SPEEDOMETER (MODEL T/V/W/X)

27 - HEADLAMP (GSF600S/US)

27 - HEADLAMP (GSF600S/US)

27A - HEADLAMP (GSF600T/V/W/X/UT/UV/UW/UX)

27A - HEADLAMP (GSF600T/V/W/X/UT/UV/UW/UX)

27B - HEADLAMP (GSF600ST/SV/SW/SX/SUT/SUV/SUW/SUX)

27B - HEADLAMP (GSF600ST/SV/SW/SX/SUT/SUV/SUW/SUX)

27C - HEADLAMP (GSF600ST/SV/SW/SX E24)

27C - HEADLAMP (GSF600ST/SV/SW/SX E24)

28A - TURN SIGNAL LAMP (MODEL T/V/W/X)

28A - TURN SIGNAL LAMP (MODEL T/V/W/X)

28B - TURN SIGNAL LAMP (MODEL T/V/W/X E17)

28B - TURN SIGNAL LAMP (MODEL T/V/W/X E17)

30 - WIRING HARNESS

30 - WIRING HARNESS

31A - HANDLE SWITCH (MODEL V/W/X)

31A - HANDLE SWITCH (MODEL V/W/X)

32 - FRAME (GSF600S/US/T/UT)

32 - FRAME (GSF600S/US/T/UT)

32A - FRAME (GSF600ST/SUT)

32A - FRAME (GSF600ST/SUT)

32B - FRAME (MODEL V/W/X)

32B - FRAME (MODEL V/W/X)

33A - STAND (MODEL W/X)

33A - STAND (MODEL W/X)

37 - FRAME COVER (GSF600S/US/T/UT/V/UV)

37 - FRAME COVER (GSF600S/US/T/UT/V/UV)

37A - FRAME COVER (GSF600ST/SUT/SV/SUV)

37A - FRAME COVER (GSF600ST/SUT/SV/SUV)

37B - FRAME COVER (GSF600W/UW)

37B - FRAME COVER (GSF600W/UW)

37C - FRAME COVER (GSF600SW/SUW)

37C - FRAME COVER (GSF600SW/SUW)

37D - FRAME COVER (GSF600X/UX)

37D - FRAME COVER (GSF600X/UX)

37E - FRAME COVER (GSF600SX/SUX)

37E - FRAME COVER (GSF600SX/SUX)

38 - FRONT FENDER (GSF600S/US/T/UT/V/UV/W/UW/X/UX)

38 - FRONT FENDER (GSF600S/US/T/UT/V/UV/W/UW/X/UX)

38A - FRONT FENDER (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

38A - FRONT FENDER (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

39A - HANDLEBAR (MODEL T/V/W/X)

39A - HANDLEBAR (MODEL T/V/W/X)

40 - HANDLE LEVER

40 - HANDLE LEVER

41A - REAR FENDER (MODEL T/V/W/X)

41A - REAR FENDER (MODEL T/V/W/X)

42 - COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

42 - COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

43 - COWLING BRACE (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

43 - COWLING BRACE (GSF600ST/SUT/SV/SUV/SW/SUW/SX/SUX)

44A - LABEL (MODEL T/V/W/X)

44A - LABEL (MODEL T/V/W/X)

45A - SEAT (MODEL T/V/W/X)

45A - SEAT (MODEL T/V/W/X)

46 - RIDER HANDLE

46 - RIDER HANDLE

53 - REAR SWINGING ARM

53 - REAR SWINGING ARM

47 - FRONT DAMPER

47 - FRONT DAMPER

48 - STEERING STEM

48 - STEERING STEM

49 - FRONT WHEEL

49 - FRONT WHEEL

50 - FRONT CALIPERS

50 - FRONT CALIPERS

51 - FRONT BRAKE HOSE

51 - FRONT BRAKE HOSE

52 - FRONT MASTER CYLINDER

52 - FRONT MASTER CYLINDER

54 - REAR CUSHION LEVER

54 - REAR CUSHION LEVER

55 - REAR WHEEL

55 - REAR WHEEL

56 - REAR CALIPER

56 - REAR CALIPER

57 - REAR MASTER CYLINDER

57 - REAR MASTER CYLINDER
