Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 600 Bandit SUZUKI GSF600 X Bandit SUZUKI (VIN: JS1GN77A) 37C - FRAME COVER (GSF600SW/SUW)

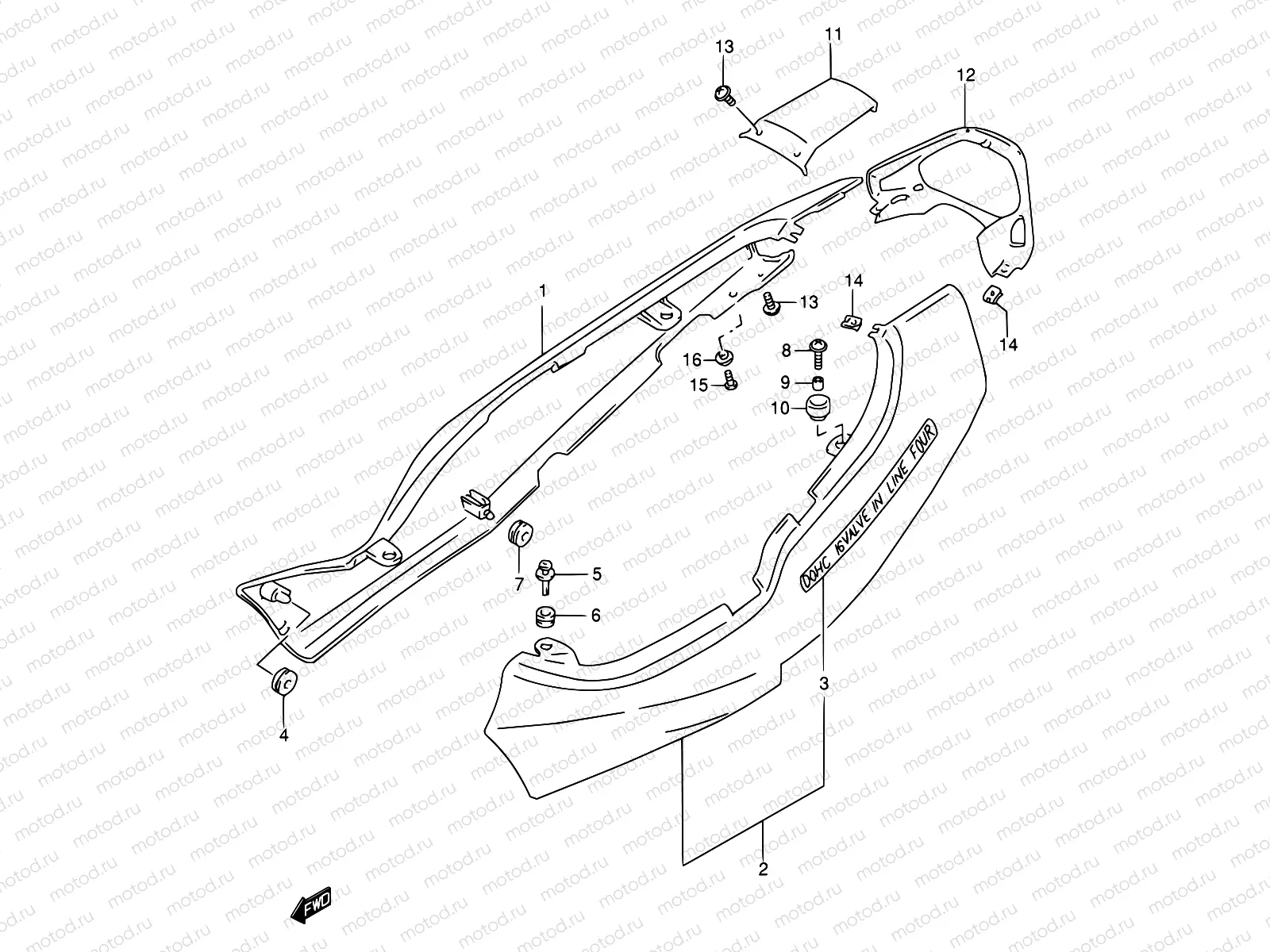

37C - FRAME COVER (GSF600SW/SUW)

37C - FRAME COVER (GSF600SW/SUW)

Например: 47110-26E30-Y0V

1

47110-26E30-Y0V

Cover comp,fram

19 394 ₽/шт

1

47110-26E50-33J

Cover,frame,r.

1

47111-26E13

COVER,FRAME,R (UNPAINTED)

10 674 ₽/шт

2

47210-26E30-Y0V

Cover,frame,l.

2

47210-26E50-33J

Cover,frame,l.

2

47210-26E30-Y3H

Cover,frame,l

3

68131-26E30-24G

MBLEM,FRAME COVER

4 590 ₽/шт

3

68131-26E30-13L

MBLEM,FRAME COVER

1 087 ₽/шт

3

68131-26E30-0FP

mblem (Silver)

4

47161-21E01

Damper

5

09409-10306

ХОМУТ МАЛЫЙ

179 ₽/шт

6

09320-10501

САЙЛЕНТБЛОК

321 ₽/шт

7

09320-08527

Cushion

1 640 ₽/шт

8

09136-06105

Болт

129 ₽/шт

9

09180-06286

Кольцо/шайба

162 ₽/шт

10

09320-10045

CUSHION

210 ₽/шт

11

47311-26E00

COVER, FRAME CENTER (BROWN)

11

47311-26E00-33J

Cover,frame,cen

11

47311-26E00-Y3H

Cover, frame center (orange)

12

47331-26E00-291

COVER,FRAME RR

8 197 ₽/шт

13

03241-1512B

Болт

82 ₽/шт

14

09148-05020

Гайка

97 ₽/шт

15

02142-0616A

Болт

81 ₽/шт

16

09161-05017-LCP

Rondelle
