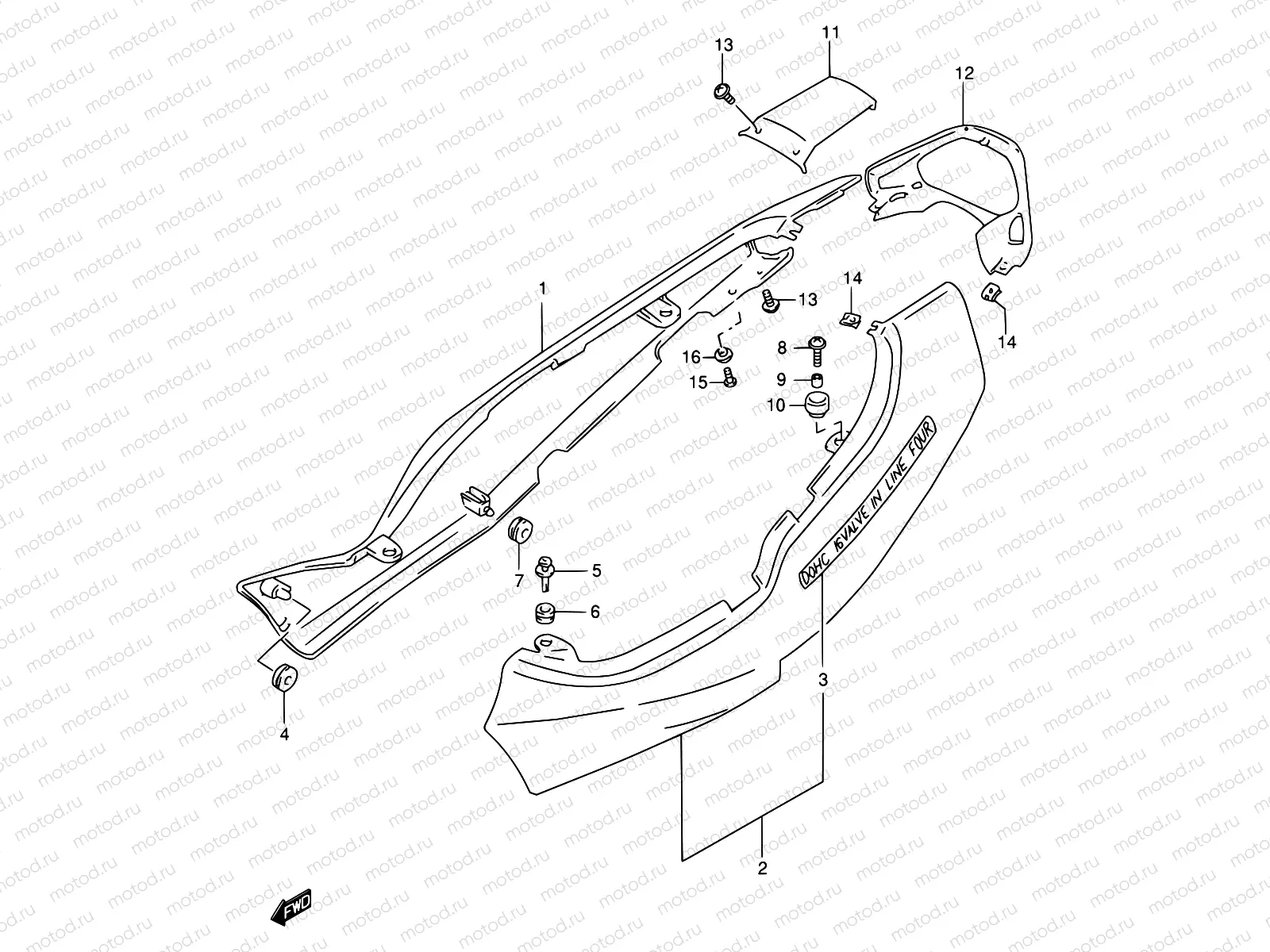

37E - FRAME COVER (GSF600SX/SUX)

37E - FRAME COVER (GSF600SX/SUX)

Например: 47110-26E50-33J

1

47110-26E50-33J

Cover,frame,r.

1

47110-26E30-Y0W

Cover comp,fram

19 394 ₽/шт

1

47110-26E30-Y7H

Cover,frame,r

2

47210-26E50-33J

Cover,frame,l.

2

47210-26E30-Y0W

Cover, frame lh (orange)

2

47210-26E30-Y7H

COVER,FRAME,L(BLUE)

19 394 ₽/шт

3

68131-26E30-24G

MBLEM,FRAME COVER

4 590 ₽/шт

3

68131-26E30-13L

MBLEM,FRAME COVER

1 087 ₽/шт

4

47161-21E01

Damper

5

09409-10306

ХОМУТ МАЛЫЙ

179 ₽/шт

6

09320-10501

САЙЛЕНТБЛОК

321 ₽/шт

7

09320-08527

Cushion

1 640 ₽/шт

8

09136-06105

Болт

129 ₽/шт

9

09180-06286

Кольцо/шайба

162 ₽/шт

10

09320-10045

CUSHION

210 ₽/шт

11

47311-26E00-33J

Cover,frame,cen

11

47311-26E00-Y0W

COVER,FRAME,CENTER

11

47311-26E00-Y7H

Cover,frame,cen

12

47331-26E00-291

COVER,FRAME RR

8 197 ₽/шт

13

03241-1512B

Болт

82 ₽/шт

14

09148-05020

Гайка

97 ₽/шт

15

02142-0616A

Болт

81 ₽/шт

16

09161-05017-LCP

Rondelle
