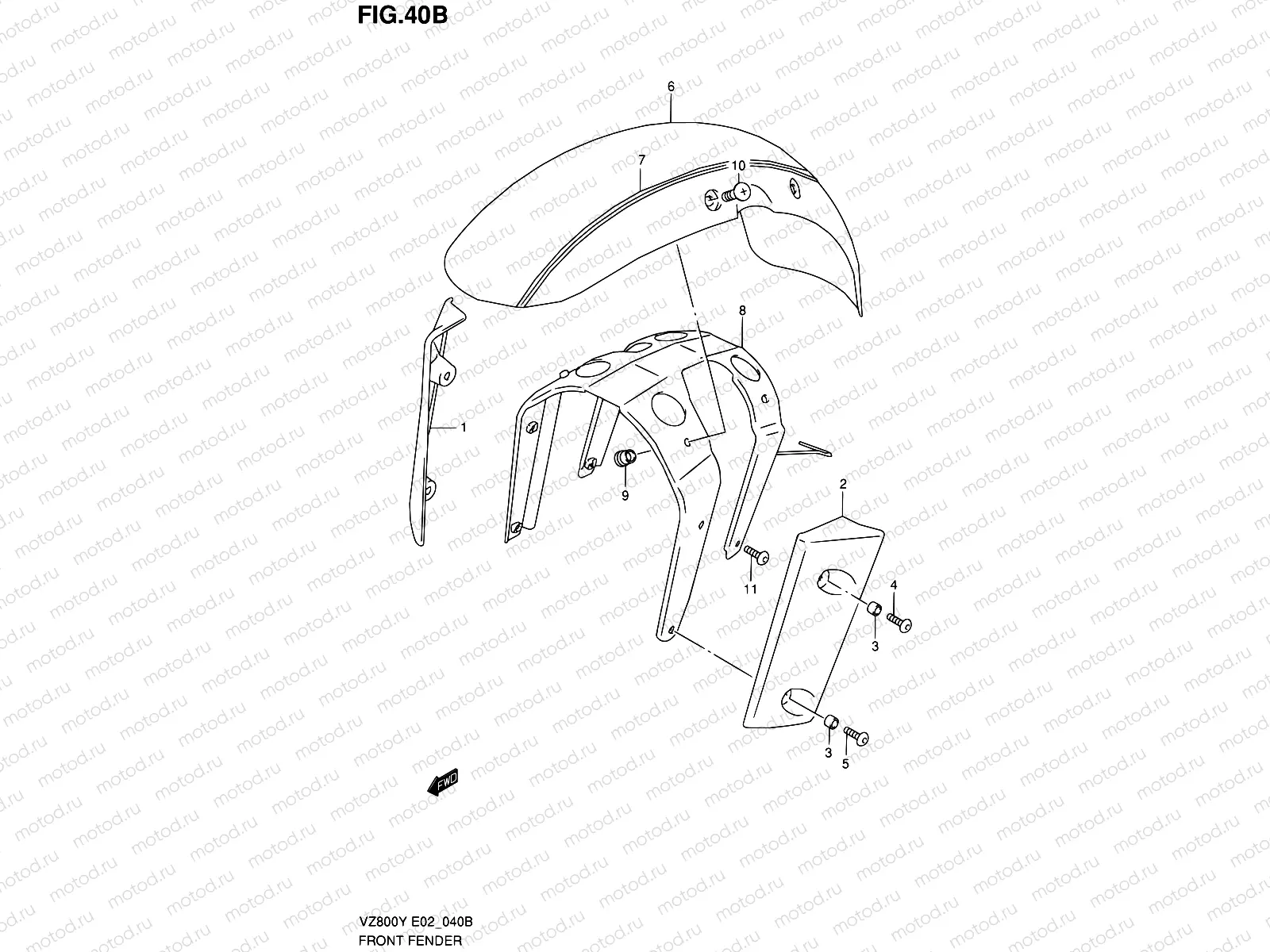

40B - FRONT FENDER (MODEL X)

40B - FRONT FENDER (MODEL X)

Например: 51881-48E01

1

51881-48E01

COVER,FR FORK SIDE,R

7 234 ₽/шт

2

51882-48E01

COVER,FR FORK SIDE,L

7 234 ₽/шт

3

09180-06245

SPACER(6.1X8X3.5)

162 ₽/шт

4

09139-06027

Винт (6х12)

194 ₽/шт

5

09139-06028

SCREW(6X20)

194 ₽/шт

6

53110-48E80-E6R

FENDER COMP,FRONT

6

53110-48E80-E9N

FENDER COMP,FRONT

6

53110-48E80-G7U

FENDER COMP,FRONT

6

53110-48E80-L9Z

Front mudguard

7

68150-48E30-M1Y

.tape set, front fender

7

68150-48E30-H0G

Tape set,front

7

68150-48E30-M1Z

.tape set, front fender

7

68150-48E30-L9Z

.tape set, front fender

8

53120-48E00

Brace,fr.fender

9

53122-33D00

Гайка

516 ₽/шт

10

09139-06027

Винт (6х12)

194 ₽/шт

11

09139-06030

Винт (6X16)

194 ₽/шт
